Produktbeskrivning

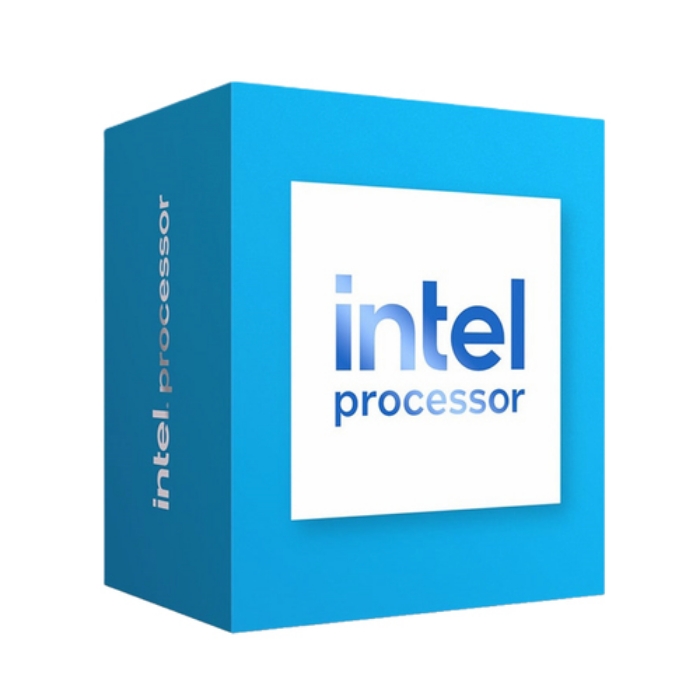

Intel Processor 300 (6M Cache, up to 3.90 GHz) FC-LGA16A



Viktiga egenskaper

Intel 300. Processor family: Intel Processor 300, Processor socket: LGA 1700, Package type: Box. Memory channels: Dual-channel, Maximum internal memory supported by processor: 192 GB, Memory types supported by processor: DDR4-SDRAM, DDR5-SDRAM. On-board graphics card model: Intel UHD Graphics 710, On-board graphics card outputs supported: Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1, On-board graphics card base frequency: 300 MHz. Market segment: Desktop, Use conditions: PC/Client/Tablet, PCI Express slots version: 4.0, 5.0. Processor package size: 45 x 37.5 mm



Teknisk specifikation

Processor manufacturer	Intel
Processor family	Intel Processor 300
Processor model	300
Processor cores	2
Processor socket	LGA 1700
Cooler included	Yes
Processor threads	4
Processor operating modes	64-bit
Performance cores	2
Efficient cores	0
Performance-core base frequency	3.9 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Processor base power	46 W
Stepping	H0
Maximum number of DMI lanes	8
Memory bandwidth supported by processor (max)	76.8 GB/s
Processor codename	Raptor Lake
Processor ARK ID	236846

Maximum internal memory supported by processor	192 GB
Memory types supported by processor	DDR4-SDRAM,DDR5-SDRAM
Memory channels	Dual-channel
Memory bandwidth (max)	76.8 GB/s

Discrete graphics card	No
On-board graphics card	Yes
On-board graphics card model	Intel UHD Graphics 710
On-board graphics card outputs supported	Embedded DisplayPort (eDP) 1.4b,DisplayPort 1.4a,HDMI 2.1
On-board graphics card dynamic frequency (max)	1450 MHz
On-board graphics card base frequency	300 MHz
Number of displays supported (on-board graphics)	4
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
On-board graphics card maximum resolution (DisplayPort)	7680 x 4320 pixels
On-board graphics card maximum resolution (eDP - Integrated Flat Panel)	5120 x 3200 pixels
On-board graphics card maximum resolution (HDMI)	4096 x 2160 pixels
On-board graphics card refresh rate at maximum resolution (HDMI)	60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)	120 Hz
On-board graphics card refresh rate at maximum resolution (DisplayPort)	60 Hz
On-board graphics card ID	0x4693
Discrete graphics card model	Not available
Number of execution units	16
Multi-Format Codec Engines	1

Execute Disable Bit	Yes
Idle States	Yes
Thermal Monitoring Technologies	Yes
Market segment	Desktop
Use conditions	PC/Client/Tablet
Maximum number of PCI Express lanes	20
PCI Express slots version	4.0,5.0
PCI Express configurations	1x16+1x4,2x8+1x4
Supported instruction sets	AVX 2.0,SSE4.1,SSE4.2
CPU configuration (max)	1
Thermal solution specification	PCG 2020C
Scalability	1S
Direct Media Interface (DMI) Revision	4.0
Embedded options available	No
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	740.17B1

Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Quick Sync Video Technology	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Speed Shift Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0	Yes
Intel® Control-flow Enforcement Technology (CET)	Yes
Intel® Thread Director	No
Intel® OS Guard	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® Standard Manageability (ISM)	Yes
Intel® Volume Management Device (VMD)	Yes
Intel® Secure Key	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel 64	Yes
Mode-based Execute Control (MBE)	Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU	Yes
Intel® Boot Guard	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Tjunction	100 °C

Package type	Box

OpenCL version	3.0
Status	Launched
Launch date	Q1'24

Harmonized System (HS) code	8542310001

Processor package size	45 x 37.5 mm

Maximum internal memory	192 GB
L2 cache	2560 KB
Graphics output	eDP 1.4b, DP 1.4a, HDMI 2.1
