Produktbeskrivning

Is your data center constantly challenged to deliver increased security and reliability in a cost-effective and scalable solution for your network bandwidth?

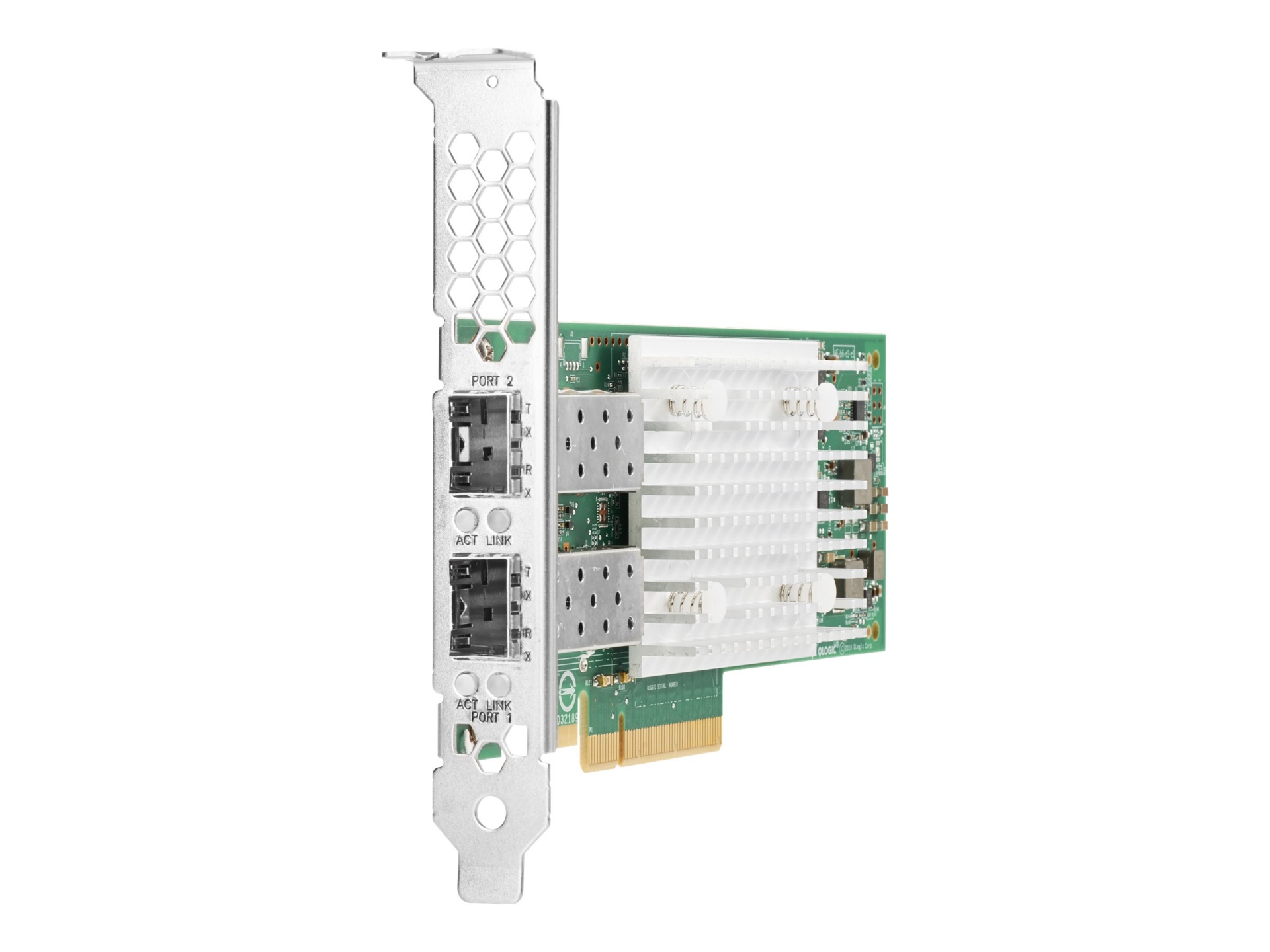

The HPE Gen10 Plus Ethernet Adapters are 1Gb, 10Gb, 10/25Gb and 100Gb Ethernet solutions that are scalable and compatible with HPE Gen10 Plus servers for hybrid cloud services, mobile data and streaming video applications. Your server is the foundation of your data center, but it doesn't work alone. When one link in your component chain slows down, so does the rest of your operation. Keep your network and data flowing with a seamless ecosystem of HPE servers, networking adapters, transceivers, cables, and switches.



Egenskaper

Better performance
HPE Gen10 Plus Ethernet Adapters are engineered for an assortment of bandwidths and latency sensitive applications. Reduces CPU utilization with support for a variety of I/O offloads including RDMA and Tunneling.

Reliability and security
HPE Gen10 Plus Ethernet Adapters authenticate updates for NICs that signed firmware is correct and trusted to reduce rogue firmware installation. Protect applications, data, and server infrastructure by authenticating digitally-signed firmware via a root of trust architecture.



Teknisk specifikation

Typ av enhet	Nätverksadapter
Formfaktor	Instickskort
Gränssnittstyp (buss)	PCI Express 3.0 x8
Version av PCI-specifikation	PCIe 3.0

Portar	10 Gigabit SFP+ x 2
Anslutningsteknik	Kabelansluten
Datalänkprotokoll	Gigabit Ethernet, 10 Gigabit Ethernet
Dataöverföringshastighet	10 Gbps
Nätverks/transportprotokoll	TCP/IP, UDP/IP, iSCSI, SMB
Statusindikatorer	Portöverföringshastighet, länk/akvititet
Funktioner	Flödeskontroll, paketfiltrering, stöd för IPv6, TCP/IP-avlastning, IPv4-support, PXE-support, Large Send Offload (LSO), Receive Side Scaling (RSS), UEFI-support, Single Root I/O Virtualization (SR-IOV), TCP Segmentation Offload (TSO), checksumme-offloadsupport, UDP/IP-offloading, iSCSI-start, Network Virtualization using Generic Routing Encapsulation (NVGRE), Data Plane Development Kit (DPDK), tunnelavlastning, GENEVE-support, VMQueue

Processor	1 x Intel X710-BM2

Gränssnitt	2 x 1Gb Ethernet/10Gb Ethernet - SFP+

Energiförbrukning vid drift	3.3 Watt

Designat för

HPE Nimble Storage dHCI Medium Solution with HPE ProLiant DL325 Gen10 Plus HPE ProLiant DL325 Gen10 Plus, DL325 Gen10 Plus All-NVMe Flash Node for Qumulo, DL325 Gen10 Plus All-NVMe Flash Node for Software Defined Storage, DL325 Gen10 Plus for Weka BAse Tracking, DL325 Gen10 Plus for Weka Expansion Tracking, DL325 Gen10 Plus V2, DL325 Gen10 Plus V2 Base, DL325 Gen10 Plus V2 for Weka Base Tracking, DL325 Gen10 Plus V2 Performance, DL345 Gen10 Plus Base, DL360 Gen10 Plus, DL360 Gen10 Plus All-NVMe Server for Software Defined Storage, DL365 Gen10 Plus, DL380 Gen10 Plus, DL380 Gen10 Plus Network Choice, DL385 Gen10 Plus, DL385 Gen10 Plus Entry, ML30 Gen10 Plus, ML30 Gen10 Plus Entry, ML30 Gen10 Plus Performance, XL645d Gen10 Plus
