Produktbeskrivning

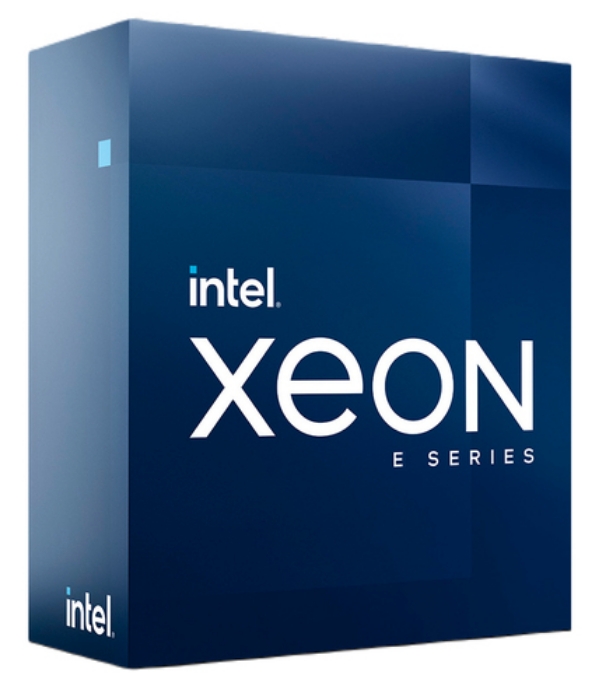

Boxed Intel Xeon E-2414 Processor (12M Cache, 2.60 GHz) FC-LGA16A



Viktiga egenskaper

Intel Xeon E-2414. Processor family: Intel Xeon E, Processor socket: LGA 1700, Package type: Box. Memory channels: Dual-channel, Maximum internal memory supported by processor: 128 GB, Memory types supported by processor: DDR5-SDRAM. Market segment: Server, Use conditions: Server/Enterprise, PCI Express configurations: 2x8+1x4, 1x16+1x4. Intel® Turbo Boost Technology 2.0 frequency: 4.5 GHz, Microprocessor PCIe Revision: Gen 5. Maximum internal memory: 128 GB



Teknisk specifikation

Processor manufacturer	Intel
Processor family	Intel Xeon E
Processor model	E-2414
Processor base frequency	2.6 GHz
Processor cores	4
Processor socket	LGA 1700
Processor threads	4
System bus rate	16 GT/s
Processor operating modes	64-bit
Performance cores	4
Processor boost frequency	4.5 GHz
Processor cache	12 MB
Thermal Design Power (TDP)	55 W
Stepping	B0
Maximum number of DMI lanes	8
Processor codename	Raptor Lake
Processor ARK ID	236193

Maximum internal memory supported by processor	128 GB
Memory types supported by processor	DDR5-SDRAM
Memory channels	Dual-channel
ECC	Yes

On-board graphics card	No
Discrete graphics card	No
On-board graphics card model	Not available
Discrete graphics card model	Not available

Execute Disable Bit	Yes
Idle States	Yes
Thermal Monitoring Technologies	Yes
Market segment	Server
Use conditions	Server/Enterprise
Maximum number of PCI Express lanes	20
PCI Express slots version	5.0
PCI Express configurations	2x8+1x4,1x16+1x4
Supported instruction sets	AVX 2.0,SSE4.1,SSE4.2
Embedded options available	No
Scalability	1S
CPU configuration (max)	1
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	740.17B1

Enhanced Intel SpeedStep Technology	Yes
Intel Trusted Execution Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Turbo Boost Technology	2.0
Intel® Turbo Boost Technology 2.0 frequency	4.5 GHz
Intel® Transactional Synchronization Extensions	No
Intel® Total Memory Encryption	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® Secure Key	Yes
Intel® OS Guard	Yes
Intel® Virtualization Technology with Redirect Protection (VT-rp)	Yes
Intel 64	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® Optane™ DC Persistent Memory Supported	No
Mode-based Execute Control (MBE)	Yes
Intel Turbo Boost Max Technology 3.0	No
Intel® Boot Guard	Yes
Microprocessor PCIe Revision	Gen 5
Intel® Total Memory Encryption - Multi Key	Yes

Tjunction	100 °C

Package type	Box

Harmonized System (HS) code	8542310001

Launch date	Q4'23
Status	Launched
Servicing status	Baseline Servicing

Maximum internal memory	128 GB
