Produktbeskrivning

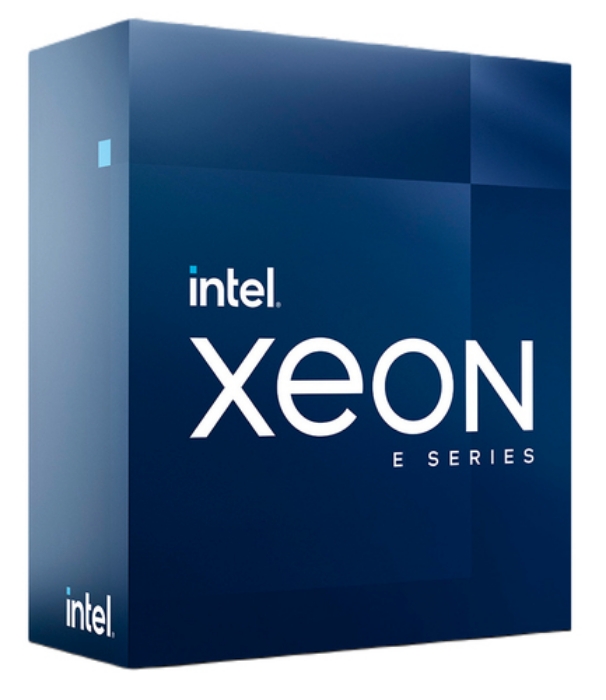

Boxed Intel Xeon E-2436 Processor (18M Cache, 2.90 GHz) FC-LGA16A



Viktiga egenskaper

Intel Xeon E-2436. Processor family: Intel Xeon E, Processor socket: LGA 1700, Package type: Box. Memory channels: Dual-channel, Maximum internal memory supported by processor: 128 GB, Memory types supported by processor: DDR5-SDRAM. Market segment: Server, Use conditions: Server/Enterprise, Supported instruction sets: AVX 2.0, SSE4.1, SSE4.2. Intel® Turbo Boost Technology 2.0 frequency: 5 GHz, Microprocessor PCIe Revision: Gen 5. Maximum internal memory: 128 GB



Teknisk specifikation

Processor manufacturer	Intel
Processor family	Intel Xeon E
Processor model	E-2436
Processor base frequency	2.9 GHz
Processor cores	6
Processor socket	LGA 1700
Processor threads	12
System bus rate	16 GT/s
Processor operating modes	64-bit
Performance cores	6
Processor boost frequency	5 GHz
Processor cache	18 MB
Thermal Design Power (TDP)	65 W
Stepping	B0
Maximum number of DMI lanes	8
Processor codename	Raptor Lake
Processor ARK ID	236190

Maximum internal memory supported by processor	128 GB
Memory types supported by processor	DDR5-SDRAM
Memory channels	Dual-channel
ECC	Yes

Discrete graphics card	No
On-board graphics card	No
On-board graphics card model	Not available
Discrete graphics card model	Not available

Idle States	Yes
Execute Disable Bit	Yes
Thermal Monitoring Technologies	Yes
Market segment	Server
Use conditions	Server/Enterprise
Maximum number of PCI Express lanes	20
PCI Express slots version	5.0
Supported instruction sets	AVX 2.0,SSE4.1,SSE4.2
Embedded options available	No
Scalability	1S
CPU configuration (max)	1
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	740.17B1

Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel Trusted Execution Technology	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel® Turbo Boost Technology 2.0 frequency	5 GHz
Intel® Transactional Synchronization Extensions	No
Intel® Total Memory Encryption	Yes
Intel Turbo Boost Max Technology 3.0	No
Intel® Optane™ DC Persistent Memory Supported	No
Intel® OS Guard	Yes
Mode-based Execute Control (MBE)	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® Virtualization Technology with Redirect Protection (VT-rp)	Yes
Intel® Secure Key	Yes
Intel® Boot Guard	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Microprocessor PCIe Revision	Gen 5
Intel® Total Memory Encryption - Multi Key	Yes

Tjunction	100 °C

Package type	Box

Harmonized System (HS) code	8542310001

Status	Launched
Launch date	Q4'23
Servicing status	Baseline Servicing

Maximum internal memory	128 GB
