Produktbeskrivning

Intel® Turbo Boost Technology
Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.

Intel® Hyper-Threading Technology
Intel® Hyper-Threading Technology (Intel® HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.

Intel® Virtualization Technology (VT-x)
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.

Intel® Trusted Execution Technology
Intel® Trusted Execution Technology for safer computing is a versatile set of hardware extensions to Intel® processors and chipsets that enhance the digital office platform with security capabilities such as measured launch and protected execution. It enables an environment where applications can run within their own space, protected from all other software on the system.

Intel® 64
Intel® 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software.¹ Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.

Idle States
Idle States (C-states) are used to save power when the processor is idle. C0 is the operational state, meaning that the CPU is doing useful work. C1 is the first idle state, C2 the second, and so on, where more power saving actions are taken for numerically higher C-states.

Enhanced Intel SpeedStep® Technology
Enhanced Intel SpeedStep® Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep® Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep® Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.

Intel® Demand Based Switching
Intel® Demand Based Switching is a power-management technology in which the applied voltage and clock speed of a microprocessor are kept at the minimum necessary levels until more processing power is required. This technology was introduced as Intel SpeedStep® Technology in the server marketplace.

Execute Disable Bit
Execute Disable Bit is a hardware-based security feature that can reduce exposure to viruses and malicious-code attacks and prevent harmful software from executing and propagating on the server or network.

Intel® VT-x with Extended Page Tables (EPT)
Intel® VT-x with Extended Page Tables (EPT), also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Extended Page Tables in Intel® Virtualization Technology platforms reduces the memory and power overhead costs and increases battery life through hardware optimization of page table management.



Viktiga egenskaper

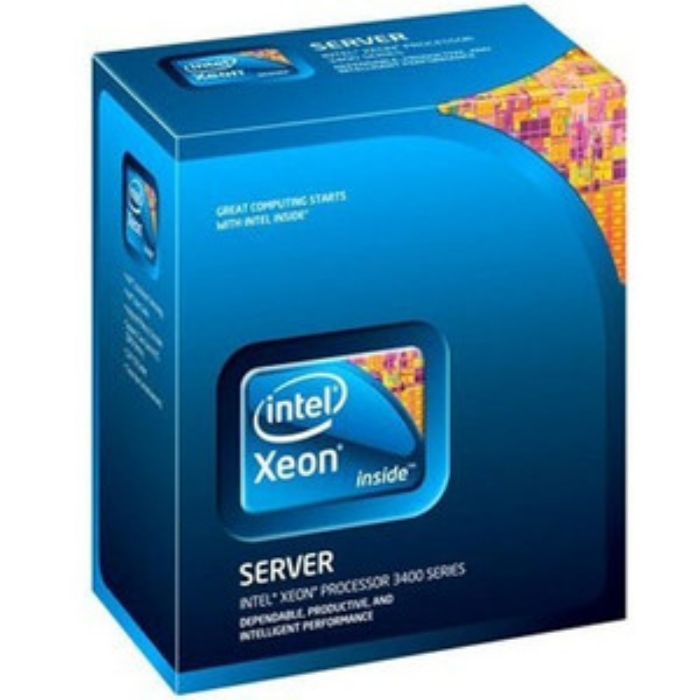

Intel Xeon L3406. Processor family: Intel® Xeon®, Processor socket: LGA 1156 (Socket H), Processor lithography: 32 nm. Memory channels: Dual-channel, Maximum internal memory supported by processor: 16 GB, Memory types supported by processor: DDR3-SDRAM. Market segment: Server, PCI Express configurations: 1x16, 2x8, Number of Processing Die Transistors: 382 M. Package width: 81 mm, Package depth: 114 mm, Package height: 102 mm. Processor package size: 37.5 x 37.5 mm



Teknisk specifikation

Processor manufacturer	Intel
Processor family	Intel® Xeon®
Processor model	L3406
Processor base frequency	2.26 GHz
Processor cores	2
Processor socket	LGA 1156 (Socket H)
Processor lithography	32 nm
Cooler included	Yes
Component for	Server/workstation
Processor series	Intel Xeon 3400 Series
Processor threads	4
System bus rate	2.5 GT/s
Processor operating modes	64-bit
Processor boost frequency	2.53 GHz
Processor cache	4 MB
Processor cache type	Smart Cache
Thermal Design Power (TDP)	30 W
VID Voltage Range	0.65 - 1.4 V
Compatible chipsets	Intel 3400,Intel 3420,Intel 3450
Stepping	C2
Bus type	DMI
CPU multiplier (bus/core ratio)	17
Memory bandwidth supported by processor (max)	17 GB/s
Processor codename	Clarkdale
Processor code	SLBQQ
Processor ARK ID	47555

Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066 MHz
Memory channels	Dual-channel
ECC	Yes

On-board graphics card	No

Thermal Monitoring Technologies	No
Execute Disable Bit	Yes
Idle States	Yes
Market segment	Server
Maximum number of PCI Express lanes	16
PCI Express slots version	2.0
PCI Express configurations	1x16,2x8
Number of Processing Die Transistors	382 M
Processing Die size	81 mm²
Number of Graphics & IMC Die Transistors	177 M
Graphics & IMC Die Size	114 mm²
Supported instruction sets	SSE4.2
CPU configuration (max)	1
Physical Address Extension (PAE)	Yes
PCI Express CEM revision	2.0
Embedded options available	No
Physical Address Extension (PAE)	36 bit
Graphics & IMC lithography	45 nm
Export Control Classification Number (ECCN)	3A991
Commodity Classification Automated Tracking System (CCATS)	NA

Enhanced Intel SpeedStep Technology	Yes
Intel Trusted Execution Technology	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	1.0
Intel 64	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Enhanced Halt State	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® vPro™ Platform Eligibility	No
Intel Demand Based Switching	Yes
Intel Virtualization Technology (VT-x)	Yes

Tcase	53.9 °C

Package width	81 mm
Package depth	114 mm
Package height	102 mm
Package weight	394 g
Package type	Box

Product type	Processor
Supported memory types	DDR3-SDRAM
Processor cache	4096 KB
Maximum memory	16.38 GB
Processor brand name	Intel® Xeon®
Last change	63903513
Bus type units	GT/s
Processor core voltage	0.6500-1.400 V
Bus bandwidth	2.5
Product family	Intel Xeon Processor 3000 Sequence
Bus speed	2.5 GT/s
Product name	Intel Xeon L3406 (4M Cache, 2.26 GHz)
Launch date	Q1'10
Status	Discontinued
Born on date	Q1'10

Harmonized System (HS) code	85423119

Processor package size	37.5 x 37.5 mm

Intel® Virtualization Technology (Intel® VT)	VT-d,VT-x
Maximum internal memory	16777 MB
Maximum internal memory	16.38 GB
Cache memory	4 MB
