Produktbeskrivning

Performance. Efficiency. Agility.
Intel’s newest dual-core processor for dual processor (DP) servers and workstations delivers a new level of energy-efficient performance from the innovative Intel® Core™ microarchitecture, optimized for low-power, dual-core, 64-bit computing.

Dual-core processing
Significant performance headroom, especially for multi-threaded applications, helps boost system utilization through virtualization and application responsiveness.

Intel® Core™ microarchitecture
Better performance on multiple application types and user environments at a substantially reduce power envelope.

Majority of SKUs at 65W
Significantly lower power (compared to previous generation) helps improve data center density and power/thermal operating costs.

Ultra-dense, ultra low-power SKUs at 40W
Low-voltage SKU available at reduced power envelopes will deliver even higher performance per watt — helps reduce power/thermal operating costs and improve data center density.

4 MB shared L2 cache
Increases efficiency of L2 cache-to-processor data transfers, maximizing main memory to processor bandwidth and reducing latency.
Entire L2 cache can be allocated to one core.

1066 and 1333 MHz system bus
Faster system bus speeds than previous generations for increased throughput.

Intel® Virtualization Technology
New processor hardware enhancements that support software-based virtualization, enabling migration of more environments — including 64-bit OSs and applications — to virtual environments.

Intel® Extended Memory 64 Technology (Intel® EM64T)
Flexibility for 64-bit and 32-bit applications and operating systems.

Enhanced Intel® Speedstep™ Technology
Helps reduce average system power consumption and potentially improves system acoustics.



Viktiga egenskaper

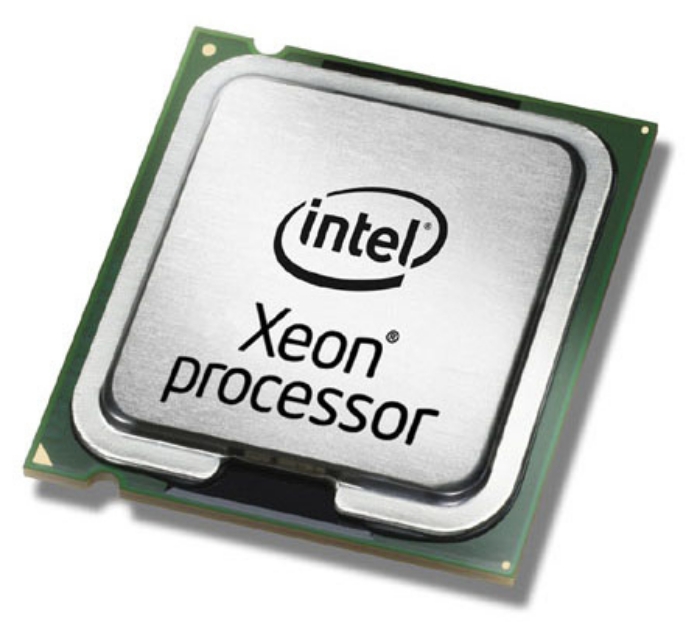

Intel Xeon L5420. Processor family: Intel® Xeon®, Processor socket: LGA 771 (Socket J), Processor lithography: 45 nm. Market segment: Server, Number of Processing Die Transistors: 820 M, Processing Die size: 214 mm². Processor package size: 37.5 x 37.5 mm. Intel® Virtualization Technology (Intel® VT): VT-x, Compatibility: Intel Server Board S5000VSA4DIMMR Intel Server Board S5000VSASASR Intel Server Board S5000XSLSATAR..., Cache memory: 12 MB



Teknisk specifikation

Processor manufacturer	Intel
Processor family	Intel® Xeon®
Processor model	L5420
Processor base frequency	2.5 GHz
Processor cores	4
Processor socket	LGA 771 (Socket J)
Processor lithography	45 nm
Cooler included	No
Component for	Server/workstation
Processor series	Intel Xeon 5400 Series
Processor threads	4
Processor operating modes	64-bit
Processor cache	12 MB
Processor cache type	L2
L2 cache speed	2.5 GHz
Processor front side bus	1333 MHz
Thermal Design Power (TDP)	50 W
VID Voltage Range	0.85 - 1.35 V
Compatible chipsets	Intel 5000P,Intel 5000V,Intel 5000X,Intel 5100,Intel 5400
FSB Parity	Yes
Stepping	E0
Bus type	FSB
CPU multiplier (bus/core ratio)	7.5
Processor codename	Harpertown
Processor ARK ID	33929

On-board graphics card	No

Thermal Monitoring Technologies	Yes
Execute Disable Bit	Yes
Idle States	Yes
Market segment	Server
Number of Processing Die Transistors	820 M
Processing Die size	214 mm²
Number of Graphics & IMC Die Transistors	820 M
Embedded options available	No
Export Control Classification Number (ECCN)	3A991.A.1
Commodity Classification Automated Tracking System (CCATS)	NA

Intel® Hyper Threading Technology (Intel® HT Technology)	No
Enhanced Intel SpeedStep Technology	Yes
Intel Trusted Execution Technology	No
Intel® Turbo Boost Technology	No
Intel 64	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel VT-x with Extended Page Tables (EPT)	No
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes

Maximum operating temperature	57 °C
Tcase	57 °C

Package type	Tray

Product type	Processor
Processor cache	12288 KB
Processor brand name	Intel® Xeon®
Bus type units	MHz
Last change	63903513
Bus speed	1333 MHz
Product family	Intel Xeon Processor 5000 Sequence
Born on date	Q1'08
Product name	Intel Xeon L5420 (12M Cache, 2.50 GHz, 1333 MHz FSB)
Processor core voltage	0.850-1.3500 V
Launch date	Q1'08
Bus bandwidth	1333
Status	Discontinued

Harmonized System (HS) code	8542310001

Processor package size	37.5 x 37.5 mm

Intel® Virtualization Technology (Intel® VT)	VT-x
Supplemental SKU	No
Cache memory	12 MB
Compatibility	Intel Server Board S5000VSA4DIMMR Intel Server Board S5000VSASASR Intel Server Board S5000XSLSATAR Intel Server Board S5000VSASATAR Intel Server Board S5000PSLROMBR Intel Server Board S5000PALR Intel Server Board S5000VSASCSIR
