Produktbeskrivning

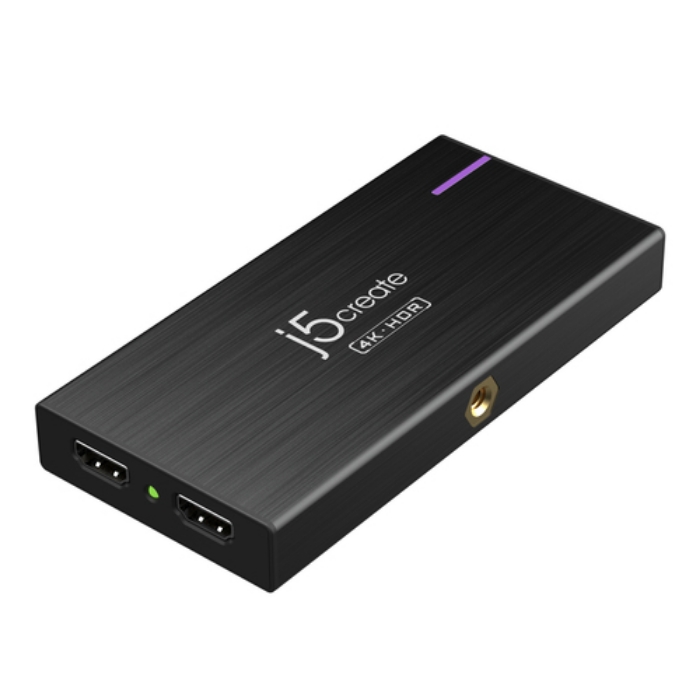

The JVA14 4K Game Capture Station is a capture device designed to stream and record your gameplay. It supports 4K @ 30 FPS video capture with 4K @ 60 FPS passthrough for consoles capable of 4K resolution. It has a 3.5 mm Audio In port and Mic In port allowing a headset to be connected for live commentary streaming on PlayStation™ 4 / 5, Xbox™ Series X / S, Xbox™ One X / S. It is fully compatible with OBS™ and other video streaming software, making it perfect for live streaming. The JVA14 is plug-and-play and compatible with macOS® and Windows® laptops and desktops.



Viktiga egenskaper

j5create JVA14-N 4K Game Capture Station. Product colour: Black, Host interface: USB 3.2 Gen 1 (3.1 Gen 1), Video capture resolution (max): 3840 x 2160 pixels. Supported resolutions: Maximum Capture Refresh Rate: 4K30 FPS, 2K60 FPS, 1080p120 FPS Maximum Passthrough Refresh Rate:..., Supported video modes: 1080p, 1440p, 2160p. USB connector type: USB Type-C, USB version: 3.2 Gen 1 (3.1 Gen 1). Power supply type: USB. Other operating systems supported: Android



Teknisk specifikation

Product colour	Black
Internal	No
Host interface	USB 3.2 Gen 1 (3.1 Gen 1)
Video capture resolution (max)	3840 x 2160 pixels
Memory card slot(s)	No
Capturing from	Digital camera,Game console,PC
Housing material	Aluminium
LED indicators	Power,USB
High Dynamic Range (HDR) supported	Yes
Plug and Play	Yes
Cable length	1 m
Country of origin	Taiwan
Compatible products	Available USB-C® or USB™ Type-A port (USB™ 3.2 / 3.0 is recommended)

Analog signal format system	Not supported
Supported resolutions	Maximum Capture Refresh Rate: 4K30 FPS, 2K60 FPS, 1080p120 FPS Maximum Passthrough Refresh Rate: 4K60 Hz HDR, 2K144 Hz HDR, 1080p240 Hz HDR Maximum Capture Capability: USB™ 3.0: 3840 x 2160@ 30 USB™ 2.0:1280 x720 @ 30
Supported video modes	1080p,1440p,2160p

USB port	Yes
USB connector type	USB Type-C
USB version	3.2 Gen 1 (3.1 Gen 1)
USB ports quantity	1
HDMI ports quantity	2
HDMI in	1
Number of HDMI outputs	1
Headphone outputs	1

Power supply type	USB

Windows operating systems supported	Yes
Mac compatibility	Yes
Mac operating systems supported	Yes
Other operating systems supported	Android

Minimum processor	CPU: Intel®Core™ i7 6700HQ& above. GPU: NVIDA®GTX960M & above
Minimum RAM	8000 MB

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 65 °C
Operating relative humidity (H-H)	0 - 80 %
Storage relative humidity (H-H)	0 - 85 %

Warranty period	2 year(s)

Width	134.6 mm
Depth	18.4 mm
Height	63.7 mm
Weight	142.5 g

Cables included	HDMI,USB Type-C to USB Type-A,USB Type-C to USB Type-C
Quick installation guide	Yes
Quantity	1

Package weight	371.5 g
Package height	70 mm
Package depth	75 mm
Package width	155 mm
Package type	Box
