Produktbeskrivning

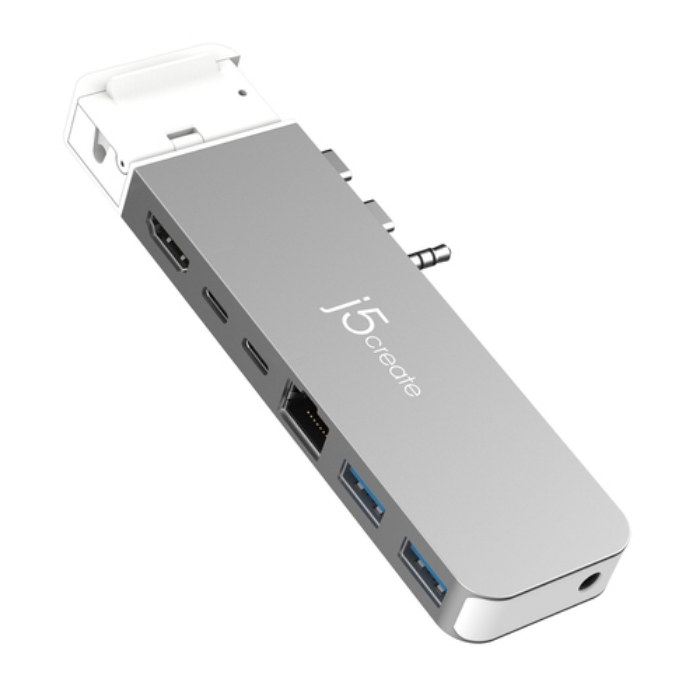

The 4K60 Elite Pro USB4® Hub with MagSafe® Kit expands your computer’s connectivity. Seamlessly connect peripherals such as a keyboard, mouse, or USB™ flash drive to this pocket-sized multi-adapter, which has two USB™ Type-A 3.2 Gen 2 ports and one USB-C® port. Data transfer is quick and easy with the included Gigabit Ethernet port to access a wired network. Transfer files from one media to another with the 10Gbps USB™ connections. You can use the HDMI™ port to connect to a 4K UHD HDTV, monitor, or projector.

Equipped with a USB4® port it provides 6K60 resolution, 40Gbps data transfer, and charging up to 100W of power for charging your computer when a USB-C® power adapter is connected. You can connect your headphones or speakers to the audio/mic combo jack. The MagSafe® dongle is a convenient way to store your original MacBook® MagSafe® charger. For Intel® MacBook® models, the audio/mic combo jack may be removed.



Viktiga egenskaper

j5create JCD395 4K60 Elite Pro USB4® Hub with MagSafe® Kit. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, White, Colour name: Space Grey / White, Maximum refresh rate: 60 Hz. Input current: 5 A, Output voltage: 20 V, Output current: 5 A. Width: 139 mm, Depth: 52 mm, Height: 16 mm



Teknisk specifikation

Connectivity technology	Wired
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB4 ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
HDMI ports quantity	1
Microphone in	Yes
Combo headphone/mic port	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
USB Type-C DisplayPort Alternate Mode	Yes

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s

Product colour	Grey,White
Colour name	Space Grey / White
Card reader integrated	No
Number of displays supported	2
Maximum refresh rate	60 Hz
Display modes	Extended,Mirror,Primary display
Hub weight	74 g
Plug and Play	Yes
Country of origin	Taiwan
Compatibility	MacBook Pro® with USB-C® ports Perfect for MacBook Pro® 2021 or later / MacBook Air® M2

Input current	5 A
Output voltage	20 V
Output current	5 A

Operating temperature (T-T)	-1 - 41 °C
Storage temperature (T-T)	-17 - 68 °C
Operating relative humidity (H-H)	0 - 85 %
Storage relative humidity (H-H)	0 - 85 %

Width	139 mm
Depth	52 mm
Height	16 mm
Weight	74 g

Quantity per pack	1 pc(s)
Package width	155 mm
Package depth	95 mm
Package height	25 mm
Package weight	141 g

Warranty period	2 year(s)

Master (outer) case height	190 mm
Master (outer) case width	230 mm
Master (outer) case length	435 mm
Products per shipping (inner) case	8 pc(s)
Master (outer) case gross weight	4900 g
Export Control Classification Number (ECCN)	EAR99
Products per master (outer) case	32 pc(s)
Shipping (inner) case width	103 mm
Shipping (inner) case length	218 mm
Shipping (inner) case height	165 mm

Special features	1 x USB4® port capable of the following: 1) 6K60 resolution display 2) 40Gbps data transmission 3) PD charging through up to 100W Max Display Resolution USB4®: 6016 x 3384 HDMI™: 3840 x 2160
Contents	1 - 4K60 Elite Pro USB4® Hub with MagSafe® Kit (JCD395) 2 - Silicone Pads 1 - Quick Installation Guide (QIG)
