Produktbeskrivning

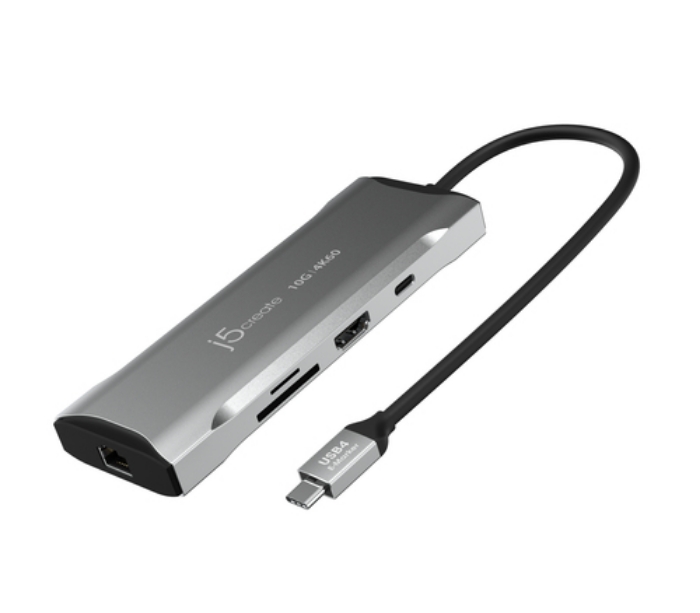

Featuring all the ports you need, the 4K60 Elite USB-C® 10Gbps Mini Dock is equipped with an advanced USB-C® E-Mark chip for compatibility with USB4™, Thunderbolt™ 3, and Thunderbolt™ 4 hosts and devices.
This USB-C® 10Gbps mini dock with DisplayPort™ 1.4 support lets you easily connect a 4K 60Hz display. It includes three USB™ SuperSpeed 10Gbps ports (1 USB-C® and 2 USB™ Type-A) for peripheral connectivity or downstream charging, an SD™ & microSD™ 4.0 memory card reader/writer to manage your media files, and a Gigabit Ethernet port to access a wired network.
The adapter also supports Power Delivery 3.0, which provides up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C® power adapter.
Viktiga egenskaper
j5create JCD393 4K60 Elite USB-C® 10Gbps Mini Dock, Space Grey. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, Colour name: Space Grey, Compatible memory cards: MicroSD (TransFlash), SD. Power source type: USB, Power connector: USB Type-C, Output voltage: 5 V. Width: 138 mm, Depth: 50 mm, Height: 16 mm
Teknisk specifikation
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
|---|
| USB 2.0 ports quantity | 0 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
|---|
| USB Power Delivery (USB PD) | Yes |
|---|
| USB Power Delivery revision | 3.0 |
|---|
| USB Power Delivery up to | 100 W |
|---|
| HDMI ports quantity | 1 |
|---|
| HDMI version | 2.0 |
|---|
| Microphone in | No |
|---|
| Headphone outputs | 0 |
|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|
Performance
| Product colour | Grey |
|---|
| Colour name | Space Grey |
|---|
| Card reader integrated | Yes |
|---|
| Compatible memory cards | MicroSD (TransFlash),SD |
|---|
| Data transfer rate | 10 Gbit/s |
|---|
| HD type | 4K Ultra HD |
|---|
| Maximum digital resolution | 3840 x 2160 pixels |
|---|
| Number of displays supported | 1 |
|---|
| Maximum refresh rate | 144 Hz |
|---|
| Display modes | Extended,Mirror,Primary display |
|---|
| Housing material | Aluminium |
|---|
| Plug and Play | Yes |
|---|
| Charging function | Yes |
|---|
| Country of origin | Taiwan |
|---|
| Compatibility | Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0 or 3.0 |
|---|
Power
| Power source type | USB |
|---|
| Power connector | USB Type-C |
|---|
| Output voltage | 5 V |
|---|
| Output current | 0.69 A |
|---|
| Power consumption (typical) | 3.48 W |
|---|
| USB cable length | 0.2 m |
|---|
Software
| Windows operating systems supported | Yes |
|---|
| Mac operating systems supported | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -17 - 68 °C |
|---|
| Operating relative humidity (H-H) | 0 - 85 % |
|---|
| Storage relative humidity (H-H) | 0 - 85 % |
|---|
Weight & dimensions
| Width | 138 mm |
|---|
| Depth | 50 mm |
|---|
| Height | 16 mm |
|---|
| Weight | 104 g |
|---|
Packaging data
| Quantity per pack | 1 pc(s) |
|---|
| Package width | 193 mm |
|---|
| Package depth | 125 mm |
|---|
| Package height | 22.5 mm |
|---|
| Package weight | 164 g |
|---|
Packaging content
| Manual | Yes |
|---|
| Quick start guide | Yes |
|---|
Technical details
| Master (outer) case GTIN (EAN/UPC) | 24712795086267 |
|---|
| Warranty period | 2 year(s) |
|---|
Logistics data
| Export Control Classification Number (ECCN) | EAR99 |
|---|
| Master (outer) case height | 190 mm |
|---|
| Master (outer) case length | 445 mm |
|---|
| Master (outer) case width | 226 mm |
|---|
| Master (outer) case gross weight | 4060 g |
|---|
| Products per shipping (inner) case | 6 pc(s) |
|---|
| Products per master (outer) case | 18 pc(s) |
|---|
| Shipping (inner) case width | 165 mm |
|---|
| Shipping (inner) case length | 212 mm |
|---|
| Shipping (inner) case height | 137 mm |
|---|
| Shipping (inner) case net weight | 1140 g |
|---|
Other features
| Special features | Built-in advanced USB-C® E-Mark integrates USB4™, Thunderbolt™ 3 and Thunderbolt™ 4 compatibility, Features a 4K HDMI™ output, supporting video resolutions up to 3840 x 2160 at 60 Hz |
|---|
