Produktbeskrivning
This compact multi-port adapter is ideal for travel, featuring everything from the essential HDMI™ output, USB™ ports to Gigabit Ethernet and 86W Power Delivery passthrough. It gives you the ability to connect your Chromebook™, MacBook®, or other USB-C® compatible laptops to a 4K monitor or TV with 60 Hz refresh rate and audio. With USB™ Power Delivery 3.0, you can charge your laptop and power your peripherals with a single USB-C® power adapter even if your laptop only has one USB-C® port. In addition, you can connect or charge your USB™ devices via the SuperSpeed USB™ 5Gbps ports and access a wired network through the Gigabit Ethernet port.
Through a single USB-C® (Thunderbolt™ 3 compatible) host cable, this compact adapter provides all the essential connectivity you need to create a workstation virtually anywhere!
Viktiga egenskaper

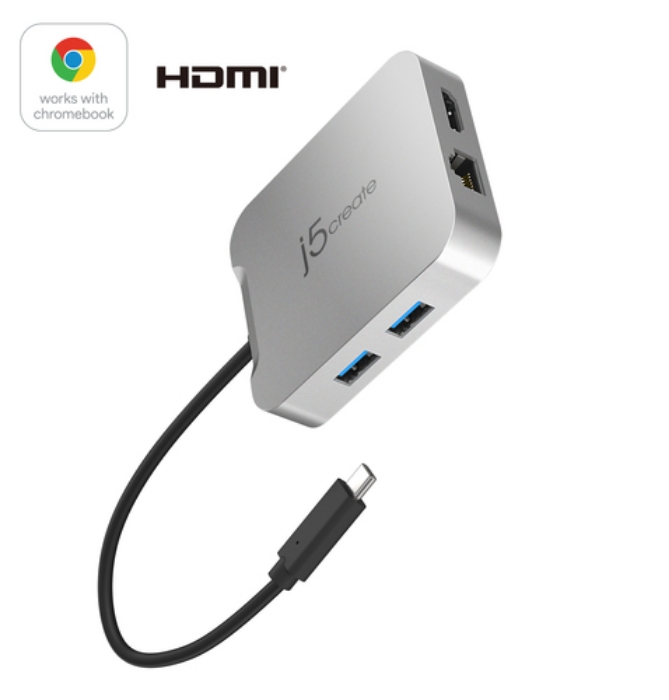

j5create JCD391 4K60 Elite USB-C® PD Multi-Port Adapter, Silver. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 85 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Silver, Data transfer rate: 5 Gbit/s, Maximum refresh rate: 60 Hz. Output voltage: 20 V, Output current: 0.4 A, Power consumption (typical): 2 W. Other operating systems supported: ChromeOS
Teknisk specifikation
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
|---|
| USB 2.0 ports quantity | 0 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
|---|
| USB Power Delivery (USB PD) | Yes |
|---|
| USB Power Delivery up to | 85 W |
|---|
| USB Power Delivery revision | 3.0 |
|---|
| HDMI ports quantity | 1 |
|---|
| Microphone in | No |
|---|
| Headphone outputs | 0 |
|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|
Performance
| Product colour | Silver |
|---|
| Card reader integrated | No |
|---|
| Data transfer rate | 5 Gbit/s |
|---|
| Maximum refresh rate | 60 Hz |
|---|
| Number of displays supported | 1 |
|---|
| Display modes | Extended,Mirror,Primary display |
|---|
| Plug and Play | Yes |
|---|
| Housing material | Aluminium |
|---|
| Country of origin | Taiwan |
|---|
| Compatibility | Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0 or 3.0. |
|---|
| Certification | Works with Chromebook |
|---|
Power
| Output current | 0.4 A |
|---|
| Output voltage | 20 V |
|---|
| Power consumption (typical) | 2 W |
|---|
| USB cable length | 0.2 m |
|---|
Software
| Windows operating systems supported | Yes |
|---|
| Mac operating systems supported | Yes |
|---|
| Other operating systems supported | ChromeOS |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -17 - 68 °C |
|---|
| Operating relative humidity (H-H) | 0 - 85 % |
|---|
| Storage relative humidity (H-H) | 0 - 85 % |
|---|
Weight & dimensions
| Width | 66.5 mm |
|---|
| Depth | 14.7 mm |
|---|
| Height | 77.6 mm |
|---|
| Weight | 74.8 g |
|---|
Packaging data
| Quantity per pack | 1 pc(s) |
|---|
| Package width | 155 mm |
|---|
| Package depth | 95 mm |
|---|
| Package height | 30.8 mm |
|---|
| Package weight | 129 g |
|---|
Packaging content
| Quick start guide | Yes |
|---|
| Manual | Yes |
|---|
| Cables included | USB Type-C |
|---|
Technical details
| Master (outer) case GTIN (EAN/UPC) | 24712795086373 |
|---|
| Warranty period | 2 year(s) |
|---|
Logistics data
| Master (outer) case length | 435 mm |
|---|
| Master (outer) case width | 230 mm |
|---|
| Master (outer) case height | 190 mm |
|---|
| Products per master (outer) case | 24 pc(s) |
|---|
| Products per shipping (inner) case | 6 pc(s) |
|---|
| Export Control Classification Number (ECCN) | EAR99 |
|---|
| Master (outer) case gross weight | 3880 g |
|---|
| Shipping (inner) case width | 103 mm |
|---|
| Shipping (inner) case length | 218 mm |
|---|
| Shipping (inner) case height | 165 mm |
|---|
| Shipping (inner) case net weight | 870 g |
|---|
Other features
| Special features | Chromebook™ Certified, 5-in-1 Functions, 86W of Pass-Through Charging |
|---|
