Produktbeskrivning
This compact multi-port adapter is ideal for travel, featuring everything from the essential HDMI™ output, USB™ ports to Gigabit Ethernet and 140W Power Delivery passthrough. It gives you the ability to connect your Chromebook™, MacBook®, or other USB-C® compatible laptops to a 4K monitor or TV with 60 Hz refresh rate and audio. With USB™ Power Delivery 3.1, you can charge your laptop and power your peripherals with a single USB-C® power adapter even if your laptop only has one USB-C® port. In addition, you can connect or charge your USB™ devices via the SuperSpeed USB™ 10Gbps ports and access a wired network through the Gigabit Ethernet port. Through a single USB-C® (Thunderbolt™ 3, 4, and USB4® compatible) host cable, this compact adapter provides all the essential connectivity you need to create a workstation virtually anywhere!
Viktiga egenskaper

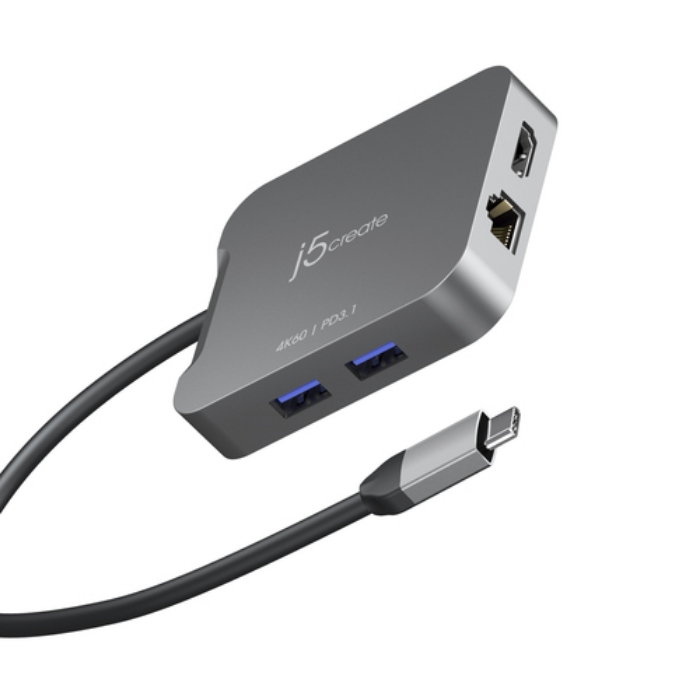

j5create JCD3191 4K60 Elite USB-C® Travel Adapter, Black. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 140 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, Colour name: Space Grey, Data transfer rate: 10 Gbit/s. Input current: 5 A, Output voltage: 28 V, Output current: 4.64 A. Width: 66.5 mm, Depth: 77.5 mm, Height: 14.7 mm
Teknisk specifikation
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
|---|
| USB 2.0 ports quantity | 0 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
|---|
| USB Power Delivery (USB PD) | Yes |
|---|
| USB Power Delivery revision | 3.1 |
|---|
| USB Power Delivery up to | 140 W |
|---|
| HDMI ports quantity | 1 |
|---|
| Microphone in | No |
|---|
| Combo headphone/mic port | No |
|---|
| Headphone outputs | 0 |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|
Performance
| Product colour | Grey |
|---|
| Colour name | Space Grey |
|---|
| Card reader integrated | No |
|---|
| Data transfer rate | 10 Gbit/s |
|---|
| HD type | 4K Ultra HD |
|---|
| Maximum digital resolution | 3840 x 2160 pixels |
|---|
| Maximum refresh rate | 240 Hz |
|---|
| Number of displays supported | 1 |
|---|
| Plug and Play | Yes |
|---|
| Housing material | Aluminium |
|---|
| Country of origin | Taiwan |
|---|
Power
| Input current | 5 A |
|---|
| Output voltage | 28 V |
|---|
| Output current | 4.64 A |
|---|
Software
| Windows operating systems supported | Yes |
|---|
| Mac operating systems supported | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | -1 - 41 °C |
|---|
Sustainability
| Sustainability compliance | Yes |
|---|
Weight & dimensions
| Width | 66.5 mm |
|---|
| Depth | 77.5 mm |
|---|
| Height | 14.7 mm |
|---|
| Weight | 71.5 g |
|---|
Packaging data
| Quantity per pack | 1 pc(s) |
|---|
| Package width | 190 mm |
|---|
| Package depth | 85 mm |
|---|
| Package height | 17.5 mm |
|---|
| Package weight | 130 g |
|---|
Technical details
| Warranty period | 2 year(s) |
|---|
| Master (outer) case GTIN (EAN/UPC) | 24712795087653 |
|---|
| Compliance certificates | CE,REACH,RoHS |
|---|
Logistics data
| Master (outer) case height | 115 mm |
|---|
| Master (outer) case width | 225 mm |
|---|
| Export Control Classification Number (ECCN) | EAR99 |
|---|
| Master (outer) case length | 256 mm |
|---|
| Products per master (outer) case | 12 pc(s) |
|---|
| Master (outer) case net weight | 2000 g |
|---|
| Products per shipping (inner) case | 6 pc(s) |
|---|
| Shipping (inner) case width | 125 mm |
|---|
| Shipping (inner) case length | 215 mm |
|---|
| Shipping (inner) case height | 92 mm |
|---|
| Shipping (inner) case net weight | 900 g |
|---|
Other features
| Cable length | 0.2 m |
|---|
