Produktbeskrivning

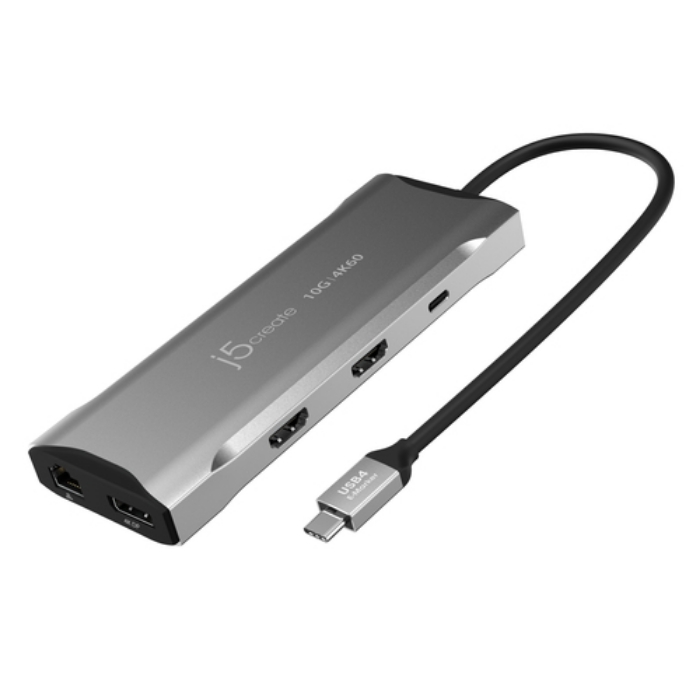

Equipped with an advanced USB-C® E-Mark chip, this multi-monitor mini dock is compatible with USB4™ hosts and devices, featuring everything you need, from triple video outputs to 10Gbps USB™ ports, as well as 100W Power Delivery pass-through charging.

This USB-C® mini dock supports DisplayPort™ 1.4 and Multi-Stream Transport (MST), giving you the ability to create a dual or triple 4K workstation with two HDMI™ and a DisplayPort™ output. It provides three USB™ SuperSpeed 10 Gbps ports (2 USB-C® and 1 USB™ Type-A) for peripheral connectivity or downstream charging, an SD™ & microSD™ 4.0 memory card reader/writer to manage your media files, and a Gigabit Ethernet port to access a wired network. It also supports Power Delivery 3.0, providing up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C® power adapter.



Viktiga egenskaper

j5create JCD397-N 4K60 Elite USB-C® Multi-Monitor Mini Dock. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, Colour name: Space Grey, Compatible memory cards: MicroSD (TransFlash), SD. Power source type: USB, Power connector: USB Type-C, Output voltage: 5 V. Width: 55 mm, Depth: 17 mm, Height: 148 mm



Teknisk specifikation

Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
USB Power Delivery revision	3.0
HDMI ports quantity	2
HDMI version	2.0
DisplayPorts quantity	1
DisplayPort version	1.4a
Microphone in	No
Headphone outputs	0
USB Type-C DisplayPort Alternate Mode	Yes

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s

Product colour	Grey
Colour name	Space Grey
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),SD
Data transfer rate	10 Gbit/s
HD type	4K Ultra HD
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	3
Maximum refresh rate	240 Hz
Display modes	Extended,Mirror,Primary display
Charging function	Yes
Plug and Play	Yes
Housing material	Aluminium
Country of origin	Taiwan
Compatibility	Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0 or 3.0. The host device must support Multi-Stream Transport (MST) and DisplayPort™ 1.4 to achieve triple-monitor configuration.

Power source type	USB
Power connector	USB Type-C
Output voltage	5 V
Output current	0.79 A
Power consumption (typical)	4.16 W
USB cable length	0.2 m

Windows operating systems supported	Yes
Mac operating systems supported	Yes

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-17 - 68 °C
Operating relative humidity (H-H)	0 - 85 %
Storage relative humidity (H-H)	0 - 85 %

Width	55 mm
Depth	17 mm
Height	148 mm
Weight	121.4 g

Quantity per pack	1 pc(s)
Package width	193 mm
Package depth	125 mm
Package height	22.5 mm
Package weight	151 g

Manual	Yes
Quick start guide	Yes
Cables included	USB Type-C

Master (outer) case GTIN (EAN/UPC)	24712795086328
Warranty period	2 year(s)

Master (outer) case height	190 mm
Master (outer) case length	445 mm
Master (outer) case width	226 mm
Products per master (outer) case	18 pc(s)
Master (outer) case gross weight	3800 g
Products per shipping (inner) case	6 pc(s)
Export Control Classification Number (ECCN)	EAR99
Shipping (inner) case width	165 mm
Shipping (inner) case length	212 mm
Shipping (inner) case height	137 mm
Shipping (inner) case net weight	1060 g

Special features	Built-in advanced USB-C® E-Mark integrates USB4™, Thunderbolt™ 3 and Thunderbolt™ 4 compatibility, Features a Dual 4K HDMI™ output, DP display output.
