Produktbeskrivning

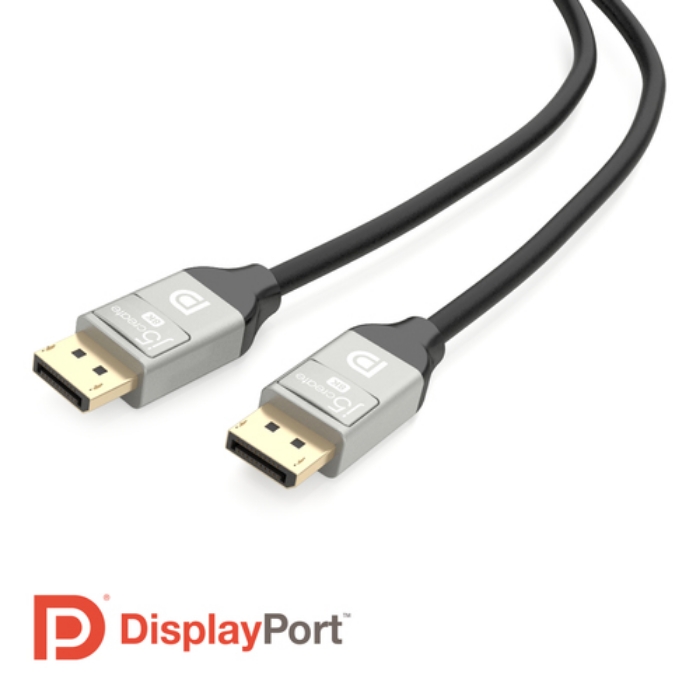

The JDC43 is an 8K DisplayPort™ cable that transmits both audio and video. DisplayPort™ v1.4 supports 8K UHD (7680 × 4320) at 60 Hz with 30 bit/px RGB color and HDR, or 4K UHD (4096 × 2160) at 120 Hz. It also supports 3D. The theoretical bandwidth is up to 32.4 Gbps.
The JDC43 features a tinned copper conductor and aluminum + braided shielding, giving you a stable picture without distortion. Its gold-plated connectors allow for a seamless connection & reliable transmission.
Latched connectors give the 8K DisplayPort™ cable a more secure connection. The JDC43 8K DisplayPort™ Cable allows you to connect a DisplayPort™ from a laptop, desktop or set-top box to a high-res monitor, HDTV or projector with DisplayPort™ input.
Viktiga egenskaper
j5create JDC43 8K DisplayPort™ Cable, Black and Grey, 2 m. Cable length: 2 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Weight: 156 g. Package width: 193 mm, Package depth: 125 mm, Package height: 39 mm. Quantity per pack: 1 pc(s). Export Control Classification Number (ECCN): EAR99, Warranty period: 2 year(s), Country of origin: Taiwan
Teknisk specifikation
Features
| Cable length | 2 m |
|---|
| Connector 1 | DisplayPort |
|---|
| Connector 2 | DisplayPort |
|---|
| Connector 1 gender | Male |
|---|
| Connector 2 gender | Male |
|---|
| Connector contacts plating | Gold |
|---|
| DisplayPort version | 1.4 |
|---|
| Maximum resolution | 7680 x 4320 pixels |
|---|
| Supported graphics resolutions | 1920 x 1080 (HD 1080),4096 x 2160,7680 x 4320 |
|---|
| Supported video modes | 1080p,2160p,4320p |
|---|
| Maximum refresh rate | 60 Hz |
|---|
| Latching connectors | Yes |
|---|
| Product colour | Black,Grey |
|---|
| Cable material | Copper |
|---|
| Cable shielding | Aluminum mylar foil |
|---|
| Number of shielding layers | 3 |
|---|
| Jacket material | Polyvinyl chloride (PVC) |
|---|
| Connector housing material | Plastic |
|---|
| AWG wire size | 28 |
|---|
| Data transfer rate | 32.4 Gbit/s |
|---|
| Country of origin | Taiwan |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
Packaging data
| Weight | 156 g |
|---|
| Quantity per pack | 1 pc(s) |
|---|
| Package width | 193 mm |
|---|
| Package depth | 125 mm |
|---|
| Package height | 39 mm |
|---|
| Package type | Box |
|---|
| Package weight | 210 g |
|---|
Technical details
| Warranty period | 2 year(s) |
|---|
| Master (outer) case GTIN (EAN/UPC) | 24712795082108 |
|---|
Logistics data
| Export Control Classification Number (ECCN) | EAR99 |
|---|
| Master (outer) case width | 280 mm |
|---|
| Master (outer) case length | 430 mm |
|---|
| Master (outer) case height | 235 mm |
|---|
| Master (outer) case gross weight | 5440 g |
|---|
| Products per master (outer) case | 18 pc(s) |
|---|
