Produktbeskrivning

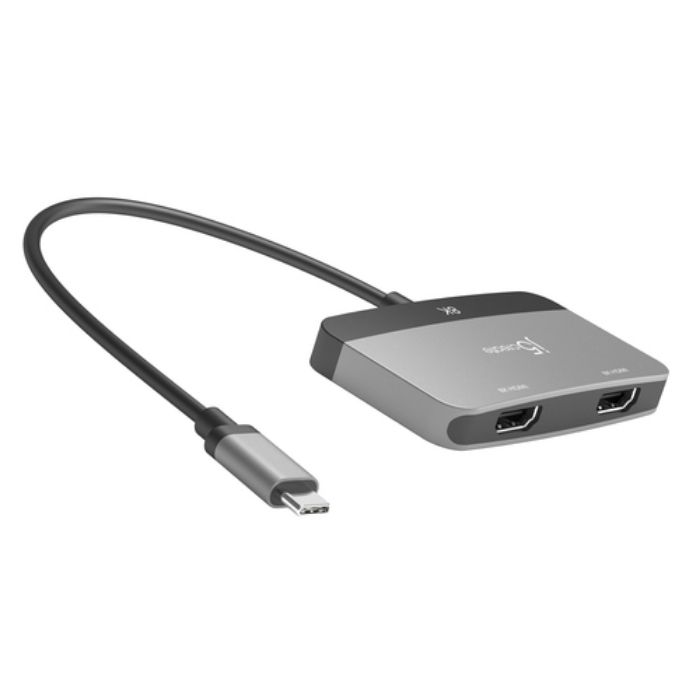

Our 8K USB-C® to Dual HDMI™ Display Adapter allows you to conveniently connect your gaming laptop, Chromebook™, or tablet to Dual 4K60Hz monitors or an 8K 60Hz UHD / 4K 144Hz external monitor, 8K UHDTV, projector and other display device using an HDMI™ input.
This adapter offers the latest USB-C® to HDMI™ connection, letting you connect to two HDMI™ displays to the latest laptops. Also works with Thunderbolt™ 4 and USB4® devices.
Viktiga egenskaper
j5create JCA465 - 8K USB-C® to Dual HDMI™ Display Adapter. Host interface: USB Type-C, Hub interfaces: HDMI. Supported graphics resolutions: 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160, 7680 x 4320, Maximum resolution (HDMI): 7680 x 4320 pixels, Product colour: Black, Grey. Minimum system requirements: Available USB-C® port that supports DisplayPort™ Alt Mode. GPU and video source must support.... Width: 80 mm, Depth: 45 mm, Height: 12 mm. Quantity per pack: 1 pc(s), Package width: 145 mm, Package depth: 94.9 mm
Teknisk specifikation
Ports & interfaces
| Ports quantity | 4 |
|---|
| Host interface | USB Type-C |
|---|
| Hub interfaces | HDMI |
|---|
| HDMI ports quantity | 2 |
|---|
| HDMI version | 2.1 |
|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
|---|
Features
| Data transfer rate | 0 Mbit/s |
|---|
| Supported graphics resolutions | 1920 x 1080 (HD 1080),2560 x 1440,3840 x 2160,7680 x 4320 |
|---|
| Maximum resolution (HDMI) | 7680 x 4320 pixels |
|---|
| Product colour | Black,Grey |
|---|
| Housing material | Aluminium,Plastic |
|---|
| USB Power Delivery (USB PD) | No |
|---|
| Number of displays supported | 2 |
|---|
| Plug and Play | Yes |
|---|
| Compatible products | Available USB-C® port that supports DisplayPort™ Alt Mode.
GPU and video source must support DisplayPort™ 1.4 with DSC to achieve single 8K @ 60Hz or Dual 4K @ 60Hz resolution. |
|---|
System requirements
| Windows operating systems supported | Yes |
|---|
| Minimum system requirements | Available USB-C® port that supports DisplayPort™ Alt Mode.
GPU and video source must support DisplayPort™ 1.4 with DSC to achieve single 8K @ 60Hz or Dual 4K @ 60Hz resolution.
macOS® does not support MST, the displays connected to the JCA465 |
|---|
Weight & dimensions
| Width | 80 mm |
|---|
| Depth | 45 mm |
|---|
| Height | 12 mm |
|---|
| Weight | 50 g |
|---|
Packaging data
| Quantity per pack | 1 pc(s) |
|---|
| Package width | 145 mm |
|---|
| Package depth | 94.9 mm |
|---|
| Package height | 24.8 mm |
|---|
| Package weight | 97 g |
|---|
| Package type | Box |
|---|
Packaging content
| Packaging content | 1 - 8K USB-C® to Dual HDMI™ Display Adapter (JCA465)
1 - Quick Installation Guide (QIG) |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|
| Storage temperature (T-T) | -10 - 71 °C |
|---|
| Operating relative humidity (H-H) | 0 - 85 % |
|---|
