Produktbeskrivning

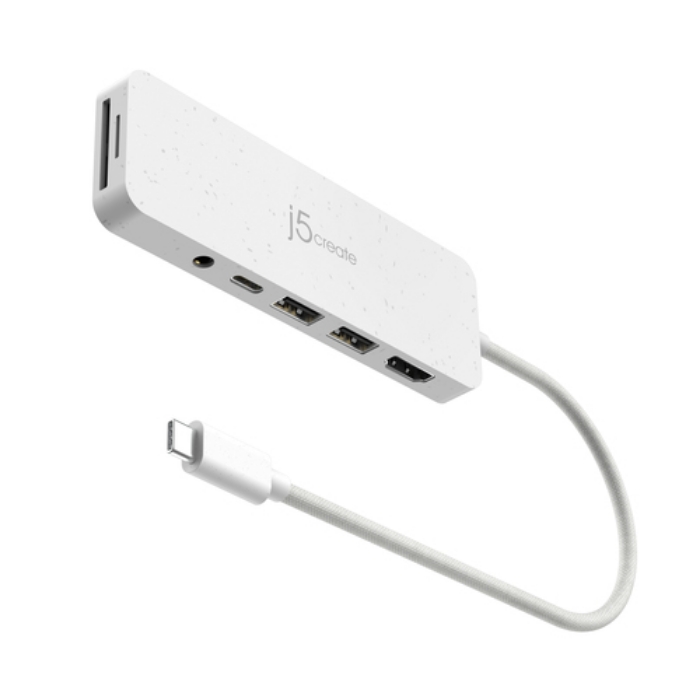

Our JCD373E Eco-Friendly USB-C® Multi-Port Hub with Power Delivery provides extra connectivity for your computer. This pocket-sized multi-adapter with 2 USB™ 3.2 Type-A ports for connecting peripherals such as an external keyboard, mouse, or USB™ flash drive. With high-speed transmission up to 5Gbps, data transfer is quick and easy. The HDMI™ port allows you to mirror or extend your screen and directly output 4K UHD to a HDTV, monitor, or projector.
Equipped with a USB-C® Power Delivery 3.0 charging port, it offers charging up to 100W when connected to a USB-C® power adapter. The hub also provides direct access to your SD™ & microSD™ memory cards. The audio/mic combo jack allows you to connect your headphone set or speakers.
Viktiga egenskaper
j5create JCD373EW - USB-C® Multi-Port Hub with Power Delivery. Host interface: USB Type-C, Hub interfaces: 3.5mm, HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB Type-C, Compatible memory cards: MicroSD (TransFlash), SD. Data transfer rate: 5000 Mbit/s, Product colour: White, USB Power Delivery up to: 100 W. Input voltage: 20 V, Input current: 3 A, Output voltage: 20 V. Other operating systems supported: ChromeOS, Minimum system requirements: • Available DisplayPort™ Alt Mode over USB-C® port for video output • Available USB™.... Width: 39 mm, Depth: 11 mm, Height: 122 mm
Teknisk specifikation
Ports & interfaces
| Ports quantity | 6 |
|---|
| Host interface | USB Type-C |
|---|
| Hub interfaces | 3.5mm,HDMI,USB 3.2 Gen 1 (3.1 Gen 1) Type-A,USB Type-C |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
|---|
| HDMI ports quantity | 1 |
|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
|---|
| Card reader slot | 1 |
|---|
| Compatible memory cards | MicroSD (TransFlash),SD |
|---|
Features
| Data transfer rate | 5000 Mbit/s |
|---|
| Product colour | White |
|---|
| USB Power Delivery (USB PD) | Yes |
|---|
| USB Power Delivery up to | 100 W |
|---|
| Number of displays supported | 1 |
|---|
| Cable length | 0.17 m |
|---|
| Plug and Play | Yes |
|---|
| Compatible products | • Available DisplayPort™ Alt Mode over USB-C® port for video output
• Available USB™ Power Delivery over USB-C®
to support charging to a mobile device |
|---|
Network
| Full duplex | No |
|---|
| Auto MDI/MDI-X | No |
|---|
| Flow control support | No |
|---|
Power
| Input current | 3 A |
|---|
| Input voltage | 20 V |
|---|
| Output voltage | 20 V |
|---|
| Output current | 3 A |
|---|
System requirements
| Windows operating systems supported | Yes |
|---|
| Mac operating systems supported | Yes |
|---|
| Other operating systems supported | ChromeOS |
|---|
| Minimum system requirements | • Available DisplayPort™ Alt Mode over USB-C® port for video output
• Available USB™ Power Delivery over USB-C® to support charging to a mobile device |
|---|
Weight & dimensions
| Width | 39 mm |
|---|
| Depth | 11 mm |
|---|
| Height | 122 mm |
|---|
| Weight | 51 g |
|---|
Packaging data
| Quantity per pack | 1 pc(s) |
|---|
| Package width | 189.9 mm |
|---|
| Package depth | 85 mm |
|---|
| Package height | 17.5 mm |
|---|
| Package weight | 97.5 g |
|---|
| Package type | Box |
|---|
Packaging content
| Packaging content | • 1 - JCD373E Eco-Friendly USB-C® Multi-Port Hub with Power Delivery
• 1 - Quick Installation Guide (QIG) |
|---|
Operational conditions
| Operating temperature (T-T) | -1 - 41 °C |
|---|
| Storage temperature (T-T) | -17 - 68 °C |
|---|
| Operating relative humidity (H-H) | 0 - 85 % |
|---|
| Storage relative humidity (H-H) | 0 - 85 % |
|---|
