Produktbeskrivning

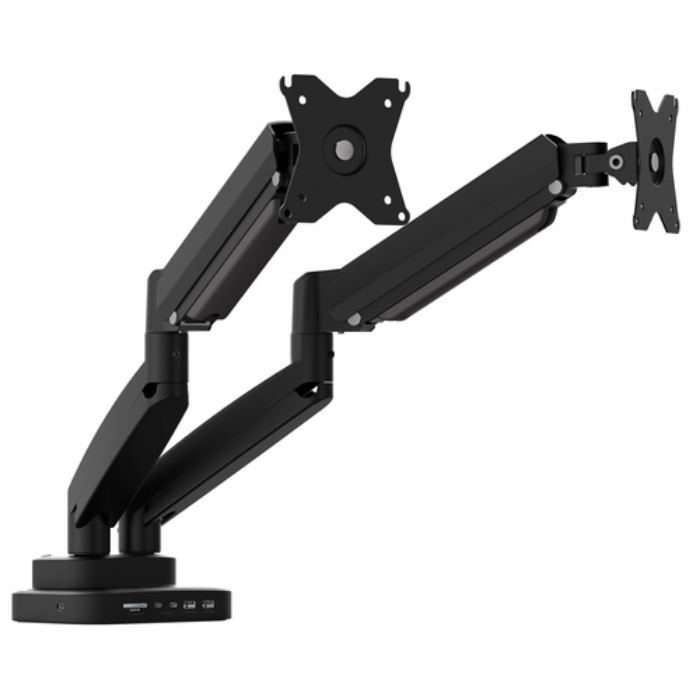

The JTSA302 is a gas spring monitor mount. Equipped with a 10-in-1 MST dual-display dock with two 4K60Hz HDMI™, Gigabit Ethernet, 1 x USB™ Type-A 10Gbps, 1 x USB™ Type-A 5Gbps 2 x USB-C® 10Gbps, SD™ /microSD ™ 4.0, and up to 100W PD pass through charging. The arm can hold max two 32” screens weighing up to 8kg/17.6 lbs. Easily adjust your screen to any height. The gas spring allows the screen to swivel 180°, tilt -45° to +90°and rotate 360°. Conveniently set your monitor at an optimal angle. This monitor mount gives you the ability to create a more efficient workspace, whether you need extra space or a standing desk setup.



Viktiga egenskaper

j5create JTSA302 Ergonomic Dual-Monitor Mount with Docking Station, Black. Mounting: Clamp/Grommet, Maximum weight capacity: 16 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Tilt angle range: -45 - 90°. Product colour: Black



Teknisk specifikation

Maximum weight capacity	16 kg
Minimum screen size	17 "
Maximum screen size	32 "
Mounting type	Desk
Maximum weight capacity (per display)	8 kg
Mounting	Clamp/Grommet
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Number of displays supported	2
Desk thickness (min)	10 mm
Clamp mount desk thickness (max)	50 mm
Grommet mount desk thickness (max)	50 mm

Height adjustment	Yes
Adjustable depth	Yes
Tilt adjustment	Yes
Tilt angle range	-45 - 90 °
Swivelling	Yes
Swivel angle	180 °
Angle of rotation	360 °
Cable management	Yes

Product colour	Black
Housing material	Aluminium,Plastic,Steel
Orientation	Landscape/Portrait
Easy to install	Yes

Built-in USB hub	Yes
USB hub version	3.2 Gen 2 (3.1 Gen 2)
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Data transfer rate	10 Gbit/s
HDMI ports quantity	2

Input voltage	20 V

Width	180 mm
Depth	320 mm
Height	465 mm
Weight	3699 g

Quantity per pack	1 pc(s)
Package width	243 mm
Package depth	515 mm
Package height	127 mm
Package weight	4438 g
Package type	Box

Storage relative humidity (H-H)	0 - 85 %
Maximum operating temperature	30 °C
Operating temperature (T-T)	0 - 30 °C
Operating relative humidity (H-H)	0 - 85 %
Storage temperature (T-T)	-10 - 65 °C

Sustainability compliance	Yes

Compliance certificates	CE,REACH,RoHS
Warranty period	2 year(s)

Display resolution	3840 x 2160 pixels
Compatible operating systems	Windows® macOS®

Master (outer) case width	275 mm
Master (outer) case length	536 mm
Master (outer) case height	145 mm
Products per master (outer) case	1 pc(s)
Master (outer) case GTIN (EAN/UPC)	24712795088292
Export Control Classification Number (ECCN)	EAR99
Country of origin	China
Master (outer) case net weight	4800 g
