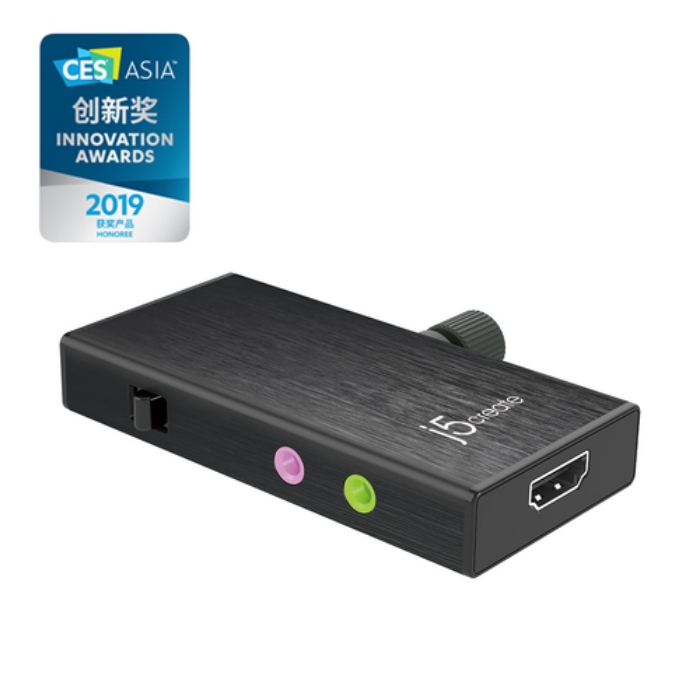

Perfect for live streaming — The JVA02 is a lightweight, stylish and powerful HDMI™ capture card. It consumes very low power, yet can capture 1080p with 60 frames of uncompressed video under USB™ 3.0. It can be broadcast continuously with three mixing modes and Power Delivery 3.0. Connect the JVA02 to your cold shoe adapter on your camera for the perfect combination of ease-of-use and functionality.
Viktiga egenskaper
j5create JVA02 Live Capture Adapter HDMI™ to USB-C™ with Power Delivery, Black. Product colour: Black, Host interface: USB 3.2 Gen 1 (3.1 Gen 1), Video capture resolution (max): 1920 x 1080 pixels. Maximum frame rate: 60 fps, Supported video modes: 480i, 480p, 720i, 720p, 1080i, 1080p. Video compression formats: AVC, H.264, M-JPEG, MP4. USB connector type: USB Type-A, USB Type-C, USB version: 2.0/3.2 Gen 1 (3.1 Gen 1). Power supply type: USB, Output voltage: 20 V, Output current: 0.5 A
Teknisk specifikation
Performance
| Product colour | Black |
|---|
| Internal | No |
|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) |
|---|
| Video capture resolution (max) | 1920 x 1080 pixels |
|---|
| Interface | USB Type-C 3.1 Gen1 |
|---|
| Supported aspect ratios | 16:9 |
|---|
| Housing material | Aluminium |
|---|
| Plug and Play | Yes |
|---|
| Cable length | 1 m |
|---|
| Country of origin | Taiwan |
|---|
| Special features | Power Delivery 3.0 lets you stream live without interruption
Professional listening and live audio mixing with built-in audio mixer |
|---|
Video
| Analog signal format system | Not supported |
|---|
| Maximum frame rate | 60 fps |
|---|
| Supported video modes | 480i,480p,720i,720p,1080i,1080p |
|---|
Audio
| Supported audio channels | 2 |
|---|
File formats
| Video compression formats | AVC,H.264,M-JPEG,MP4 |
|---|
Ports & interfaces
| USB port | No |
|---|
| USB connector type | USB Type-A,USB Type-C |
|---|
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
|---|
| USB ports quantity | 2 |
|---|
| HDMI ports quantity | 1 |
|---|
| HDMI in | 1 |
|---|
| Number of HDMI outputs | 0 |
|---|
| Audio (L/R) in | 0 |
|---|
| Headphone outputs | 1 |
|---|
| Composite video in | 0 |
|---|
| Component video (YPbPr/YCbCr) in | 0 |
|---|
Power
| Power supply type | USB |
|---|
| Output voltage | 20 V |
|---|
| Output current | 0.5 A |
|---|
| Power consumption | 2.5 W |
|---|
Software
| Windows operating systems supported | Windows 10,Windows 7,Windows 8.1 |
|---|
| Mac compatibility | Yes |
|---|
| Mac operating systems supported | Yes |
|---|
| Linux operating systems supported | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -10 - 65 °C |
|---|
Technical details
| Warranty period | 2 year(s) |
|---|
Weight & dimensions
| Width | 133.8 mm |
|---|
| Depth | 17.5 mm |
|---|
| Height | 64.5 mm |
|---|
| Weight | 51.5 g |
|---|
| Package length | 95 mm |
|---|
Other features
| Compatible operating systems | Windows® 7 or later (Driver installation is required on Windows® 7) |
|---|
| Maximum data transfer rate | 5000 Mbit/s |
|---|
| Master (outer) case height | 180 mm |
|---|
| Master (outer) case width | 225 mm |
|---|
| Inner carton dimensions (W x D x H) | 105 x 150 x 160 mm |
|---|
Packaging content
| Cables included | USB Type-A to USB Type-C,USB Type-C to USB Type-C |
|---|
| Quick installation guide | Yes |
|---|
| Manual | Yes |
|---|
| Packaging content | 1 x JVA02 Live Capture UVC HDMI™ to USB™ Video Capture, 2 x Cold shoe adapter, 1 x USB-C™ 2.0 to USB-C™ cable, 1 x USB-C™ 3.0 to USB™ Type-A cable, 1 x User Manual, 1 x Quick Installation Guide |
|---|
Packaging data
| Package weight | 148.5 g |
|---|
| Package depth | 95 mm |
|---|
| Package height | 25 mm |
|---|
| Package width | 145 mm |
|---|
| Package type | Box |
|---|
Logistics data
| Shipping (inner) case gross weight | 810 g |
|---|
| Master (outer) case GTIN (EAN/UPC) | 24712795082986 |
|---|
| Master (outer) case length | 321 mm |
|---|
| Products per shipping (inner) case | 5 pc(s) |
|---|
| Master (outer) case gross weight | 3700 g |
|---|
| Products per master (outer) case | 20 pc(s) |
|---|
