Produktbeskrivning

Increase your productivity with the M.2 NVMe USB-C Gen 2 Docking Station, transforming your Thunderbolt 3 or USB-C compatible laptop into a dual 4K workstation with up to 10 Gbps. This high-performance dock features a M.2 NVMe/SATA PCIe SSD Slot to expand your internal storage space, three SuperSpeed USB™ 10 Gbps ports (one USB-C and two USB™ Type-A), a Gigabit Ethernet port, SD & microSD™ memory card reader/writer, and a USB™ Type-A 5 Gbps port.

This USB-C Gen 2 docking station supports 100W Power Delivery pass-through to power and charge your laptop, while powering all connected devices. With the built-in PCIe M.2 SSD enclosure and extra storage you can access through an SD™ and microSD™ card, this is a must-have for creative professionals using a Mac.

Dual 4K Monitor Setup
Supports up to dual 4K @ 60 Hz monitors, allowing resource-demanding applications to run on independent displays without affecting system performance
*Dual displays via two USB-C ports supporting DP Alt Mode or a single 4K HDMI™ display with one USB-C port supporting DP Alt Mode

Enhanced Data Storage
Built-in M.2 expansion SSD slot supports 2230, 2242, 2260, and 2280 M.2 NVMe® SSD with ultra-fast read and write speeds

High-Speed Performance
Connect your latest and legacy devices with three SuperSpeed USB™ 10 Gbps ports (1 USB-C® and 2 USB™ Type-A) and a SuperSpeed USB™ 5 Gbps port

100W Power Delivery Pass-Through
Use with a USB-C power adapter for the added ability to charge your laptop and power connected peripherals

Detachable Magnetic Connectors
Its flexible design and universal USB-C connectors (Thunderbolt 3 compatible) make the docking station compatible with a wide range of devices and operating systems

Flexible Display Connections
DisplayPort alternate mode allows you to connect two 4K 60 Hz displays via HDMI and DisplayPort or add a single 4K HDMI™ display when the docking station is connected to only one USB-C host

Anti-Theft Protection
Security slot to prevent equipment theft in a wide range of business or institutional environments.

Ideal Accessory for MacBook Pro/Macbook Air
Great for working with graphics-intensive images and video editing



Viktiga egenskaper

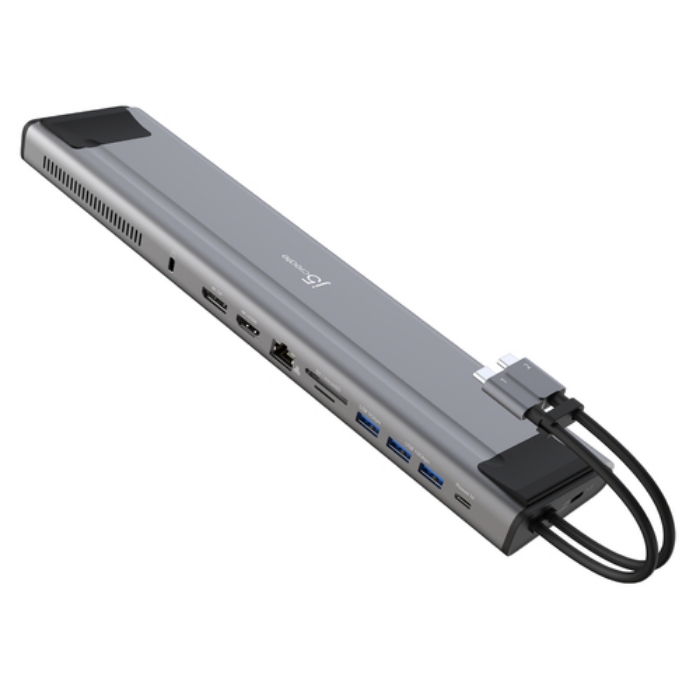

j5create JCD552 M.2 NVMe® USB-C® Gen 2 Docking Station, Silver and Black. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Silver, Colour name: Silver & Black, Compatible memory cards: MicroSD (TransFlash). Power source type: USB, Power connector: USB Type-C, Output voltage: 5 V. Width: 80 mm, Depth: 318 mm, Height: 26 mm



Teknisk specifikation

Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
Microphone in	No
Headphone outputs	0

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s

Product colour	Black,Silver
Colour name	Silver & Black
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Number of storage drives supported	1
Supported storage drive types	SSD
Built-in SSD	No
SSD enclosure	Yes
NVMe	Yes
Supported SSD sizes	M.2
Data transfer rate	10 Gbit/s
HD type	4K Ultra HD
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	2
Maximum refresh rate	60 Hz
Housing material	Aluminium
Country of origin	Taiwan
Compatibility	Mac / Windows laptop

Power source type	USB
Power connector	USB Type-C
Output voltage	5 V
Output current	0.75 A
Power consumption (typical)	3.75 W
USB cable length	0.15 m
Power cable length	0.15 m

Windows operating systems supported	Yes
Mac operating systems supported	Yes

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 65 °C
Operating relative humidity (H-H)	0 - 85 %
Storage relative humidity (H-H)	0 - 85 %

Width	80 mm
Depth	318 mm
Height	26 mm
Weight	480.5 g

Quantity per pack	1 pc(s)
Package width	90 mm
Package depth	377.5 mm
Package height	33 mm
Package weight	606.5 g

Quick start guide	Yes
Manual	Yes

Master (outer) case GTIN (EAN/UPC)	24712795086137
Warranty period	2 year(s)

Master (outer) case height	123 mm
Export Control Classification Number (ECCN)	EAR99
Master (outer) case width	150 mm
Master (outer) case length	398 mm
Master (outer) case gross weight	2700 g
Products per master (outer) case	4 pc(s)

Special features	12-in-1 functions, M.2 Expansion slot, USB 3.2, HDMI/DP 4K @ 60, 100W power delivery Passthrough
