Produktbeskrivning

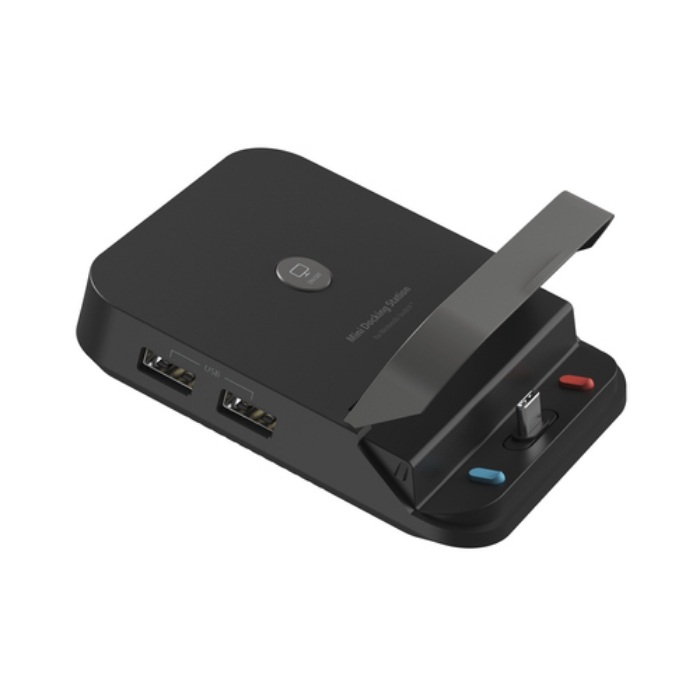

Add extra functionality to your Nintendo Switch™ with the JCD620 Mini docking Station. This mini dock allows you to project your console screen to your HDTV. Connect USB™ Type-A with accessories like a gaming controller or a keyboard. It is equipped with a high-speed Gigabit Ethernet port for network stability. The JCD620 allows the Nintendo Switch™ to connect to a HDTV, resolution up to 1080p60Hz. The JCD620 also comes with a button that allows you to toggle between the Nintendo Switch™ display and the TV display when pressed. The docking station provides all these functions while being much smaller than the standard dock for the Nintendo Switch™. It includes a USB-C® Power Delivery port that can be used to charge your console or smartphone when a USB-C® power adapter is connected. The HDMI™ port can also output 4K resolution when a 4K-capable device is connected.



Viktiga egenskaper

j5create JCD620 Mini Docking Station for Nintendo Switch™, Black. Width: 80 mm, Depth: 104 mm, Height: 21 mm, Weight: 135 g. Product colour: Black, Grey



Teknisk specifikation

Product colour	Black,Grey
Material	ABS,Plastic
Maximum resolution	3840 x 2160 pixels
Data transfer rate	0.48 Gbit/s
Mobile operating systems supported	Android,iOS
Mac operating systems supported	Yes
Windows operating systems supported	Windows 10,Windows 11

HDMI	Yes
HDMI ports quantity	1

Width	80 mm
Depth	104 mm
Height	21 mm
Weight	135 g

Quantity	1
Package width	170 mm
Package depth	105 mm
Package height	25 mm
Package weight	184.5 g

Operating temperature (T-T)	-1 - 41 °C

Sustainability compliance	Yes

Compliance certificates	CE,REACH,RoHS
Warranty period	2 year(s)

Master (outer) case length	260 mm
Shipping (inner) case length	199 mm
Master (outer) case height	224 mm
Master (outer) case width	255 mm
Shipping (inner) case width	118 mm
Shipping (inner) case height	117 mm
Quantity per pack	1 pc(s)
Master (outer) case GTIN (EAN/UPC)	24712795088650
Export Control Classification Number (ECCN)	EAR99
Country of origin	Taiwan
Master (outer) case net weight	3600 g
Shipping (inner) case net weight	800 g
Products per master (outer) case	16 pc(s)
Products per shipping (inner) case	4 pc(s)
