Produktbeskrivning
This Thunderbolt™ 4 Quad display Docking Station turns your Windows® laptop or Mac® into a full workstation, with resolution support up to Quad displays at 4K60Hz or Triple display at 4K60Hz or dual display at 5K60 Hz or 8K60Hz on the single display. Supports up to 98W power delivery for providing charging to your laptop. The quad display output and five USB™ 3.2 ports, and a USB-C® 3.2 port, this docking station is perfect for Thunderbolt™ 4 laptop requiring many high-performance ports and high-resolution displays. This Thunderbolt™ 4 docking station is also equipped with an RJ45 2.5 Gigabit Ethernet port, SD™/microSD™ 4.0 memory card reader/writer, and combo audio jack for maximum productivity. All 15 ports are combined into one slim docking station, so you will have all the connections you need to stay productive!
Viktiga egenskaper

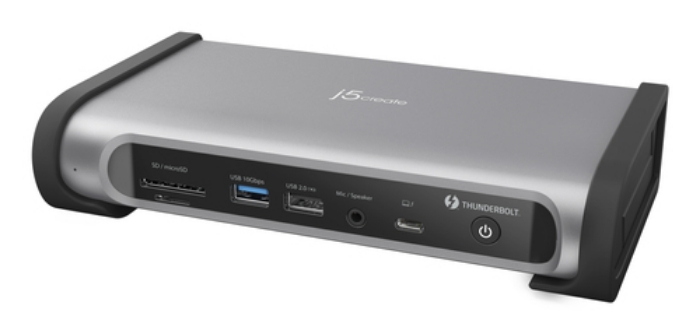

j5create JTD568 Thunderbolt™ 4 Quad Display Docking Station-EU, Black. Connectivity technology: Wired, Host interface: Thunderbolt 4, USB Power Delivery up to: 98 W. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Product colour: Grey, Colour name: Dark / Space Grey, Compatible memory cards: MicroSD (TransFlash), SD. Power source type: DC, Input current: 6.75 A, Power supply: 135 W. Width: 201 mm, Depth: 109 mm, Height: 43 mm
Teknisk specifikation
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Host interface | Thunderbolt 4 |
|---|
| USB 2.0 ports quantity | 1 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
|---|
| USB Power Delivery (USB PD) | Yes |
|---|
| USB Power Delivery up to | 98 W |
|---|
| HDMI ports quantity | 2 |
|---|
| HDMI version | 2.1 |
|---|
| DisplayPorts quantity | 2 |
|---|
| DisplayPort version | 1.4 |
|---|
| Microphone in | No |
|---|
| Combo headphone/mic port | Yes |
|---|
| Headphone connectivity | 3.5 mm |
|---|
| DC-in jack | Yes |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
|---|
Performance
| Product colour | Grey |
|---|
| Colour name | Dark / Space Grey |
|---|
| Card reader integrated | Yes |
|---|
| Compatible memory cards | MicroSD (TransFlash),SD |
|---|
| Data transfer rate | 10 Gbit/s |
|---|
| HD type | 8K Ultra HD |
|---|
| Maximum digital resolution | 7860 x 4320 pixels |
|---|
| Maximum refresh rate | 240 Hz |
|---|
| Number of displays supported | 4 |
|---|
| Cable lock slot | Yes |
|---|
| Cable lock slot type | Kensington |
|---|
| On/off switch | Yes |
|---|
| Charging function | Yes |
|---|
| Housing material | Aluminium |
|---|
| LED indicators | Yes |
|---|
| Country of origin | Taiwan |
|---|
Power
| Power source type | DC |
|---|
| Power supply | 135 W |
|---|
| Input current | 6.75 A |
|---|
| Compatible power plug types | EU |
|---|
| Thunderbolt 4 cable length | 0.8 m |
|---|
Software
| Windows operating systems supported | Yes |
|---|
| Mac operating systems supported | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 48 °C |
|---|
| Storage temperature (T-T) | -10 - 65 °C |
|---|
| Operating relative humidity (H-H) | 0 - 85 % |
|---|
| Storage relative humidity (H-H) | 0 - 85 % |
|---|
Sustainability
| Sustainability compliance | Yes |
|---|
Weight & dimensions
| Width | 201 mm |
|---|
| Depth | 109 mm |
|---|
| Height | 43 mm |
|---|
| Weight | 681 g |
|---|
Packaging data
| Quantity per pack | 1 pc(s) |
|---|
| Package width | 122 mm |
|---|
| Package depth | 237 mm |
|---|
| Package height | 94 mm |
|---|
| Package weight | 1667 g |
|---|
Packaging content
| AC adapter included | Yes |
|---|
| Quick start guide | Yes |
|---|
| Cables included | Thunderbolt |
|---|
Technical details
| Warranty period | 2 year(s) |
|---|
| Master (outer) case GTIN (EAN/UPC) | 24712795088308 |
|---|
| Compliance certificates | CE,REACH,RoHS |
|---|
Logistics data
| Master (outer) case length | 275 mm |
|---|
| Master (outer) case height | 155 mm |
|---|
| Export Control Classification Number (ECCN) | EAR99 |
|---|
| Master (outer) case width | 207 mm |
|---|
| Products per master (outer) case | 2 pc(s) |
|---|
| Master (outer) case net weight | 3600 g |
|---|
