Produktbeskrivning
This compact multi-port dock is ideal for office application, featuring everything from the essential two HDMI™ outputs, USB™ ports, Gigabit Ethernet, SD™/microSD™ card reader, Audio Jack and an upgraded Power Delivery 3.1 specification. It comes with a mount for saving-space vertical placement and gives you the ability to connect your MacBook® or other USB-C® compatible laptops to a 4K monitor or TV. With USB™ Power Delivery 3.1 it’ll take you to a new flexible power application, you'll be able to charge your laptop and power your peripherals with a single USB-C® power adapter even if your laptop only has one USB-C® port. Access a wired network through the Gigabit Ethernet port for a fast and stable network connection. It is also equipped with a cable storage compartment which ensures an easy connection regardless of your USB-C® port’s location. Through a single USB-C® (Thunderbolt™ 3, 4, and USB4® compatible) host cable, this compact adapter provides all the essential connectivity you need to create a workstation virtually anywhere!
Viktiga egenskaper

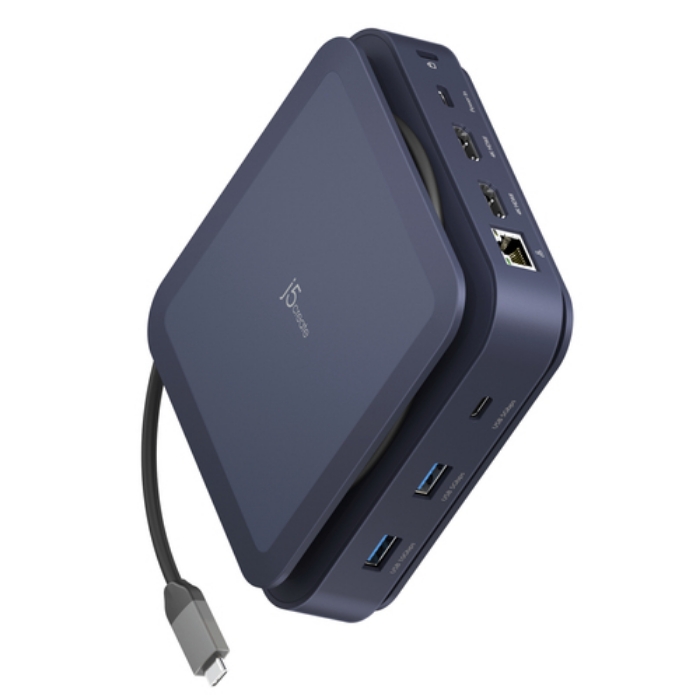

j5create JCD3196 Type-C Dock Dual 4K HDMI™, Black. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 140 W. Ethernet LAN data rates: 1000 Mbit/s. Product colour: Blue, Colour name: Dark Blue, Compatible memory cards: MicroSD (TransFlash), SD. Windows operating systems supported: Windows 10, Windows 11. Width: 130 mm, Depth: 130 mm, Height: 40 mm
Teknisk specifikation
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
|---|
| USB 2.0 ports quantity | 0 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
|---|
| USB Power Delivery (USB PD) | Yes |
|---|
| USB Power Delivery revision | 3.1 |
|---|
| USB Power Delivery up to | 140 W |
|---|
| HDMI ports quantity | 2 |
|---|
| Microphone in | Yes |
|---|
| Combo headphone/mic port | Yes |
|---|
| Headphone outputs | 1 |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Ethernet LAN data rates | 1000 Mbit/s |
|---|
Performance
| Product colour | Blue |
|---|
| Colour name | Dark Blue |
|---|
| Card reader integrated | Yes |
|---|
| Compatible memory cards | MicroSD (TransFlash),SD |
|---|
| Data transfer rate | 10 Gbit/s |
|---|
| HD type | 4K Ultra HD |
|---|
| Maximum digital resolution | 3840 x 2160 pixels |
|---|
| Maximum refresh rate | 60 Hz |
|---|
| Cable lock slot | Yes |
|---|
| Housing material | Plastic |
|---|
| Country of origin | Taiwan |
|---|
Software
| Windows operating systems supported | Windows 10,Windows 11 |
|---|
| Mac operating systems supported | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | -1 - 41 °C |
|---|
Sustainability
| Sustainability compliance | Yes |
|---|
Weight & dimensions
| Width | 130 mm |
|---|
| Depth | 130 mm |
|---|
| Height | 40 mm |
|---|
| Weight | 236 g |
|---|
Packaging data
| Quantity per pack | 1 pc(s) |
|---|
| Package width | 145 mm |
|---|
| Package depth | 140 mm |
|---|
| Package height | 56 mm |
|---|
| Package weight | 416 g |
|---|
Technical details
| Warranty period | 2 year(s) |
|---|
| Master (outer) case GTIN (EAN/UPC) | 24712795089039 |
|---|
| Compliance certificates | CE,REACH,RoHS |
|---|
Logistics data
| Master (outer) case width | 186 mm |
|---|
| Export Control Classification Number (ECCN) | EAR99 |
|---|
| Master (outer) case height | 174 mm |
|---|
| Master (outer) case length | 249 mm |
|---|
| Master (outer) case net weight | 1900 g |
|---|
| Products per master (outer) case | 4 pc(s) |
|---|
Other features
| Cable length | 0.695 m |
|---|
