Produktbeskrivning

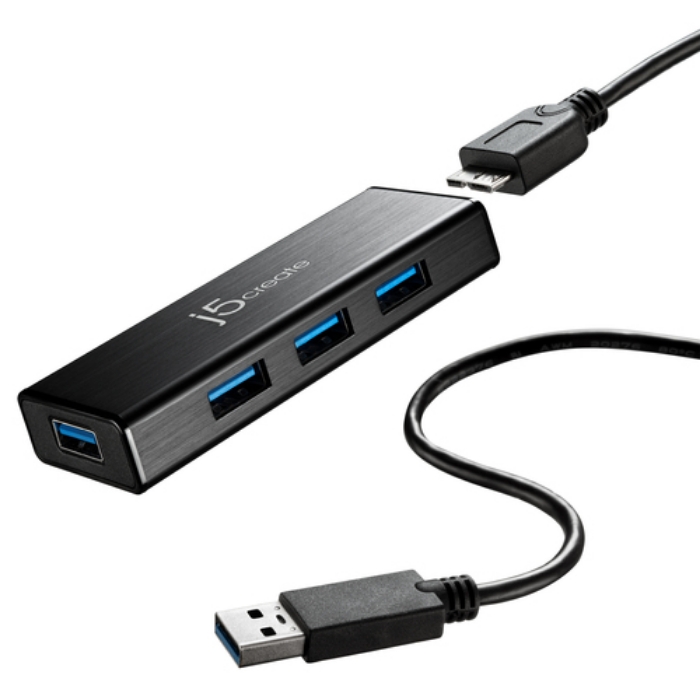

The JUH340 high-performance USB™ 3.0 4-Port Hub allows up to four USB™ 3.0 devices to be connected simultaneously at a transmission speed of 5 Gbps, while still providing connectivity and support for USB™ 2.0 (480 Mbps) and 1.1 (12 Mbps) devices. It works with high-bandwidth SuperSpeed USB™ 3.0 devices, such as external disk drives, high-resolution webcams, video surveillance cameras, digital video cameras, multi-channel audio and more. In addition, it supports fast charging for smart phones, tablets and iPad®.
Viktiga egenskaper
j5create JUH340 USB 3.0 4-Port Hub. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Micro-B, Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A. Data transfer rate: 5000 Mbit/s, Product colour: Black, Housing material: Aluminium. Power source type: AC, Power consumption (typical): 20 W, Input voltage: 110 - 240 V. Width: 88 mm, Depth: 14.8 mm, Height: 32.8 mm. Quantity per pack: 1 pc(s), Package width: 193 mm, Package depth: 125 mm
Teknisk specifikation
Ports & interfaces
| Ports quantity | 4 |
|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Micro-B |
|---|
| Hub interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
|---|
| Card reader integrated | No |
|---|
| DC-in jack | Yes |
|---|
Features
| Data transfer rate | 5000 Mbit/s |
|---|
| Product colour | Black |
|---|
| Housing material | Aluminium |
|---|
| Cable length | 0.6 m |
|---|
| Plug and Play | Yes |
|---|
| Country of origin | Taiwan |
|---|
| Compatible products | Devices with available USB™ port |
|---|
Power
| Power source type | AC |
|---|
| Power consumption (typical) | 20 W |
|---|
| Input voltage | 110 - 240 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
| Output voltage | 5 V |
|---|
| Output current | 0.5 A |
|---|
| USB powered | Yes |
|---|
System requirements
| Windows operating systems supported | Yes |
|---|
| Mac operating systems supported | Yes |
|---|
| Linux operating systems supported | Yes |
|---|
Weight & dimensions
| Width | 88 mm |
|---|
| Depth | 14.8 mm |
|---|
| Height | 32.8 mm |
|---|
| Weight | 38.2 g |
|---|
Packaging data
| Quantity per pack | 1 pc(s) |
|---|
| Package width | 193 mm |
|---|
| Package depth | 125 mm |
|---|
| Package height | 42 mm |
|---|
| Package weight | 339.5 g |
|---|
| Package type | Box |
|---|
Packaging content
| AC adapter included | Yes |
|---|
| Cables included | USB |
|---|
| Quick installation guide | Yes |
|---|
| Quick start guide | Yes |
|---|
| Packaging content | 1 x JUH340 USB™ 3.0 4-Port Hub, 1 x USB™ 3.0 cable, 1 x Power Adapter, 1 x Quick Installation Guide |
|---|
Operational conditions
| Minimum operating temperature | 0 °C |
|---|
| Maximum operating temperature | 40 °C |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|
Performance
| Export Control Classification Number (ECCN) | EAR99 |
|---|
| Commodity Classification Automated Tracking System (CCATS) | 8471.80.0000 |
|---|
Logistics data
| Master (outer) case width | 280 mm |
|---|
| Master (outer) case length | 430 mm |
|---|
| Master (outer) case height | 235 mm |
|---|
| Master (outer) case gross weight | 6740 g |
|---|
| Products per master (outer) case | 18 pc(s) |
|---|
| Master (outer) case GTIN (EAN/UPC) | 24712795080272 |
|---|
| Shipping (inner) case width | 212 mm |
|---|
| Shipping (inner) case length | 269 mm |
|---|
| Shipping (inner) case height | 130 mm |
|---|
| Shipping (inner) case gross weight | 2190 g |
|---|
| Products per shipping (inner) case | 6 pc(s) |
|---|
Technical details
| Warranty period | 2 year(s) |
|---|
| Box contents | 1 x JUH340 USB™ 3.0 4-Port Hub, 1 x USB™ 3.0 cable, 1 x Power Adapter, 1 x Quick Installation Guide |
|---|
