Produktbeskrivning

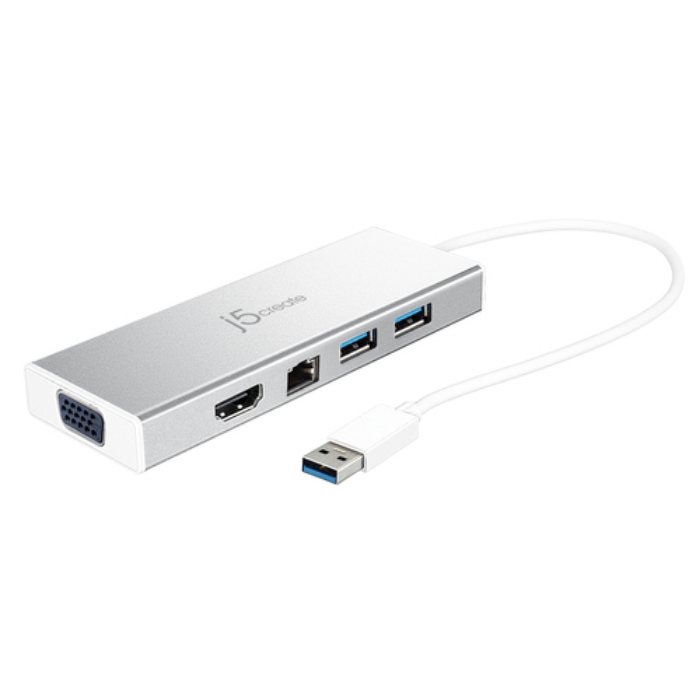

This dual-monitor USB™ 3.0 mini docking station features two USB™ 3.0 Type-A ports for connecting extra peripherals, an HDMI™ & VGA output port, providing up to 2048 x 1152 resolutions, as well as an integrated RJ45 Ether port for a reliable wired network connection.
With its space-saving, travel-friendly design, you can quickly set up a workstation while on the go!
Viktiga egenskaper
j5create JUD380 USB™ 3.0 Mini Dock, includes 1x HDMI port and 3x USB ports, Silver. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A. Ethernet LAN data rates: 10,100,1000 Mbit/s, Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T. Product colour: Silver, Colour name: Silver, Maximum digital resolution: 2048 x 1152 pixels. Power source type: USB, Input current: 0.9 A, Output current: 0.45 A. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High...
Teknisk specifikation
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
|---|
| USB 2.0 ports quantity | 0 |
|---|
| Micro-USB 2.0 ports quantity | 1 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|
| HDMI ports quantity | 1 |
|---|
| VGA (D-Sub) ports quantity | 1 |
|---|
| Microphone in | No |
|---|
| Headphone outputs | 0 |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|
| Copper ethernet cabling technology | 10BASE-T,100BASE-T,1000BASE-T |
|---|
Performance
| Product colour | Silver |
|---|
| Colour name | Silver |
|---|
| Card reader integrated | No |
|---|
| Maximum digital resolution | 2048 x 1152 pixels |
|---|
| Number of displays supported | 2 |
|---|
| Charging function | Yes |
|---|
| Plug and Play | Yes |
|---|
| Housing material | Aluminium |
|---|
| Country of origin | Taiwan |
|---|
| Brand compatibility | Any brand |
|---|
| Compatibility | Compatible with USB™-enabled macOS® & Windows® laptops, for example:
Macbook™ Pro 2016 & Newer
Surface Pro™ 7
Surface Go™
Surfacebook™ 2
Backwards compatible with USB™ 2.0 and 1.1 hosts and devices. |
|---|
| Certification | CE |
|---|
Power
| Power source type | USB |
|---|
| Input current | 0.9 A |
|---|
| Output current | 0.45 A |
|---|
| Power consumption (typical) | 2.25 W |
|---|
| USB cable length | 0.2 m |
|---|
Software
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home |
|---|
| Mac operating systems supported | Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 10.15.3 Catalina,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks,Mac OS X 11.0 Big Sur,Mac OS X 1 |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -17 - 68 °C |
|---|
| Operating relative humidity (H-H) | 0 - 85 % |
|---|
| Storage relative humidity (H-H) | 0 - 85 % |
|---|
Weight & dimensions
| Width | 119.6 mm |
|---|
| Depth | 42.8 mm |
|---|
| Height | 14.15 mm |
|---|
| Weight | 82.6 g |
|---|
Packaging data
| Quantity per pack | 1 pc(s) |
|---|
| Package width | 193 mm |
|---|
| Package depth | 125 mm |
|---|
| Package height | 225 mm |
|---|
| Package weight | 180.5 g |
|---|
Packaging content
| User guide | Yes |
|---|
| Quick start guide | Yes |
|---|
| Drivers included | Yes |
|---|
| Cables included | USB |
|---|
Technical details
| Master (outer) case GTIN (EAN/UPC) | 24712795081347 |
|---|
| Warranty period | 2 year(s) |
|---|
Logistics data
| Export Control Classification Number (ECCN) | EAR99 |
|---|
| Master (outer) case length | 445 mm |
|---|
| Master (outer) case height | 190 mm |
|---|
| Master (outer) case width | 226 mm |
|---|
| Products per shipping (inner) case | 6 pc(s) |
|---|
| Products per master (outer) case | 18 pc(s) |
|---|
| Master (outer) case gross weight | 4030 g |
|---|
| Shipping (inner) case width | 165 mm |
|---|
| Shipping (inner) case length | 212 mm |
|---|
| Shipping (inner) case height | 137 mm |
|---|
| Shipping (inner) case net weight | 1200 g |
|---|
