Produktbeskrivning

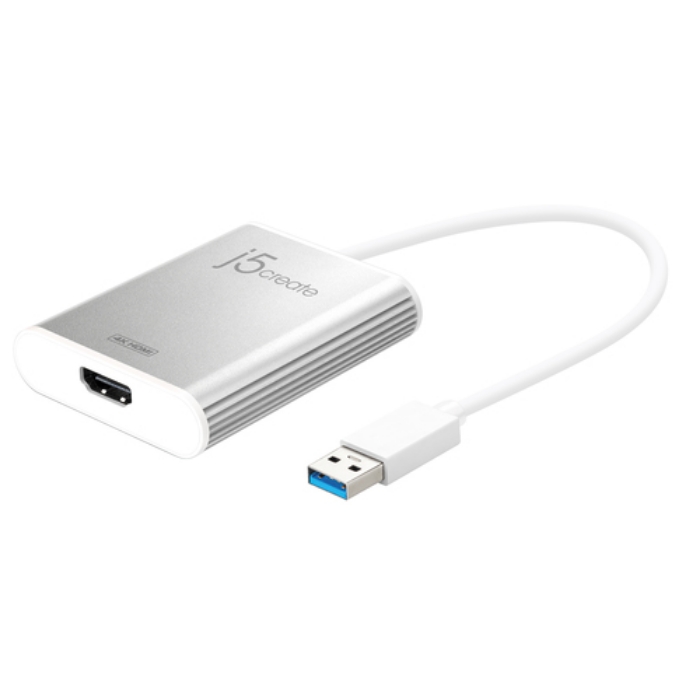

The JUA354 USB™ 3.0 to 4K HDMI™ Display Adapter acts as an external video card for your Mac® or PC. It allows you to add an additional monitor/display through your USB™ 3.0 port. There's no need to open your computer to add an expensive video card. With the USB™ 3.0 to Dual HDMI™ Multi-Monitor Adapter you simply load the drivers, plug in the adapter to the USB™ port, then plug the HDMI™ monitor cable into the adapter and you are ready. The adapter supports three viewing modes. Primary Mode allows you to have individual applications open on each monitor, vastly improving productivity. Extended Mode allows you to extend your desktop across multiple displays, which is great for office applications. Mirroring Mode is used to clone one screen onto another, which is ideal for presentations. With plug-and-play functionality between your computer and second monitor or projector, you will be able to create a new visual environment in seconds.
Viktiga egenskaper
j5create JUA354 USB™ 3.0 to 4K HDM™ Display Adapter, Silver. USB version: 2.0/3.2 Gen 1 (3.1 Gen 1), USB connector type: USB Type-A, Maximum resolution (HDMI): 3840 x 2160 pixels. Product colour: Silver, Housing material: Aluminium, Cable type: USB 3.0. Power consumption (max): 2 W, Output voltage: 5 V. Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1, Yes, Mac operating systems supported: Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac.... Width: 58 mm, Depth: 11 mm, Height: 76 mm
Teknisk specifikation
Performance
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
|---|
| USB connector type | USB Type-A |
|---|
| DVI output | No |
|---|
| HDMI output | Yes |
|---|
| DisplayPort output | No |
|---|
| Number of displays supported | 1 |
|---|
| HDMI ports quantity | 1 |
|---|
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
|---|
| Current | 0.4 A |
|---|
| Data transfer rate (max) | 5 Gbit/s |
|---|
| Resolution at refresh rate | 3840 x 2160 @ 30 Hz |
|---|
Design
| Product colour | Silver |
|---|
| Housing material | Aluminium |
|---|
| Cable type | USB 3.0 |
|---|
Power
| Power consumption (max) | 2 W |
|---|
| Output voltage | 5 V |
|---|
System requirements
| Mac compatibility | Yes |
|---|
| Windows operating systems supported | Windows 10,Windows 7,Windows 8,Windows 8.1,Y |
|---|
| Mac operating systems supported | Mac OS X 10.0 Cheetah,Mac OS X 10.1 Puma,Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 10.15.3 Catalina,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 M |
|---|
Weight & dimensions
| Width | 58 mm |
|---|
| Depth | 11 mm |
|---|
| Height | 76 mm |
|---|
| Weight | 75.5 g |
|---|
| USB cable length | 0.08 m |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
Packaging data
| Package type | Box |
|---|
| Package width | 145 mm |
|---|
| Package depth | 95 mm |
|---|
| Package height | 25 mm |
|---|
| Package weight | 120 g |
|---|
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
| Batteries included | No |
|---|
| Quick installation guide | Yes |
|---|
| Packaging content | 1 x JUA354 USB™ 3.0 to 4K HDMI™ Display Adapter, 1 x Quick Installation Guide |
|---|
Technical details
| Warranty period | 2 year(s) |
|---|
Logistics data
| Products per master (outer) case | 20 pc(s) |
|---|
| Master (outer) case GTIN (EAN/UPC) | 24712795081293 |
|---|
| Master (outer) case width | 225 mm |
|---|
| Master (outer) case length | 321 mm |
|---|
| Master (outer) case height | 180 mm |
|---|
| Master (outer) case gross weight | 3100 g |
|---|
| Products per shipping (inner) case | 5 pc(s) |
|---|
| Shipping (inner) case width | 105 mm |
|---|
| Shipping (inner) case length | 150 mm |
|---|
| Shipping (inner) case height | 160 mm |
|---|
| Country of origin | Taiwan |
|---|
| Export Control Classification Number (ECCN) | EAR99 |
|---|
