Produktbeskrivning

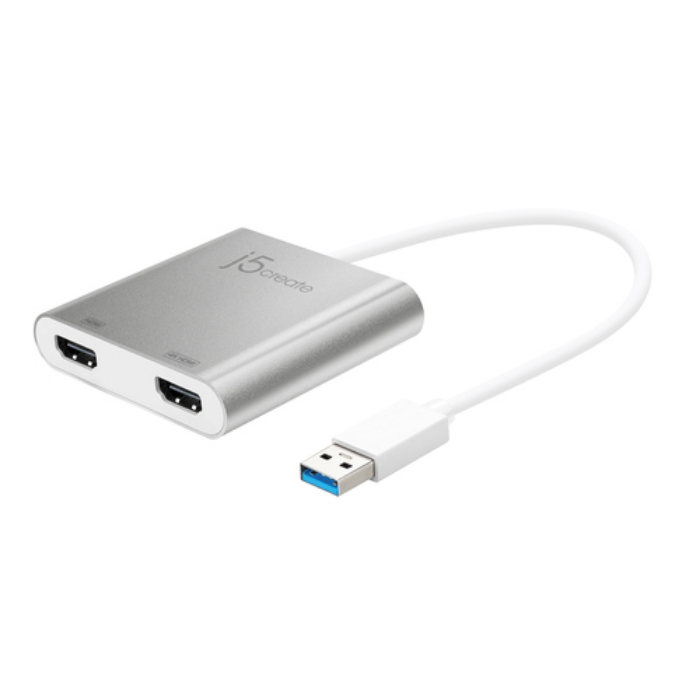

The JUA365 USB 3.0 to Dual HDMI Multi-Monitor Adapter acts as an external video card for your Mac or PC. It allows you to add an additional monitor/display through your USB 3.0 port. There's no need to open your computer to add an expensive video card. With the USB 3.0 to Dual HDMI Multi-Monitor Adapter you simply load the drivers, plug the adapter into the USB port, then plug in the HDMI monitor cable into the adapter and you are ready. The Adapter supports three viewing modes. Primary Mode allows you to have individual applications open on each monitor, vastly improving productivity. Extended Mode allows you to extend your desktop across multiple displays, which is great for spreadsheets. Mirroring mode is used to clone one screen onto another, which is ideal for presentations. With plug-and-play functionality between your computer and second monitor or projector, you will be able to create a new visual environment in seconds.

In addition, j5create has developed this compact design to cater to the sophisticated user who values function as well as elegance.



Viktiga egenskaper

j5create JUA365 USB™ 3.0 to Dual HDMI Multi-Monitor Adapter, Silver. USB version: 3.2 Gen 1 (3.1 Gen 1), USB connector type: USB Type-A, USB connector gender: Male. Product colour: Silver, Housing material: Aluminium. Power consumption (max): 2 W, Output voltage: 5 V. Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1, Yes, Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High..., Minimum processor speed: 2.8 GHz. Width: 68 mm, Depth: 15 mm, Height: 61 mm



Teknisk specifikation

USB version	3.2 Gen 1 (3.1 Gen 1)
USB connector type	USB Type-A
USB connector gender	Male
DVI output	No
HDMI output	Yes
DisplayPort output	No
Number of displays supported	2
HDMI ports quantity	2
Maximum resolution	3840 x 2160 pixels
Refresh rate at maximum resolution	30 Hz
Maximum resolution (HDMI)	3840 x 2160 pixels
Supported video modes	2160p
Mirror display mode	Yes
Extended display mode	Yes
Data transfer rate (max)	5 Gbit/s
Current	0.4 A
Resolution at refresh rate	2K @ 60 Hz 4K @ 30 Hz

Product colour	Silver
Housing material	Aluminium
Integrated USB cable	Yes

Power consumption (max)	2 W
Output voltage	5 V

Mac compatibility	Yes
Windows operating systems supported	Windows 10,Windows 7,Windows 8,Windows 8.1,Y
Mac operating systems supported	Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 10.15.3 Catalina,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks,Mac OS X 11.0 Big Sur,Mac OS X 1
Minimum processor speed	2.8 GHz
Minimum RAM	2048 GB

Width	68 mm
Depth	15 mm
Height	61 mm
Weight	84 g
USB cable length	0.2 m

Operating temperature (T-T)	0 - 40 °C

Package width	145 mm
Package depth	95 mm
Package height	25 mm
Package weight	126 g

Quick installation guide	Yes
Batteries included	No
Packaging content	1 x JUA365 USB 3.0 to Dual HDMI Multi-Monitor Adapter, 1 x Quick Installation Guide

Warranty period	2 year(s)

Products per master (outer) case	20 pc(s)
Master (outer) case GTIN (EAN/UPC)	24712795081255
Master (outer) case width	225 mm
Master (outer) case length	321 mm
Master (outer) case height	180 mm
Master (outer) case gross weight	3200 g
Products per shipping (inner) case	5 pc(s)
Shipping (inner) case width	105 mm
Shipping (inner) case length	150 mm
Shipping (inner) case height	160 mm
Country of origin	Taiwan
Export Control Classification Number (ECCN)	EAR99
