Produktbeskrivning

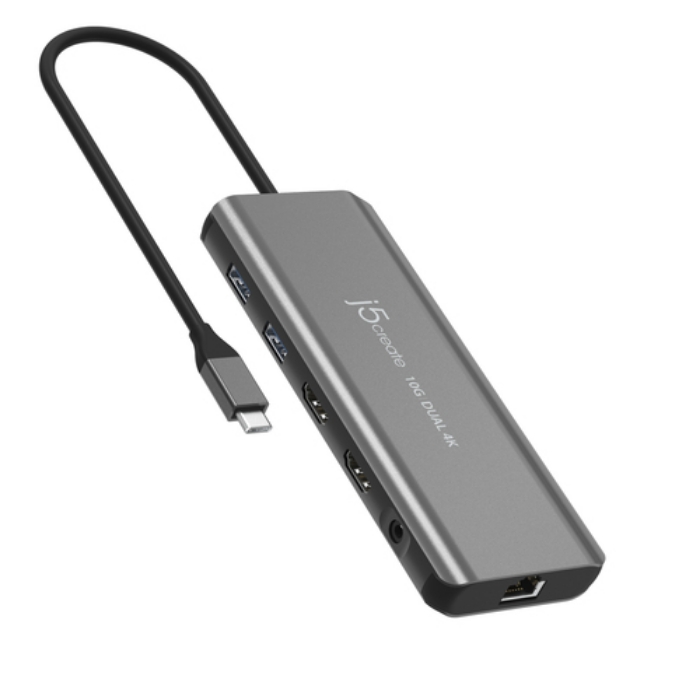

The JCD398 USB-C® Dual 4K HDMI™ 10Gbps Mini Dock is great for adding two 4K UHD displays to your laptop PC including MacBook® computers with the Apple® M-Series chip. Its compact size makes it suitable for desk environments that lack space. The USB™ ports support up 10Gbps data transfer rates for connect high speed storage devices and other devices. Supports Power Delivery 3.0 for up to 100W of power passthrough for laptop and tablets. One Gigabit Ethernet port is included for high-speed network connectivity.



Viktiga egenskaper

j5create JCD398 USB-C® Dual 4K HDMI™ 10Gbps Mini Dock, Black. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, Colour name: Space Grey, Data transfer rate: 10 Gbit/s. Input current: 5 A, Output voltage: 20 V, Output current: 4.5 A. Windows operating systems supported: Windows 10, Windows 11



Teknisk specifikation

Connectivity technology	Wired
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
HDMI ports quantity	2
Microphone in	Yes
Combo headphone/mic port	Yes
Headphone outputs	1

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s

Product colour	Grey
Colour name	Space Grey
Data transfer rate	10 Gbit/s
HD type	4K Ultra HD
Maximum digital resolution	3840 x 2160 pixels
Maximum refresh rate	144 Hz
Number of displays supported	2
Housing material	Aluminium
Country of origin	Taiwan

Input current	5 A
Output current	4.5 A
Output voltage	20 V

Windows operating systems supported	Windows 10,Windows 11
Mac operating systems supported	Yes

Operating temperature (T-T)	0 - 37 °C
Storage temperature (T-T)	-10 - 65 °C
Operating relative humidity (H-H)	0 - 85 %
Storage relative humidity (H-H)	0 - 85 %

Sustainability compliance	Yes

Width	56.98 mm
Depth	147.25 mm
Height	14.85 mm
Weight	113.5 g

Quantity per pack	1 pc(s)
Package width	193 mm
Package depth	125 mm
Package height	22.5 mm
Package weight	191 g

Warranty period	2 year(s)
Master (outer) case GTIN (EAN/UPC)	24712795088193
Compliance certificates	CE,REACH,RoHS

Export Control Classification Number (ECCN)	EAR99
Master (outer) case width	226 mm
Master (outer) case length	445 mm
Master (outer) case height	190 mm
Products per master (outer) case	18 pc(s)
Products per shipping (inner) case	6 pc(s)
Master (outer) case net weight	4300 g
Shipping (inner) case width	165 mm
Shipping (inner) case length	212 mm
Shipping (inner) case height	137 mm
Shipping (inner) case net weight	1300 g

Cable length	0.19212 m
