Produktbeskrivning

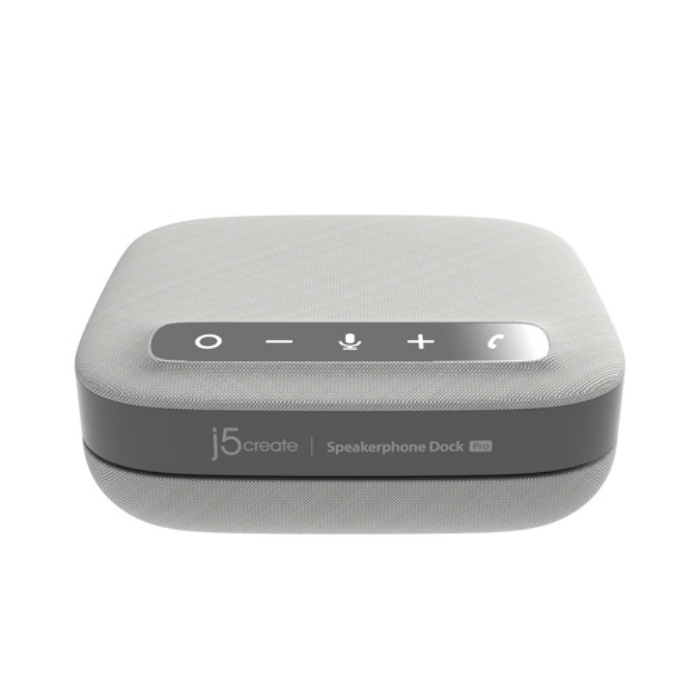

The USB-C® Dual 4K Speakerphone Dock Pro that turns your laptop into a full workstation and conferencing device. Includes two 4K HDMI™ outputs and one Type-C Power In port that supports up to 100W Power Delivery for charging laptops with a Type-C power adapter. Has two USB™ Type-A 10Gbps ports, and one USB-C® 10Gbps port for connecting a variety of USB™ devices. The docking station is also equipped with an RJ45 Gigabit Ethernet port for high-speed network connectivity. The speaker & microphone function provides crystal-clear audio for conference calls. Four omnidirectional microphones are included to pick up voices from around the conference table and uses Acoustic Echo Cancellation to eliminate echo and unwanted background noise. The built-in buttons make it simple to initiate calls, hang up and mute/unmute and adjust the volume. The speakerphone dock is small and lightweight for easy placement and transportation. It’s plug-and-play and ready to use with your favorite video conferencing apps. All docking and speakerphone functions are combined into one compact docking station, so you will have all the connections you need to stay productive!



Viktiga egenskaper

j5create JCDS337 USB-C® Dual 4K Speakerphone Dock Pro, Black. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 85 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, White, Colour name: Dark Grey, White, Data transfer rate: 10 Gbit/s. Speaker power: 5 W, Speaker frequency range: 150 - 20000 Hz, Sound pressure level: 80 dB. Input current: 5 A, Output voltage: 20 V, Output current: 4.25 A



Teknisk specifikation

Connectivity technology	Wired
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	85 W
HDMI ports quantity	2
Microphone in	No
Headphone outputs	0

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s

Product colour	Grey,White
Card reader integrated	No
Data transfer rate	10 Gbit/s
HD type	4K Ultra HD
Maximum digital resolution	3840 x 2160 pixels
Maximum refresh rate	144 Hz
Number of displays supported	2
High Dynamic Range (HDR) supported	Yes
Display modes	Mirror
Housing material	Acrylonitrile butadiene styrene (ABS),Polycarbonate (PC)
LED indicators	Yes
Country of origin	Taiwan

Built-in speaker(s)	Yes
Number of speakers	1
Speaker power	5 W
Speaker frequency range	150 - 20000 Hz
Sound pressure level	80 dB
Built-in microphone	Yes
Number of microphones	4
Microphone frequency	100 - 8000 Hz

Input current	5 A
Output voltage	20 V
Output current	4.25 A

Windows operating systems supported	Windows 10,Windows 11
Mac operating systems supported	Yes
Mobile operating systems supported	Android,iOS

Operating temperature (T-T)	0 - 48 °C
Storage temperature (T-T)	-10 - 65 °C
Operating relative humidity (H-H)	0 - 85 %
Storage relative humidity (H-H)	0 - 85 %

Sustainability compliance	Yes

Width	130 mm
Depth	47.8 mm
Height	130 mm
Weight	384.5 g

Quantity per pack	1 pc(s)
Package width	170.5 mm
Package depth	154 mm
Package height	56 mm
Package weight	684.8 g

Cables included	USB Type-C

Warranty period	2 year(s)
Compliance certificates	CE,REACH,RoHS
Master (outer) case GTIN (EAN/UPC)	24712795087738

Master (outer) case height	174 mm
Master (outer) case width	186 mm
Master (outer) case length	249 mm
Export Control Classification Number (ECCN)	EAR99
Master (outer) case net weight	3000 g
Products per master (outer) case	4 pc(s)

Cable length	1 m
