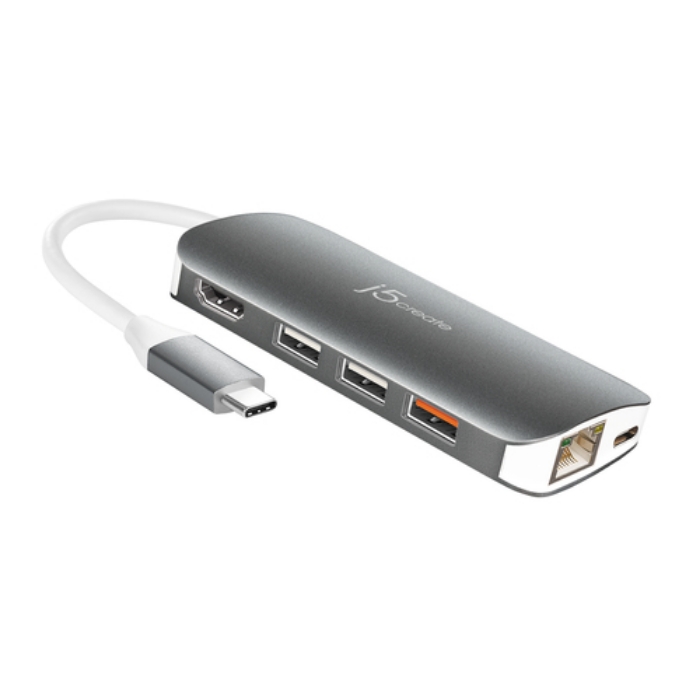

Produktbeskrivning
This pocket-sized multi-adapter provides all the ports you need for maximum productivity. It has 9 functions in 1 sleek adapter. It allows you to connect your laptop to a 4K monitor. It also connects to an ultrawide monitor. The USB-C™ multi-adapter gives you 2 USB™ Type-A ports for additional peripherals and 1 USB™ Type-A port with BC 1.2 to fast-charge your mobile device.
With USB-C® Power Delivery 3.0, the adapter offers both upstream and downstream charging when connected to a USB-C® power adapter. It also provides direct access to a wired network and to your SD™ & microSD™ memory cards.
The JCD383 is perfect for small workspaces, home offices and for on-the-go!
Viktiga egenskaper
j5create JCD383 USB-C™ 9-in-1 Multi Adapter, Silver and White. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Silver, White, Compatible memory cards: MicroSD (TransFlash), SD, Hub interfaces: HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C. Power supply: 2.4 W, Output voltage: 5.06 V, Output current: 0.49 A. Windows operating systems supported: Windows 10, Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14...
Teknisk specifikation
Ports & interfaces
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
|---|
| HDMI ports quantity | 1 |
|---|
Network
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|
Performance
| Product colour | Silver,White |
|---|
| Card reader integrated | Yes |
|---|
| Compatible memory cards | MicroSD (TransFlash),SD |
|---|
| Hub interfaces | HDMI,USB 3.2 Gen 1 (3.1 Gen 1) Type-A,USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
|---|
| Housing material | Aluminium |
|---|
| Plug and Play | Yes |
|---|
| Country of origin | Taiwan |
|---|
Power
| Power supply | 2.4 W |
|---|
| Output current | 0.49 A |
|---|
| Output voltage | 5.06 V |
|---|
Software
| Windows operating systems supported | Windows 10 |
|---|
| Mac operating systems supported | Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 10.15.3 Catalina,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,MacOS,Y |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
Weight & dimensions
| Width | 50 mm |
|---|
| Depth | 16.5 mm |
|---|
| Height | 105 mm |
|---|
| Weight | 77 g |
|---|
Packaging data
| Quantity per pack | 1 pc(s) |
|---|
| Package width | 145 mm |
|---|
| Package depth | 95 mm |
|---|
| Package height | 25 mm |
|---|
| Package weight | 126 g |
|---|
Packaging content
| Cables included | USB Type-C |
|---|
| Packaging content | 1 x JCD383 USB-C™ 9-in-1 Multi Adapter, 1 x Quick Installation Guide |
|---|
| Quick start guide | Yes |
|---|
Technical details
| Warranty period | 2 year(s) |
|---|
| Master (outer) case GTIN (EAN/UPC) | 24712795081903 |
|---|
| Box contents | 1 x JCD383 USB-C™ 9-in-1 Multi Adapter, 1 x Quick Installation Guide |
|---|
Logistics data
| Master (outer) case height | 180 mm |
|---|
| Products per master (outer) case | 20 pc(s) |
|---|
| Products per shipping (inner) case | 5 pc(s) |
|---|
| Export Control Classification Number (ECCN) | EAR99 |
|---|
| Master (outer) case length | 321 mm |
|---|
| Master (outer) case gross weight | 3130 g |
|---|
| Master (outer) case width | 225 mm |
|---|
| Shipping (inner) case width | 105 mm |
|---|
| Shipping (inner) case length | 150 mm |
|---|
| Shipping (inner) case height | 160 mm |
|---|
Other features
| Cable length | 0.137 m |
|---|
| Maximum operating temperature | 40 °C |
|---|
