Produktbeskrivning

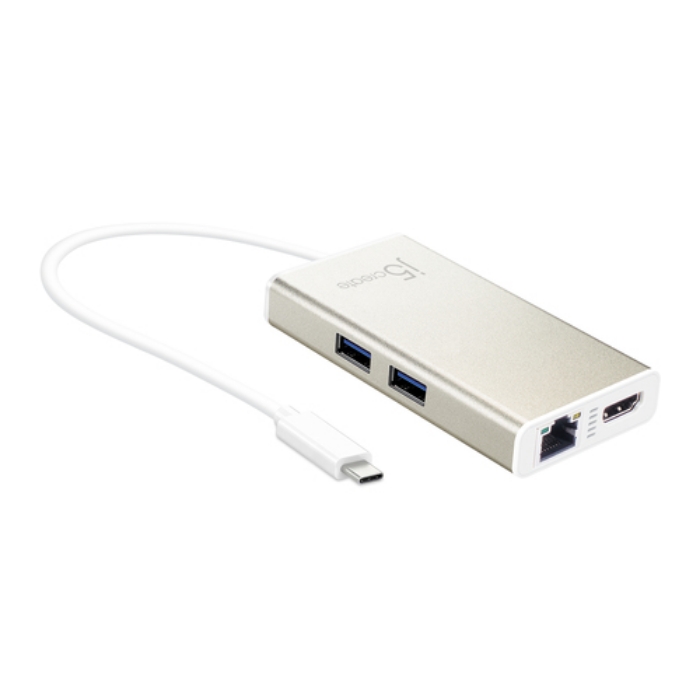

Add extra functionality to your laptop with the JCA374 USB-C® Multi-Adapter. This device allows you to add two additional USB™ peripherals, a 4K or 1080p HDMI™ display, and Gigabit Ethernet through your USB-C® port. With high-speed transmission up to 5 Gbps, data transfer is quick and easy. With USB™ Power Delivery 2.0, it supports upstream streaming ensuing your connected laptop powered up while in use.



Viktiga egenskaper

j5create JCA374-N USB Type-C Multi-Adapter. Connectivity technology: Wired, Host interface: USB Type-C, USB Power Delivery up to: 60 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Gold, White, Colour name: Metallic Champagne, Data transfer rate: 5 Gbit/s. Maximum resolution: 3840 x 2160 pixels. Output voltage: 5 V, Output current: 0.22 A, Power consumption (typical): 1.15 W



Teknisk specifikation

Connectivity technology	Wired
Host interface	USB Type-C
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	60 W
HDMI ports quantity	1
Microphone in	No
Headphone outputs	0

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s

Product colour	Gold,White
Colour name	Metallic Champagne
Card reader integrated	No
Data transfer rate	5 Gbit/s
Housing material	Aluminium
Country of origin	Taiwan
Compatibility	Macbook™ Pro 2016 & Newer Surface Pro™ 7 Surface Go™ Surfacebook™ 2

Maximum resolution	3840 x 2160 pixels

Output current	0.22 A
Output voltage	5 V
Power consumption (typical)	1.15 W
USB cable length	0.1 m

Windows operating systems supported	Yes
Mac compatibility	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Other operating systems supported	ChromeOS

Operating temperature (remote control) (T-T)	0 - 40 °C

Operating temperature (T-T)	0 - 37 °C
Storage temperature (T-T)	-10 - 65 °C

Width	50.5 mm
Depth	96.5 mm
Height	15 mm
Weight	73.5 g

Quantity per pack	1 pc(s)
Package width	193 mm
Package depth	125 mm
Package height	25 mm
Package weight	153.5 g

Drivers included	Yes
Quick start guide	Yes
Packaging content	1 x JCA374 USBxC® MultixAdapter, 1 x Quick Installation Guide

Master (outer) case GTIN (EAN/UPC)	24712795081033
Warranty period	2 year(s)
Box contents	1 x JCA374 USBxC® MultixAdapter, 1 x Quick Installation Guide

Master (outer) case width	280 mm
Master (outer) case height	235 mm
Master (outer) case length	430 mm
Products per shipping (inner) case	10 pc(s)
Products per master (outer) case	30 pc(s)
Master (outer) case gross weight	5640 g
Export Control Classification Number (ECCN)	EAR99
Shipping (inner) case width	212 mm
Shipping (inner) case length	269 mm
Shipping (inner) case height	130 mm
Shipping (inner) case net weight	1540 g

USB ports quantity	3
Cable length	0.1 m
Voltage	5 V
Compatible operating systems	Windows® 10 / 8.1 macOS® 10.10 and later Chrome OS™
Cable type	USB-C
Special features	Power your laptop with up to 60W pass-through charging, Backwards compatible with USB™ 2.0 and 1.1 hosts and devices
