Produktbeskrivning

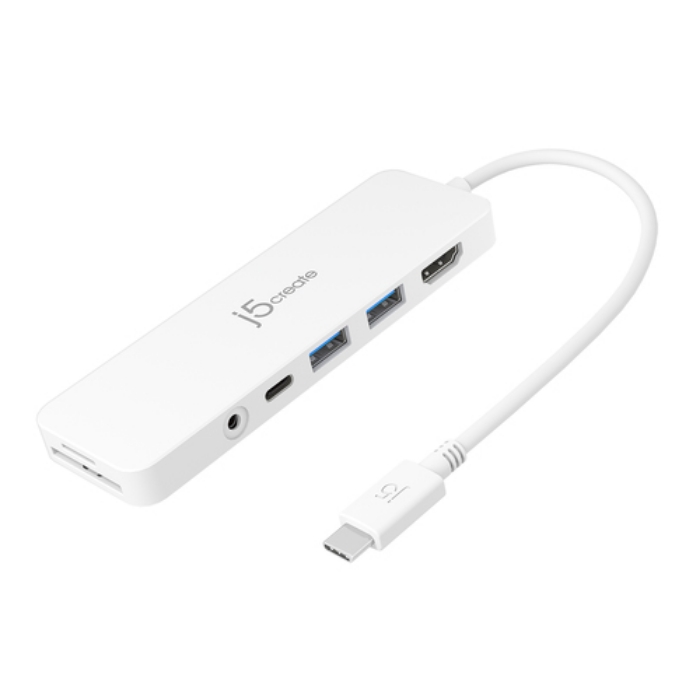

Our USB-C® Multi-Port Hub with Power Delivery provides extra connectivity for your computer. This pocket-sized multi-adapter with 2 USB™ 3.1 Type-A ports allows you to connect an external keyboard, mouse, or USB™ flash drive. With high-speed transmission up to 5 Gbps, data transfer is quick and easy. The HDMI™ port allows you to mirror or extend your screen and directly output 4K UHD @ 30 Hz or Full HD 1080p video to an HDTV, monitor, or projector.
Equipped with a USB-C® Power Delivery 3.0 charging port. It offers charging up to 60W when connected to a USB-C® power adapter. The hub also provides direct access to your SD™ & microSD™ memory cards. The audio/mic combo jack allows you to connect your headphone set or speakers.
Viktiga egenskaper
j5create JCD373-N USB-C® Lightweight Multi Adapter. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 60 W. Product colour: White, Compatible memory cards: MicroSD (TransFlash), SD, HD type: 4K Ultra HD. Input current: 3 A, Power supply type: USB, Output voltage: 5 V. Windows operating systems supported: Windows 10, Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14.... Width: 39 mm, Depth: 11 mm, Height: 122 mm
Teknisk specifikation
Ports & interfaces
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
|---|
| USB Power Delivery (USB PD) | Yes |
|---|
| USB Power Delivery revision | 3.0 |
|---|
| USB Power Delivery up to | 60 W |
|---|
| HDMI ports quantity | 1 |
|---|
| Combo headphone/mic port | Yes |
|---|
Performance
| Product colour | White |
|---|
| Card reader integrated | Yes |
|---|
| Compatible memory cards | MicroSD (TransFlash),SD |
|---|
| HD type | 4K Ultra HD |
|---|
| Maximum refresh rate | 30 Hz |
|---|
| Hub interfaces | 3.5mm,HDMI,USB 3.2 Gen 1 (3.1 Gen 1) Type-A,USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
|---|
| Plug and Play | Yes |
|---|
| Housing material | Acrylonitrile butadiene styrene (ABS) |
|---|
| Country of origin | Taiwan |
|---|
Power
| Input current | 3 A |
|---|
| Power supply type | USB |
|---|
| Output voltage | 5 V |
|---|
| Output current | 0.38 A |
|---|
| Power consumption (typical) | 1.96 W |
|---|
Software
| Windows operating systems supported | Windows 10 |
|---|
| Mac operating systems supported | Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 10.15.3 Catalina,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Y |
|---|
| Linux operating systems supported | No |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -17 - 68 °C |
|---|
| Operating relative humidity (H-H) | 0 - 85 % |
|---|
| Storage relative humidity (H-H) | 0 - 85 % |
|---|
Weight & dimensions
| Width | 39 mm |
|---|
| Depth | 11 mm |
|---|
| Height | 122 mm |
|---|
| Weight | 51.5 g |
|---|
Packaging data
| Quantity per pack | 1 pc(s) |
|---|
| Package width | 193 mm |
|---|
| Package depth | 125 mm |
|---|
| Package height | 25 mm |
|---|
| Package weight | 100 g |
|---|
Packaging content
| Quick start guide | Yes |
|---|
| Cables included | USB Type-C |
|---|
| Packaging content | 1 x JCD373 USBxC® MultixPort Hub with Power Delivery, 1 x Quick Installation Guide |
|---|
Technical details
| Warranty period | 2 year(s) |
|---|
Other features
| Cable length | 0.15 m |
|---|
| Maximum operating temperature | 40 °C |
|---|
