Produktbeskrivning

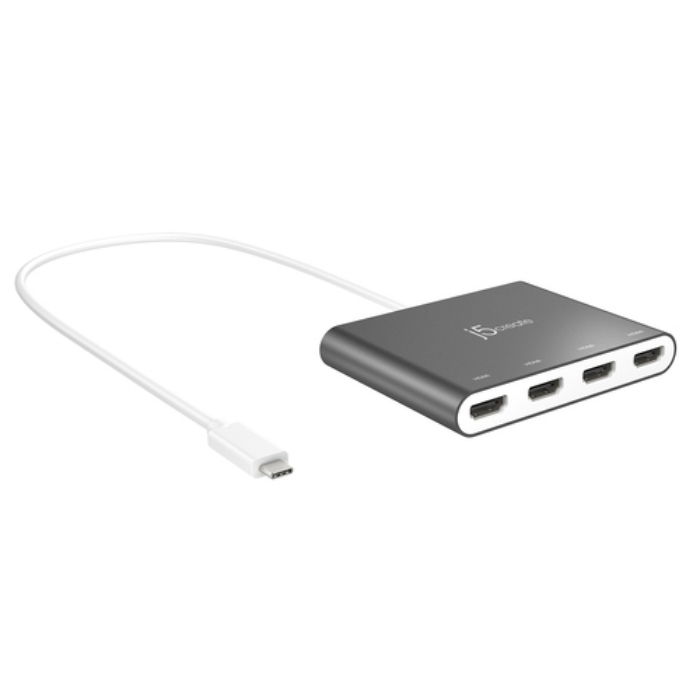

The USB-C® to 4-port HDMI™ Multi-Monitor Adapter functions as an external video card for your MacBook® or personal computer. It allows you to add four additional monitors/displays through your USB-C® port. This is the perfect alternative to a costly video card. With the JCA366, you can quickly install the driver with a simple USB-C® plug-in. Afterwards, connect your device to your monitors using HDMI™ cables and you have just created a new visual environment in seconds. With this multi-monitor adapter, you can extend your desktop across multiple displays, clone one screen onto another, and have individual applications displayed on each monitor. You can also enable additional features with the Multi-Monitor Assistant Application for your Windows® devices.
Viktiga egenskaper
j5create JCA366-N USB-C™ to 4-Port HDMI™ Multi-Monitor Adapter, Silver. USB version: 3.2 Gen 1 (3.1 Gen 1), USB connector type: USB Type-C, USB connector gender: Male. Product colour: Silver, Housing material: Aluminium. Power consumption (max): 4.5 W, Output voltage: 5 V. Windows operating systems supported: Windows 10, Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina,..., Minimum processor family: Core i5, Core i7. Width: 101.5 mm, Depth: 16 mm, Height: 79.5 mm
Teknisk specifikation
Performance
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
|---|
| USB connector type | USB Type-C |
|---|
| USB connector gender | Male |
|---|
| USB connector form factor | Straight |
|---|
| DVI output | No |
|---|
| HDMI output | Yes |
|---|
| DisplayPort output | No |
|---|
| Number of displays supported | 4 |
|---|
| HDMI ports quantity | 4 |
|---|
| Maximum resolution | 1920 x 1080 pixels |
|---|
| Refresh rate at maximum resolution | 60 Hz |
|---|
| Maximum resolution (HDMI) | 1920 x 1080 pixels |
|---|
| Supported video modes | 1080p |
|---|
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
|---|
| Extended display mode | Yes |
|---|
| Current | 0.9 A |
|---|
| Data transfer rate (max) | 5 Gbit/s |
|---|
Design
| Product colour | Silver |
|---|
| Housing material | Aluminium |
|---|
| Integrated USB cable | Yes |
|---|
Power
| Power consumption (max) | 4.5 W |
|---|
| Output voltage | 5 V |
|---|
System requirements
| Windows operating systems supported | Windows 10 |
|---|
| Mac compatibility | Yes |
|---|
| Mac operating systems supported | Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey |
|---|
| Linux operating systems supported | No |
|---|
| Minimum processor family | Core i5,Core i7 |
|---|
| Minimum RAM | 4 GB |
|---|
Weight & dimensions
| Width | 101.5 mm |
|---|
| Depth | 16 mm |
|---|
| Height | 79.5 mm |
|---|
| Weight | 152.5 g |
|---|
| USB cable length | 0.5 m |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -10 - 71 °C |
|---|
| Operating relative humidity (H-H) | 0 - 85 % |
|---|
| Storage relative humidity (H-H) | 0 - 85 % |
|---|
Packaging data
| Package width | 193 mm |
|---|
| Package depth | 125 mm |
|---|
| Package height | 22.5 mm |
|---|
| Package weight | 217.5 g |
|---|
Packaging content
| Quick installation guide | Yes |
|---|
| Manual | Yes |
|---|
| Packaging content | 1 x JCA366 USB-C® to 4-Port HDMI™ Multi-Monitor Adapter, 1 x Quick Installation Guide |
|---|
Technical details
| Warranty period | 2 year(s) |
|---|
Logistics data
| Products per master (outer) case | 18 pc(s) |
|---|
| Master (outer) case GTIN (EAN/UPC) | 24712795083938 |
|---|
| Master (outer) case width | 226 mm |
|---|
| Master (outer) case length | 445 mm |
|---|
| Master (outer) case height | 190 mm |
|---|
| Master (outer) case gross weight | 4860 g |
|---|
| Export Control Classification Number (ECCN) | EAR99 |
|---|
| Country of origin | Taiwan |
|---|
