Produktbeskrivning

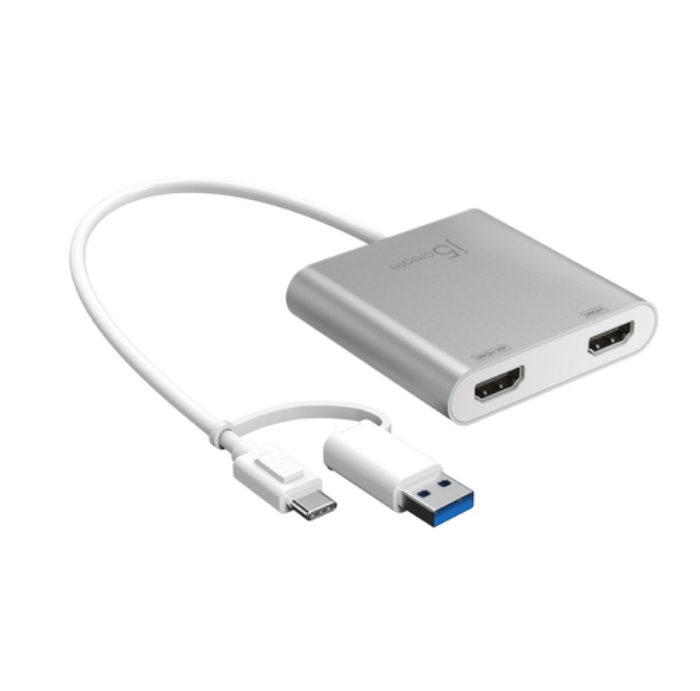

The JCA365 USB-C® to Dual HDMI™ Multi-Monitor Adapter acts as an external video card for your MacBook® or Windows® laptops. It allows you to add two additional displays through your USB-C® port, boosting your productivity by giving you more screen space to work from. One of the HDMI™ ports can output resolutions up to 4K, while the other can output resolutions up to 2048 x 1152.
Simply install the driver for the USB-C® to Dual HDMI™ Multi-Monitor Adapter by plugging-in the adapter and then connect your monitors using HDMI™ cables for a dual-display workstation!
Viktiga egenskaper
j5create JCA365-N USB-C® to Dual HDMI™ Multi-Monitor Adapter. USB version: 3.2 Gen 1 (3.1 Gen 1), USB connector type: USB Type-A, USB Type-C, USB connector gender: Male. Product colour: Silver, Housing material: Aluminium, Cable type: USB-C/USB 3.0. Power consumption (max): 1.46 W, Output voltage: 5 V. Windows operating systems supported: Windows 10, Windows 7, Windows 8.1, Yes, Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High..., Minimum processor family: Core i3, Core i5, Core i7. Width: 68 mm, Depth: 15 mm, Height: 61 mm
Teknisk specifikation
Performance
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
|---|
| USB connector type | USB Type-A,USB Type-C |
|---|
| USB connector gender | Male |
|---|
| USB connector form factor | Straight |
|---|
| DVI output | No |
|---|
| HDMI output | Yes |
|---|
| DisplayPort output | No |
|---|
| Number of displays supported | 2 |
|---|
| HDMI ports quantity | 2 |
|---|
| Maximum resolution | 3840 x 2160 pixels |
|---|
| Refresh rate at maximum resolution | 30 Hz |
|---|
| Supported graphics resolutions | 2048 x 1152,3840 x 2160 |
|---|
| Mirror display mode | Yes |
|---|
| Extended display mode | Yes |
|---|
| Current | 0.29 A |
|---|
Design
| Product colour | Silver |
|---|
| Housing material | Aluminium |
|---|
| Integrated USB cable | Yes |
|---|
| Cable type | USB-C/USB 3.0 |
|---|
Power
| Power consumption (max) | 1.46 W |
|---|
| Output voltage | 5 V |
|---|
System requirements
| Mac compatibility | Yes |
|---|
| Windows operating systems supported | Windows 10,Windows 7,Windows 8.1,Y |
|---|
| Mac operating systems supported | Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 10.15.3 Catalina,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks,Mac OS X 11.0 Big Sur,Mac OS X 1 |
|---|
| Minimum processor family | Core i3,Core i5,Core i7 |
|---|
| Minimum processor speed | 1.8 GHz |
|---|
| Minimum RAM | 4 GB |
|---|
Weight & dimensions
| Width | 68 mm |
|---|
| Depth | 15 mm |
|---|
| Height | 61 mm |
|---|
| Weight | 84 g |
|---|
| USB cable length | 0.2 m |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -10 - 65 °C |
|---|
| Operating relative humidity (H-H) | 0 - 85 % |
|---|
| Storage relative humidity (H-H) | 0 - 85 % |
|---|
Packaging data
| Package width | 145 mm |
|---|
| Package depth | 95 mm |
|---|
| Package height | 25 mm |
|---|
| Package weight | 114.5 g |
|---|
Packaging content
| Cables included | USB Type-C |
|---|
| Quick installation guide | Yes |
|---|
| Manual | Yes |
|---|
| Packaging content | 1 x USB-C® to Dual HDMI™ Multi-Monitor Adapter (JCA365)
1 x Quick Installation Guide (QIG) |
|---|
Technical details
| Warranty period | 2 year(s) |
|---|
Logistics data
| Products per master (outer) case | 20 pc(s) |
|---|
| Master (outer) case GTIN (EAN/UPC) | 24712795086410 |
|---|
| Master (outer) case width | 225 mm |
|---|
| Master (outer) case length | 321 mm |
|---|
| Master (outer) case height | 180 mm |
|---|
| Master (outer) case gross weight | 2910 g |
|---|
| Export Control Classification Number (ECCN) | EAR99 |
|---|
| Country of origin | Taiwan |
|---|
