Produktbeskrivning

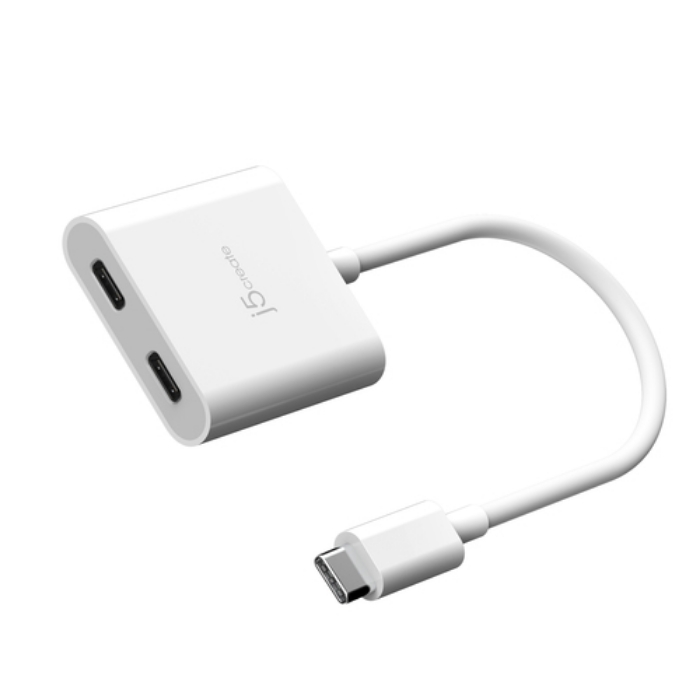

The JCA164 adapter could separate video/data/power function form your laptop, tablet, or smartphone. The adapter’s small size makes it easy to transport and place on a desk while saving space. This adapter allows you to connect a display such as a VR/AR glasses or portable USB-C® monitor to your device and supports resolutions up to 4K 240 Hz and it also support a 480 Mbps data transport. Another USB-C® Power Delivery port that can be used to charge your host when a USB-C® power adapter is connected. The 4K240 Hz USB-C® port supports Extended, and Mirrored display modes. This USB-C® port also support 480 Mbps data transport that allows you to connect USB™ peripherals such as a USB™ flash drive, keyboard, or mouse. Another USB-C® port supports upstream charging and Power Delivery 3.0 100W to keep your connected mobile device powered up while in use.



Viktiga egenskaper

j5create USB-C to Dual USB-C with Video or Power Delivery. Cable length: 0.1 m, Connector 1: USB Type-C, Connector 2: USB Type-C. Compliance certificates: CE, REACH, RoHS. Weight: 23.2 g, Width: 42 mm, Depth: 42 mm. Package width: 145 mm, Package depth: 95 mm, Package height: 25 mm. Quantity per pack: 1 pc(s)



Teknisk specifikation

Cable length	0.1 m
Connector 1	USB Type-C
Connector 2	USB Type-C
Connector 1 gender	Male
Connector 2 gender	Female
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Power source	USB
Maximum resolution	3840 x 2160 pixels
Supported video modes	1080p,1440p,2160p
Supported graphics resolutions	1920 x 1080 (HD 1080),2560 x 1440,3840 x 2160
Refresh rate at maximum resolution	30 Hz
Maximum refresh rate	240 Hz
Voltage rating	20 V
Product colour	White
Cable type	Round cable
Jacket material	Acrylonitrile butadiene styrene (ABS),Plastic
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Country of origin	Taiwan
Other operating systems supported	ChromeOS

Operating temperature (T-T)	-1 - 41 °C
Storage temperature (T-T)	-17 - 68 °C
Operating relative humidity (H-H)	0 - 85 %
Storage relative humidity (H-H)	0 - 85 %

Sustainability compliance	Yes

Weight	23.2 g
Width	42 mm
Depth	42 mm
Height	11 mm

Quantity per pack	1 pc(s)
Package width	145 mm
Package depth	95 mm
Package height	25 mm
Package type	Box
Package weight	55.5 g

Warranty period	2 year(s)
Compliance certificates	CE,REACH,RoHS

Export Control Classification Number (ECCN)	EAR99
Shipping (inner) case net weight	400 g
Master (outer) case width	225 mm
Master (outer) case length	321 mm
Master (outer) case height	180 mm
Master (outer) case gross weight	2500 g
Products per master (outer) case	20 pc(s)
Master (outer) case GTIN (EAN/UPC)	24712795088773
Shipping (inner) case width	105 mm
Shipping (inner) case length	150 mm
Shipping (inner) case height	160 mm
Products per shipping (inner) case	5 pc(s)
