Produktbeskrivning

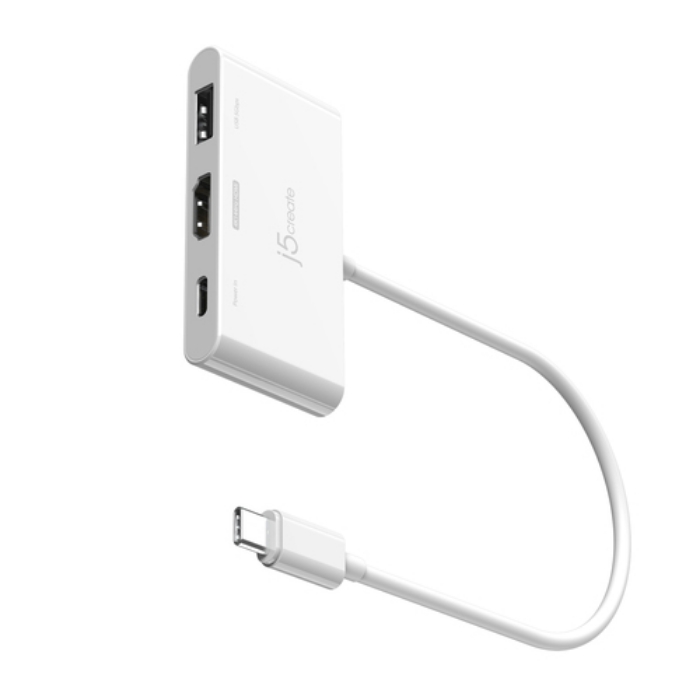

The JCA399 adapter adds extra functionality to your laptop, tablet, or smartphone. The adapter’s small size makes it easy to transport and place on a desk while saving space. This adapter allows you to connect a display such as a monitor or TV to your device and supports resolutions up to 4K 144 Hz. Includes a 5Gbps USB™ Type-A port and a USB-C® Power Delivery port that can be used to charge your laptop when a USB-C® power adapter is connected. The 4K144 HDMI™ port supports Extended, and Mirrored display modes. It come with a 5Gbps USB™ Type-A that allows you to connect USB™ peripherals such as a USB™ flash drive, keyboard, or mouse. The USB-C® port supports upstream charging and Power Delivery 3.0 100W to keep your connected mobile device powered up while in use.



Viktiga egenskaper

j5create JCA399 USB-C® to HDMI™ 4K144Hz & USB™ 3.2 with Power Delivery 100W, Black. Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, Hub interfaces: HDMI, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C. Data transfer rate: 5000 Mbit/s, Maximum refresh rate: 144 Hz, Supported graphics resolutions: 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160. Power supply type: USB, Input voltage: 20 V, Input current: 5 A. Other operating systems supported: ChromeOS. Width: 75 mm, Depth: 11 mm, Height: 45 mm



Teknisk specifikation

Ports quantity	3
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Hub interfaces	HDMI,USB 3.2 Gen 2 (3.1 Gen 2) Type-A,USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI ports quantity	1
USB Type-C DisplayPort Alternate Mode	Yes

Data transfer rate	5000 Mbit/s
Maximum refresh rate	144 Hz
Supported graphics resolutions	1920 x 1080 (HD 1080),2560 x 1440,3840 x 2160
Supported video modes	1080p,1440p,2160p
Maximum resolution (HDMI)	3840 x 2160 pixels
Product colour	White
Housing material	Acrylonitrile butadiene styrene (ABS),Plastic
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
Cable length	0.2 m
Country of origin	Taiwan

Power supply type	USB
Input voltage	20 V
Input current	5 A
Output voltage	20 V
Output current	4.5 A

Windows operating systems supported	Yes
Mac operating systems supported	Yes
Other operating systems supported	ChromeOS

Width	75 mm
Depth	11 mm
Height	45 mm
Weight	31.5 g

Quantity per pack	1 pc(s)
Package width	170 mm
Package depth	105 mm
Package height	25 mm
Package weight	101 g
Package type	Box

Minimum operating temperature	-1 °C
Maximum operating temperature	41 °C
Operating temperature (T-T)	-1 - 41 °C
Operating temperature (T-T)	30 - 106 °F
Storage temperature (T-T)	-17 - 68 °C

Export Control Classification Number (ECCN)	EAR99

Sustainability compliance	Yes

Master (outer) case net weight	2300 g
Master (outer) case width	255 mm
Master (outer) case length	260 mm
Master (outer) case height	224 mm
Products per master (outer) case	16 pc(s)
Master (outer) case GTIN (EAN/UPC)	24712795088209
Shipping (inner) case width	118 mm
Shipping (inner) case length	199 mm
Shipping (inner) case height	117 mm
Products per shipping (inner) case	4 pc(s)
Shipping (inner) case net weight	500 g

Compliance certificates	CE,REACH,RoHS
Warranty period	2 year(s)

Maximum resolution	3840 x 2160 pixels
