Produktbeskrivning

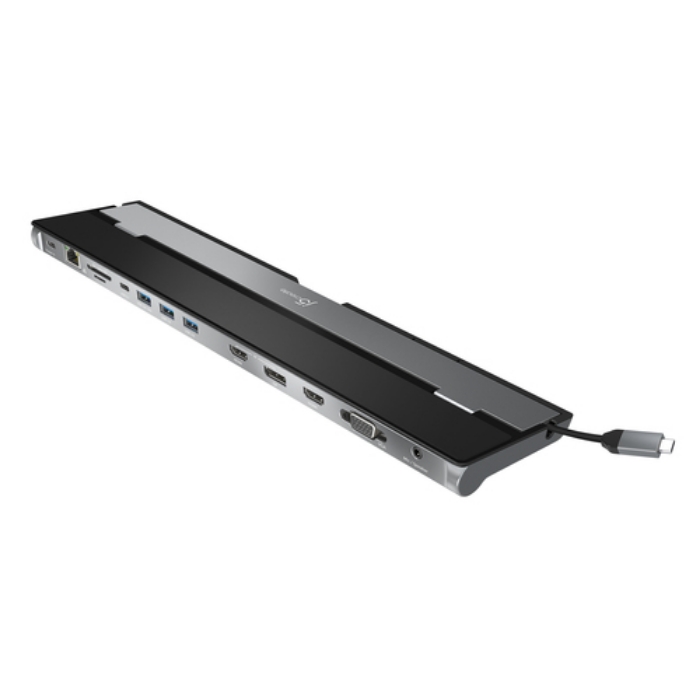

The USB-C™ Triple Display Docking Station provides extra connectivity from your computer. Extend up to three monitors through HDMI™, VGA, and DisplayPort™ or HDMI™. This docking station is designed to be used as a notebook stand, which assists with heat dissipation. With its flexible USB-C™ cord, it keeps in mind the location of the USB-C™ port on your device, ensuring an easy connection.

These multi-adapters allow you to add an additional USB™ 3.1/SD™/microSD™ computer peripheral, HDMI™/DisplayPort™/VGA monitor and Gigabit Ethernet through your USB™ port. One of the USB™ Type-A ports supports fast charging BC1.2 for a smartphone, tablet or iPad®. The USB-C™ port supports power delivery 3.0, allowing you to keep charging your notebook or smartphone while using the adapter.



Viktiga egenskaper

j5create JCD543 USB-C™ Triple Display Docking Station. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Product colour: Black, Silver, Compatible memory cards: MicroSD (TransFlash), SD, HD type: 4K Ultra HD. Input current: 5 A, Output voltage: 20 V, Output current: 0.9 A. Windows operating systems supported: Windows 10, Windows 11, Yes, Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14...



Teknisk specifikation

Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
HDMI ports quantity	2
VGA (D-Sub) ports quantity	1
Microphone in	Yes
Headphone outputs	1
USB Type-C DisplayPort Alternate Mode	Yes

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x

Product colour	Black,Silver
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),SD
HD type	4K Ultra HD
Maximum refresh rate	60 Hz
Number of displays supported	3
Hub interfaces	DisplayPort,HDMI,RJ-45,USB 3.2 Gen 1 (3.1 Gen 1) Type-A,USB 3.2 Gen 1 (3.1 Gen 1) Type-C,VGA
Housing material	Aluminium
Country of origin	Taiwan

Input current	5 A
Output voltage	20 V
Output current	0.9 A
Power consumption (typical)	4.5 W
Power plug type	Type C

Windows operating systems supported	Windows 10,Windows 11,Y
Mac operating systems supported	Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Mac OS X 13.0 Ventura,Mac OS X 14.0 Sonoma,MacOS,Y

Operating temperature (T-T)	0 - 48 °C
Storage temperature (T-T)	-10 - 65 °C
Operating relative humidity (H-H)	0 - 85 %
Storage relative humidity (H-H)	0 - 85 %

Width	82.5 mm
Depth	350 mm
Height	23.4 mm
Weight	355 g

Quantity per pack	1 pc(s)
Package width	88 mm
Package depth	358 mm
Package height	28 mm
Package weight	433 g

Quick start guide	Yes
Manual	Yes
AC adapter included	No
Cables included	USB Type-C
Packaging content	1 x USB-C™ Triple Monitor Docking Station, 1 x Quick Installation Guide, 1 x 100W USB-C™ Power Adapter

Warranty period	2 year(s)

Maximum operating temperature	48 °C
Cable length	0.45 m
