Produktbeskrivning

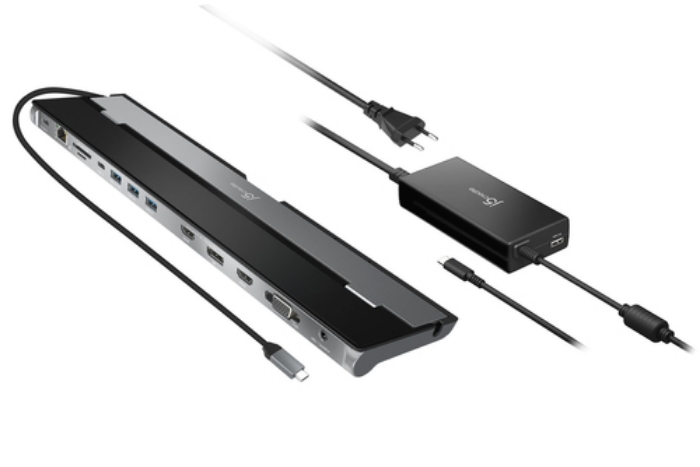

This triple display docking station turns your Mac® or Windows® laptop into a full workstation with a DisplayPort™ output, two HDMI™ outputs, and a VGA output, with resolution support up to 4K (3840 x 2160) on two displays and 1080p on the other one. You can also use your laptop screen for four displays in total, making it easy to access multiple applications at once. With 100W Power Delivery, three USB™ 3.0 ports, and a USB-C™ port, the docking station is perfect for your MacBook®, Dell® XPS™, or other USB-C™ laptop requiring additional ports.
This USB™ 3.0 docking station is also equipped with an RJ45 Gigabit Ethernet port, memory card reader/writer, and combo audio jack for maximum productivity. The elevated design assists with heat dissipation and, with its double-sided cable storage compartment, ensures an easy connection regardless of your USB-C™ port’s location.
All 13 ports are combined into one slim docking station, so you’ll have all the connections you need to stay productive!
Viktiga egenskaper
j5create JCD543P USB-C™ Triple Display Docking Station with 100W PD Adapter. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Silver, Colour name: Silver and Black, Compatible memory cards: MicroSD (TransFlash), SD. Power source type: DC, USB, Power connector: USB Type-C, AC input voltage: 110 - 220 V. Windows operating systems supported: Windows 10, Windows 11, Yes, Mac operating systems supported: Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac...
Teknisk specifikation
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
|---|
| USB 2.0 ports quantity | 0 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
|---|
| USB Power Delivery (USB PD) | Yes |
|---|
| USB Power Delivery revision | 3.0 |
|---|
| USB Power Delivery up to | 100 W |
|---|
| HDMI ports quantity | 2 |
|---|
| VGA (D-Sub) ports quantity | 1 |
|---|
| DisplayPorts quantity | 1 |
|---|
| Microphone in | No |
|---|
| Combo headphone/mic port | Yes |
|---|
| Headphone outputs | 1 |
|---|
| Headphone connectivity | 3.5 mm |
|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|
Performance
| Product colour | Black,Silver |
|---|
| Colour name | Silver and Black |
|---|
| Card reader integrated | Yes |
|---|
| Compatible memory cards | MicroSD (TransFlash),SD |
|---|
| Data transfer rate | 5 Gbit/s |
|---|
| HD type | 4K Ultra HD |
|---|
| Maximum digital resolution | 3840 x 1080 pixels |
|---|
| Maximum analog resolution | 1920 x 1080 pixels |
|---|
| Number of displays supported | 3 |
|---|
| Display modes | Extended,Mirror |
|---|
| Housing material | Aluminium |
|---|
| Country of origin | Taiwan |
|---|
| Compatibility | Macbook™ Pro 2016 & Newer
Surface Pro™ 7
Surface Go™
Surfacebook™ 2
Available USB-C™ port that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0 |
|---|
Power
| Power source type | DC,USB |
|---|
| Power connector | USB Type-C |
|---|
| AC input voltage | 110 - 220 V |
|---|
| Input current | 0.8 A |
|---|
| Power supply | 100 W |
|---|
| Output voltage | 20 V |
|---|
| Output current | 4.75 A |
|---|
| Power consumption (typical) | 4.5 W |
|---|
| USB cable length | 0.45 m |
|---|
Software
| Windows operating systems supported | Windows 10,Windows 11,Y |
|---|
| Mac operating systems supported | Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Mac OS X 13.0 Ventura,Mac OS X 14.0 Sonoma,MacOS,Y |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 48 °C |
|---|
| Storage temperature (T-T) | -10 - 65 °C |
|---|
| Operating relative humidity (H-H) | 0 - 85 % |
|---|
| Storage relative humidity (H-H) | 0 - 85 % |
|---|
Weight & dimensions
| Width | 82.5 mm |
|---|
| Depth | 350 mm |
|---|
| Height | 23.37 mm |
|---|
| Weight | 300 g |
|---|
Packaging data
| Quantity per pack | 1 pc(s) |
|---|
| Package width | 89.3 mm |
|---|
| Package depth | 358 mm |
|---|
| Package height | 63.5 mm |
|---|
| Package weight | 889.5 g |
|---|
Packaging content
| Packaging content | 1 - JCD543P USB-C™ Triple Display Docking Station
1 - JUP2290 100W USB-C™ Super Charger
1 - Quick Installation Guide |
|---|
| Cables included | USB Type-C |
|---|
| Quick start guide | Yes |
|---|
| AC adapter included | Yes |
|---|
Technical details
| Warranty period | 2 year(s) |
|---|
Logistics data
| Export Control Classification Number (ECCN) | EAR99 |
|---|
| Master (outer) case height | 123 mm |
|---|
| Master (outer) case length | 398 mm |
|---|
| Master (outer) case width | 150 mm |
|---|
| Master (outer) case gross weight | 2000 g |
|---|
| Products per master (outer) case | 2 pc(s) |
|---|
Other features
| Special features | Simultaneous DisplayPort™, HDMI™ and VGA Output, 13 ports in one sleek design for all your needs |
|---|
| I/O ports | 2 - USB™ 3.0 Type-A
1 - USB™ 3.0 Type-A fast charge
1 - USB-C™ 3.1 Gen 1
1 - USB-C™ Power Delivery 3.0
2 - 4K HDMI™
1 - DisplayPort™
1 - VGA
1 - SD™ & microSD™ memory card reader/writer
1 - RJ45 Gigabit Ethernet
|
|---|
