Produktbeskrivning

This high-performance USB4® multi-port hub is the first USB-C® hub to incorporate the latest USB4® controller from Intel®, offering compatibility with Thunderbolt™ and older USB™ specifications.

With up to 20Gbps of throughput, dynamic data, and display bandwidth allocation for efficient display data flow, you can easily create a dual-monitor setup. Enjoy up to 4K resolution using DisplayPort™, HDMI™, or USB-C® and access data faster without affecting system performance. Additionally, it has two USB™ SuperSpeed+ 10Gbps ports (1 USB-C® and 1 Type-A) for charging or connecting peripherals. It is also equipped with a USB-C® Power Delivery port to charge your laptop and power your connected devices with up to 85W pass-through power.



Viktiga egenskaper

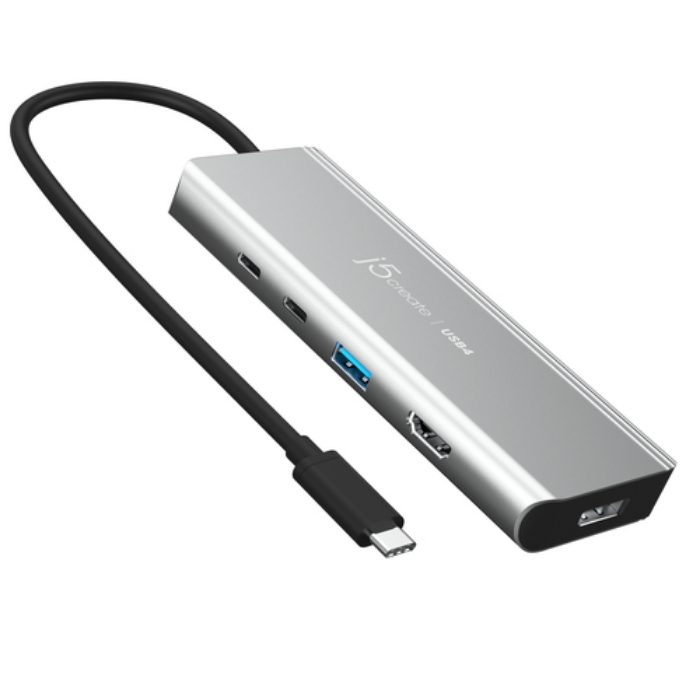

j5create JCD401 USB4™ Dual 4K Multi-Port Hub, Silver. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 85 W. Product colour: Silver, Data transfer rate: 10 Gbit/s, HD type: 4K Ultra HD. Power source type: USB, Power connector: USB Type-C, Output voltage: 20 V. Width: 51 mm, Depth: 200 mm, Height: 135 mm. Quantity per pack: 1 pc(s), Package width: 193 mm, Package depth: 125 mm



Teknisk specifikation

Connectivity technology	Wired
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB4 ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	85 W
HDMI ports quantity	1
DisplayPorts quantity	1
Microphone in	No
Headphone outputs	0
USB Type-C DisplayPort Alternate Mode	Yes

Ethernet LAN	No

Product colour	Silver
Card reader integrated	No
Data transfer rate	10 Gbit/s
HD type	4K Ultra HD
Number of displays supported	2
Maximum refresh rate	60 Hz
Hub interfaces	DisplayPort,HDMI,Mini DisplayPort,USB 3.2 Gen 2 (3.1 Gen 2) Type-A,mini DisplayPort
Plug and Play	Yes
Housing material	Aluminium
Country of origin	Taiwan
Compatibility	Thunderbolt™ 4 computers Thunderbolt™ 3 computers USB4® computers

Power source type	USB
Power connector	USB Type-C
Output current	0.25 A
Output voltage	20 V
Power consumption (typical)	1.25 W
USB cable length	0.2 m

Windows operating systems supported	Yes
Mac operating systems supported	Yes

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-17 - 68 °C
Operating relative humidity (H-H)	0 - 85 %
Storage relative humidity (H-H)	0 - 85 %

Width	51 mm
Depth	200 mm
Height	135 mm
Weight	109 g

Quantity per pack	1 pc(s)
Package width	193 mm
Package depth	125 mm
Package height	22.5 mm
Package weight	177 g

Manual	Yes
Quick start guide	Yes
Cables included	USB Type-C

Master (outer) case GTIN (EAN/UPC)	24712795086342
Warranty period	2 year(s)

Master (outer) case height	190 mm
Master (outer) case width	226 mm
Master (outer) case length	445 mm
Master (outer) case gross weight	4100 g
Export Control Classification Number (ECCN)	EAR99
Products per shipping (inner) case	6 pc(s)
Products per master (outer) case	18 pc(s)
Shipping (inner) case width	165 mm
Shipping (inner) case length	212 mm
Shipping (inner) case height	137 mm
Shipping (inner) case net weight	1200 g

Special features	Intel® USB4® controller ensures industry-leading quality and reliability, Up to two 4K displays with flexible monitor connections, Power Delivery 3.0 offers up to 85W of pass-through charging with a USB-C® power adapter
