Produktbeskrivning

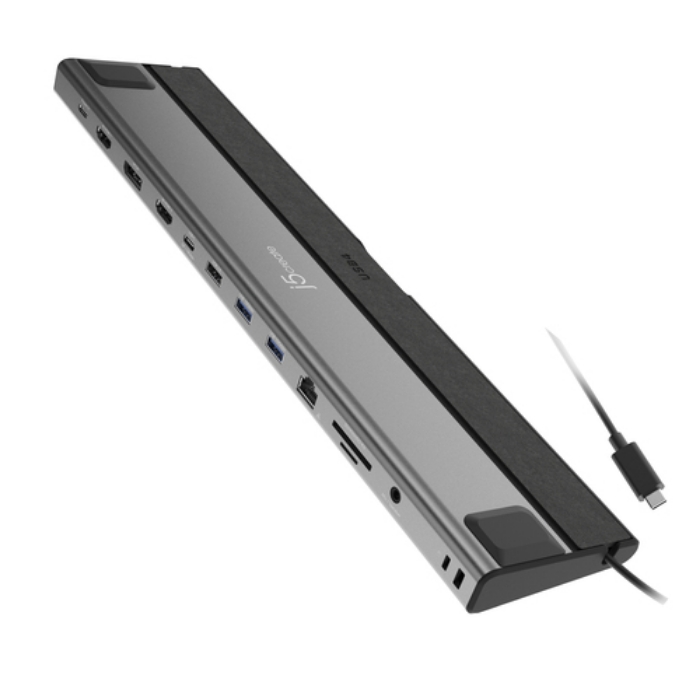

This high-performance USB4® Triple 4K Display Docking Station is the first USB-C® docking to incorporate a USB4® controller from Intel®, offering compatibility with Thunderbolt™ 4 and USB4® laptops. No driver installation is required for use making it an easy-to-use docking station solution. With up to 40Gbps of throughput and dynamic data and display bandwidth allocation for efficient display data flow, you can easily create a Triple-monitor setup with up 4K resolution using DisplayPort™, HDMI™ or USB-C® and access data faster without affecting system performance. Additionally, it has three USB™ 3.2 10Gbps ports (1 USB-C® and 2 Type-A) for charging or connecting peripherals, as well as a USB-C® Power Delivery port to charge your laptop and power your connected devices with up to 85W passthrough power. A USB™ 2.0 port is also included for connecting your wireless USB™ mouse or keyboard with reduced latency.
Viktiga egenskaper
j5create JCD554 USB4® Triple 4K Display Docking Station, Black. Connectivity technology: Wired, Host interface: USB4, USB Power Delivery up to: 85 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Grey, Compatible memory cards: MicroSD (TransFlash), SD, Data transfer rate: 10 Gbit/s. Power source type: USB, Input current: 3 A, Output voltage: 20 V. Width: 344 mm, Depth: 23.6 mm, Height: 81.4 mm
Teknisk specifikation
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Host interface | USB4 |
|---|
| USB 2.0 ports quantity | 1 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
|---|
| USB Power Delivery (USB PD) | Yes |
|---|
| USB Power Delivery revision | 3.0 |
|---|
| USB Power Delivery up to | 85 W |
|---|
| HDMI ports quantity | 2 |
|---|
| DisplayPorts quantity | 1 |
|---|
| Microphone in | Yes |
|---|
| Combo headphone/mic port | Yes |
|---|
| Headphone outputs | 1 |
|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|
Performance
| Product colour | Black,Grey |
|---|
| Card reader integrated | Yes |
|---|
| Compatible memory cards | MicroSD (TransFlash),SD |
|---|
| Data transfer rate | 10 Gbit/s |
|---|
| HD type | 4K Ultra HD |
|---|
| Maximum digital resolution | 3840 x 2160 pixels |
|---|
| Number of displays supported | 3 |
|---|
| Maximum refresh rate | 144 Hz |
|---|
| Cable lock slot | Yes |
|---|
| Cable lock slot type | Kensington |
|---|
| Display modes | Extended,Mirror |
|---|
| Hub interfaces | USB 3.2 Gen 2 (3.1 Gen 2) Type-A |
|---|
| Plug and Play | Yes |
|---|
| Housing material | Aluminium |
|---|
| Country of origin | Taiwan |
|---|
Power
| Power source type | USB |
|---|
| Input current | 3 A |
|---|
| Output current | 4.25 A |
|---|
| Output voltage | 20 V |
|---|
| Power consumption (typical) | 4.5 W |
|---|
| Power plug type | Type C |
|---|
Software
| Windows operating systems supported | Yes |
|---|
| Mac operating systems supported | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | -1 - 41 °C |
|---|
| Storage temperature (T-T) | -17 - 68 °C |
|---|
| Operating relative humidity (H-H) | 0 - 85 % |
|---|
| Storage relative humidity (H-H) | 0 - 85 % |
|---|
Sustainability
| Sustainability compliance | Yes |
|---|
Weight & dimensions
| Width | 344 mm |
|---|
| Depth | 23.56 mm |
|---|
| Height | 81.39 mm |
|---|
| Weight | 463 g |
|---|
Packaging data
| Quantity per pack | 1 pc(s) |
|---|
| Package width | 88.3 mm |
|---|
| Package depth | 358 mm |
|---|
| Package height | 28 mm |
|---|
| Package weight | 574 g |
|---|
Packaging content
| Quick start guide | Yes |
|---|
Technical details
| Master (outer) case GTIN (EAN/UPC) | 24712795088186 |
|---|
| Compliance certificates | CE,REACH,RoHS |
|---|
| Warranty period | 2 year(s) |
|---|
Logistics data
| Master (outer) case width | 150 mm |
|---|
| Master (outer) case height | 123 mm |
|---|
| Master (outer) case length | 398 mm |
|---|
| Export Control Classification Number (ECCN) | EAR99 |
|---|
| Master (outer) case net weight | 2800 g |
|---|
| Products per master (outer) case | 4 pc(s) |
|---|
| Products per shipping (inner) case | 2 pc(s) |
|---|
| Shipping (inner) case width | 66 mm |
|---|
| Shipping (inner) case length | 380 mm |
|---|
| Shipping (inner) case height | 99 mm |
|---|
| Shipping (inner) case net weight | 1200 g |
|---|
Other features
| Cable length | 0.5 m |
|---|
