Produktbeskrivning

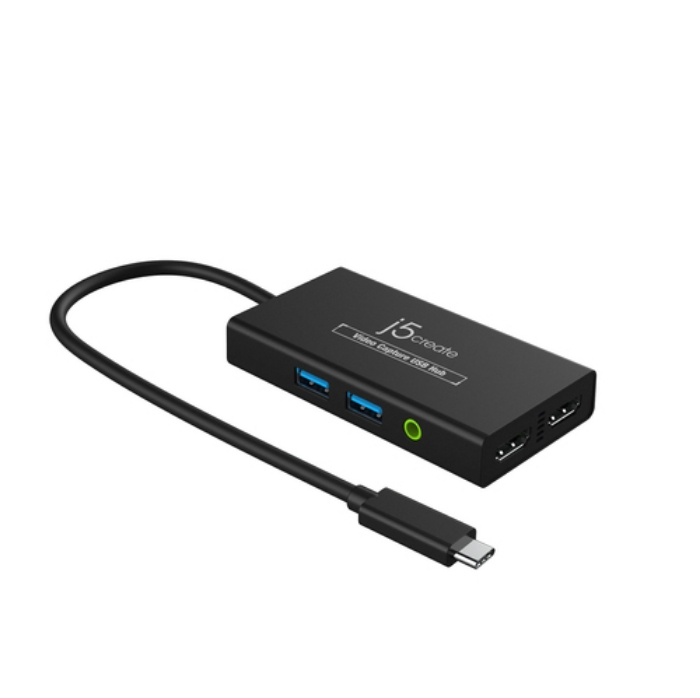

The Video Capture USB™ Hub is a dual-purpose device that combines an HDMI™ capture card with a USB-C® hub. With the 1080p video capture and 4K USB-C® display, as well as Power Delivery 3.0, you can stream in UHD without interruptions while charging your connected device. It also includes two SuperSpeed USB™ 5Gbps ports for further peripheral connectivity. The compact and lightweight design makes this video capture hub perfect for mobile streaming. When not used for streaming, it acts as a standard USB-C® hub, allowing you to add two additional USB™ peripherals and a 4K HDMI™ display. It also supports upstream charging to keep your laptop powered while in use.



Viktiga egenskaper

j5create JVA01-N Video Capture USB™ Hub. Product colour: Black, Host interface: USB 3.2 Gen 1 (3.1 Gen 1), Video capture resolution (max): 1920 x 1080 pixels. Supported resolutions: HDMI™ In: 3840 x 2160 USB-C® display: 3840 x 2160 Capture/Record: 1920 x 1080, Maximum refresh rate: 30 Hz. USB connector type: USB Type-A, USB version: 3.2 Gen 1 (3.1 Gen 1). Power supply type: USB, Input voltage: 20 V, Input current: 3 A. Other operating systems supported: Android



Teknisk specifikation

Product colour	Black
Internal	No
Host interface	USB 3.2 Gen 1 (3.1 Gen 1)
Video capture resolution (max)	1920 x 1080 pixels
Memory card slot(s)	No
Plug and Play	Yes
High Dynamic Range (HDR) supported	No
Housing material	Plastic
Cable length	0.3 m
Capturing from	Digital camera,Game console,PC
Country of origin	Taiwan
Compatible products	Available USB-C® port that supports DisplayPort™ alt mode and USB™ Power Delivery 2.0 (USB™ 3.2 is recommended).

Analog signal format system	Not supported
Supported resolutions	HDMI™ In: 3840 x 2160 USB-C® display: 3840 x 2160 Capture/Record: 1920 x 1080
Maximum refresh rate	30 Hz

USB port	Yes
USB connector type	USB Type-A
USB version	3.2 Gen 1 (3.1 Gen 1)
USB ports quantity	2
HDMI ports quantity	2
HDMI in	1
Number of HDMI outputs	1
Headphone outputs	1

Power supply type	USB
Input voltage	20 V
Input current	3 A
Output voltage	20 V
Output current	3 A

Windows operating systems supported	Yes
Mac compatibility	Yes
Mac operating systems supported	Yes
Other operating systems supported	Android

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 65 °C
Operating relative humidity (H-H)	0 - 80 %
Storage relative humidity (H-H)	0 - 85 %

Warranty period	2 year(s)

Width	50.5 mm
Depth	96.5 mm
Height	15 mm
Weight	69 g

Package weight	148.2 g
Package depth	125 mm
Package width	193 mm
Package height	22.5 mm
Package type	Box

Quick installation guide	Yes
Manual	Yes
Quantity	1
