Produktbeskrivning

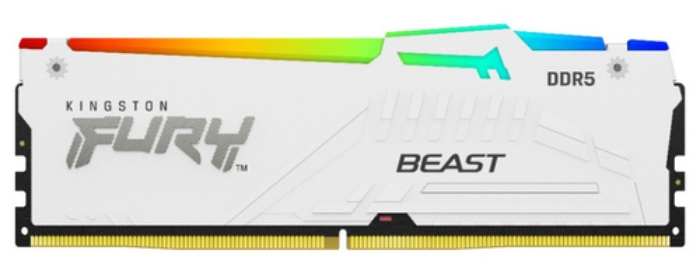

Kingston FURY KF552C40BWAK2-16 is a kit of two 1G x 64-bit (8GB) DDR5-5200 CL40 SDRAM (Synchronous DRAM) 1Rx16, memory module, based on four 1G x 16-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 16GB. Each module has been tested to run at DDR5-5200 at a low latency timing of 40-40-40 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:



Viktiga egenskaper

Kingston Technology KF552C40BWAK2-16. Component for: PC, Internal memory: 16 GB, Memory layout (modules x size): 2 x 8 GB, Internal memory type: DDR5, Memory form factor: 288-pin DIMM, CAS latency: 40, ECC



Teknisk specifikation

Internal memory	16 GB
Memory layout (modules x size)	2 x 8 GB
Internal memory type	DDR5
Component for	PC
Memory form factor	288-pin DIMM
ECC	Yes
On-Die ECC	Yes
CAS latency	40
Memory data transfer rate	5200 MT/s
Memory voltage	1.25 V
Intel Extreme Memory Profile (XMP)	Yes
Intel Extreme Memory Profile (XMP) version	3.0
Lead plating	Gold

Operating temperature (T-T)	0 - 85 °C
Storage temperature (T-T)	-55 - 100 °C

Width	133.35 mm
Depth	7.11 mm
Height	42.23 mm
