Produktbeskrivning

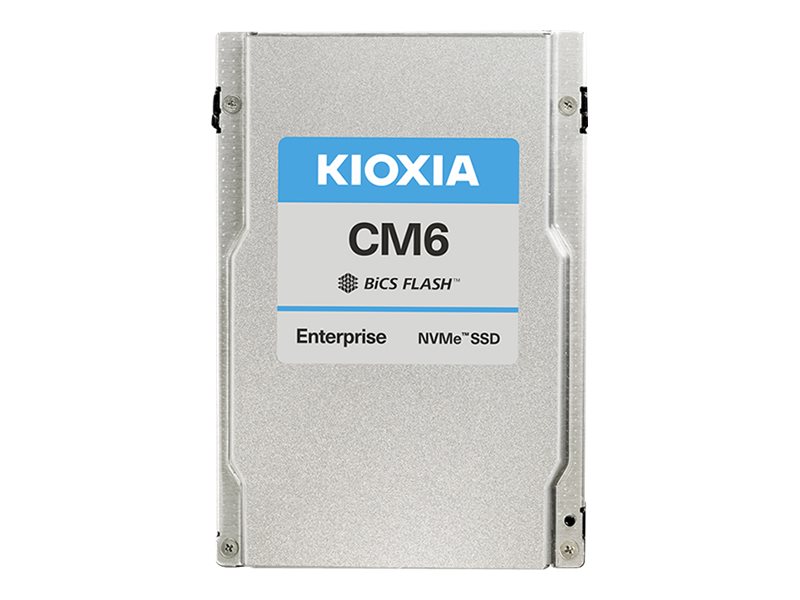

The CM6-R series is a read-intensive SSD that is optimized to support a broad range of enterprise applications and associated workloads, including business intelligence, online transaction processing, and software defined storage and virtualization. Built on PCIe 4.0 and NVMe 1.4 technology, the CM6 Series SSDs deliver excellent performance up to 1.4M IOPS (random read), with maximum power consumption of 25 W.
Featuring KIOXIA Corporation's 96-layer BiCS FLASH 3D TLC memory, the CM6-R Series of enterprise NVMe SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and support large storage capacities, making them ideally suited for read-intensive enterprise applications.
Egenskaper
● PCIe 4.0, NVMe 1.4 specification compliant
● Form factor: 2.5-inch, 15 mm Z-height
● Proprietary KIOXIA architecture: controller, firmware and BiCS FLASHTM 96-layer 3D TLC memory
● Dual-port design for high availability applications
● 6th generation, two-die failure recovery and double parity protection
● High performance with lower power consumption
● Power loss protection (PLP) and end-to-end data protection
● Suited for 24 x 7 enterprise workloads
● Six power mode settings
Teknisk specifikation
Allmänt
| Typ av enhet | SSD-enhet - inbyggd |
|---|
| Kapacitet | 15360 GB |
|---|
| NAND-flashminnestyp | 3D triple-level cell (TLC) |
|---|
| Formfaktor | 2.5" |
|---|
| Gränssnitt | U.3 PCIe 4.0 (NVMe) |
|---|
| Egenskaper | Online Transaction Processing (OLTP), Dual Port, End-to-end-dataskydd, Enterprise, Strömförlustskydd (PLP), 96-layer 3D BiCS FLASH, NVM Express (NVMe) 1.4 |
|---|
| Bredd | 69.85 mm |
|---|
| Djup | 100.45 mm |
|---|
| Höjd | 15 mm |
|---|
| Vikt | 130 g |
|---|
Prestanda
| Antal skrivningar per dag (DWPD) | 1 |
|---|
| Drivenhetsklass | Enterprise, Read Intensive |
|---|
| Intern datafrekvens | 6900 MBps (läs)/ 4000 MBps (skriv) |
|---|
| 4 KB Random Read | 1400000 IOPS |
|---|
| 4 KB Random Write | 170000 IOPS |
|---|
Pålitlighet
| MTBF (genomsnittstid mellan fel) | 2,500,000 timmar |
|---|
| Dygnet-runt drift | Ja |
|---|
Expansion och anslutningar
| Gränssnitt | 2 x U.3 PCIe 4.0 (NVMe) |
|---|
| Kompatibelt fack | 2.5" |
|---|
Strömtillförsel
| Strömkonsumtion | 21 Watt (aktiv) |
|---|
Tillverkarens garanti
| Service och support | Begränsad garanti - 5 år |
|---|
Miljöparametrar
| Min temperatur vid drift | 0 °C |
|---|
| Max temperatur vid drift | 70 °C |
|---|
| Luftfuktighet vid drift | 5 - 95% |
|---|
| Stöttolerans (vid drift) | 1000 g @ 0,5 ms |
|---|
| Vibrationstolerans (vid drift) | 2.17 g @ 5-800 Hz |
|---|
