Produktbeskrivning

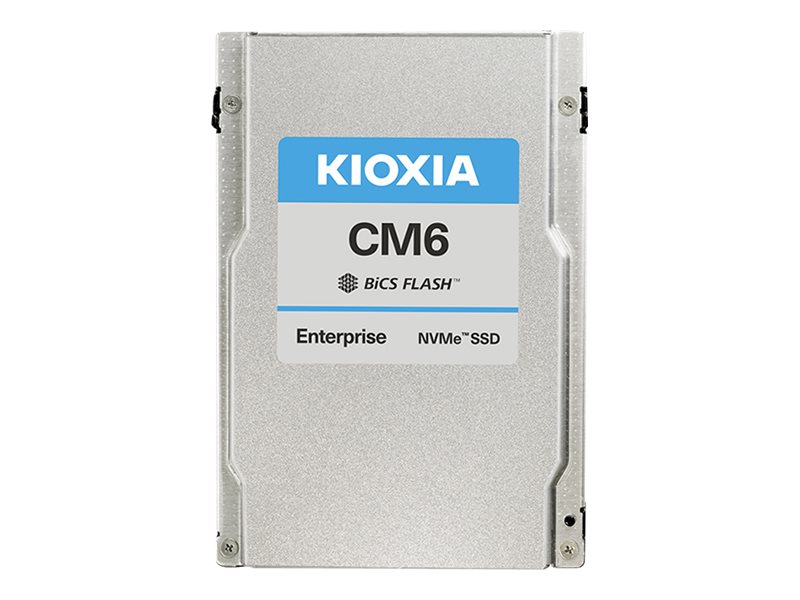

The CM6-V Series is a mixed-use SSD that is optimized to support a broad range of enterprise applications and associated workloads, including high-performance computing, online transaction processing, IoT and edge computing, media streaming. Built on PCIe 4.0 and NVMe 1.4 technology, the CM6 Series SSDs deliver excellent performance.
Featuring KIOXIA Corporation's 96-layer BiCS FLASH 3D TLC memory, the CM6-V Series enterprise NVMe SSDs deliver 3 DWPD (drive writes per day) of endurance, making them ideally suited for read and write mixed-use enterprise applications.
Egenskaper
● PCIe 4.0, NVMe 1.4 specification compliant
● 2.5-inch form factor
● Proprietary KIOXIA architecture: controller, firmware and BiCS FLASH 96-layer 3D TLC memory
● SFF-TA-1001 conformant (U.3), works with tri-mode controllers and backplanes
● Dual-port design for high availability applications
● 6th generation, two-die failure recovery and double parity protection
● High performance with lower power consumption
● Power loss protection (PLP) and end-to-end data protection
● Suited for 24x7 enterprise workloads
● Six power mode settings
Teknisk specifikation
Allmänt
| Typ av enhet | SSD-enhet - inbyggd |
|---|
| Kapacitet | 3200 GB |
|---|
| NAND-flashminnestyp | 3D triple-level cell (TLC) |
|---|
| Formfaktor | 2.5" |
|---|
| Gränssnitt | U.3 PCIe 4.0 (NVMe) |
|---|
| Egenskaper | Online Transaction Processing (OLTP), Dual Port, End-to-end-dataskydd, Enterprise, Mixed-Use, Strömförlustskydd (PLP), 96-layer 3D BiCS FLASH, NVM Express (NVMe) 1.4 |
|---|
| Bredd | 69.85 mm |
|---|
| Djup | 100.45 mm |
|---|
| Höjd | 15 mm |
|---|
| Vikt | 130 g |
|---|
Prestanda
| Antal skrivningar per dag (DWPD) | 3 |
|---|
| Drivenhetsklass | Enterprise, Mixed Use |
|---|
| Intern datafrekvens | 6900 MBps (läs)/ 4200 MBps (skriv) |
|---|
| 4 KB Random Read | 1400000 IOPS |
|---|
| 4 KB Random Write | 350000 IOPS |
|---|
Pålitlighet
| MTBF (genomsnittstid mellan fel) | 2,500,000 timmar |
|---|
| Dygnet-runt drift | Ja |
|---|
Expansion och anslutningar
| Gränssnitt | 2 x U.3 PCIe 4.0 (NVMe) |
|---|
| Kompatibelt fack | 2.5" |
|---|
Strömtillförsel
| Strömkonsumtion | 19 Watt (aktiv) |
|---|
Tillverkarens garanti
| Service och support | Begränsad garanti - 5 år |
|---|
Miljöparametrar
| Min temperatur vid drift | 0 °C |
|---|
| Max temperatur vid drift | 70 °C |
|---|
| Luftfuktighet vid drift | 5 - 95% |
|---|
| Stöttolerans (vid drift) | 1000 g @ 0,5 ms |
|---|
| Vibrationstolerans (vid drift) | 2.17 g @ 5-800 Hz |
|---|
