Produktbeskrivning

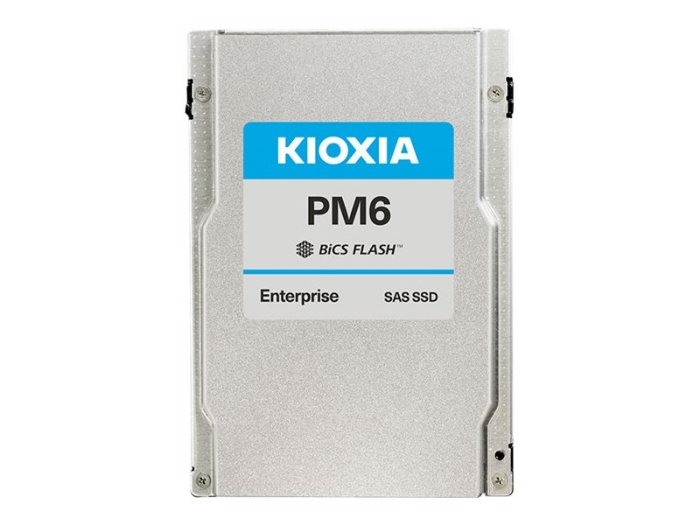

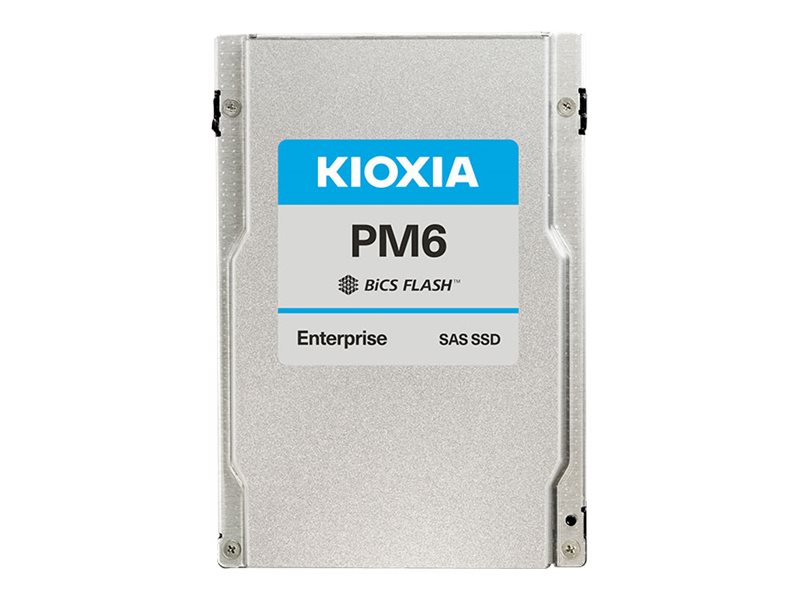

PM6-R Series 24G SAS Enterprise SSD is optimized for read intensive applications, including web services, data warehousing, streaming media and video on demand. The series provides high levels of performance, reliability and endurance, and is designed to minimize total cost of ownership.
Featuring KIOXIA Corporation's 96-layer BiCS FLASH 3D flash memory, this 6th generation enterprise SAS SSD PM6-R Series offers 1 DWPD (Drive Writes Per Day) with capacities up to 30.72 TB.
Egenskaper
● 24G SAS interface with single/dual-port support
● Capacities from 960 GB to 30.72 TB
● T10 Multi-Stream Write support
● Up to 595K random read IOPS (4 KiB) in dual-port mode
● 2.5-inch form factor, 15 mm Z-height
● 1 DWPD with 100 % Random Write Workload
● Power Loss Protection and End-to-End Data Protection, including T10 DIF
● Pin-3 Power Disable Support
● Sanitize Instant Erase (SIE) option
● Self-Encrypting (SED) option
● Self-Encrypting (SED), FIPS 140-2 validated option
Teknisk specifikation
Allmänt
Typ av enhet | SSD-enhet - inbyggd |
Kapacitet | 7680 GB |
NAND-flashminnestyp | 3D triple-level cell (TLC) |
Formfaktor | 2.5" |
Gränssnitt | SAS 22.5Gb/s |
Egenskaper | Dual Port, End-to-end-dataskydd, T10 Data Integrity Field (DIF), Read-Intensive Endurance, Enterprise, Multi-Stream Write, Strömförlustskydd (PLP), Power Disable Pin (Pin3), 96-layer 3D BiCS FLASH |
Bredd | 69.85 mm |
Djup | 100.45 mm |
Höjd | 15 mm |
Vikt | 130 g |
Prestanda
Antal skrivningar per dag (DWPD) | 1 |
Hårddiskens överföringshastighet | 2.25 GBps (extern) |
Intern datafrekvens | 4150 MBps (läs)/ 3700 MBps (skriv) |
4 KB Random Read | 595000 IOPS |
4 KB Random Write | 155000 IOPS |
Pålitlighet
MTBF (genomsnittstid mellan fel) | 2,500,000 timmar |
Expansion och anslutningar
Gränssnitt | 1 x SAS 22.5Gb/s |
Kompatibelt fack | 2.5" |
Strömtillförsel
Strömkonsumtion | 5 Watt (typisk) |
Tillverkarens garanti
Service och support | Begränsad garanti - 5 år |
Miljöparametrar
Min temperatur vid drift | 0 °C |
Max temperatur vid drift | 70 °C |
Luftfuktighet vid drift | 5 - 95 % (icke-kondenserande) |
Stöttolerans (vid drift) | 1000 g @ 0,5 ms |
Vibrationstolerans (vid drift) | 2.17 g @ 5-800 Hz |
