Produktbeskrivning

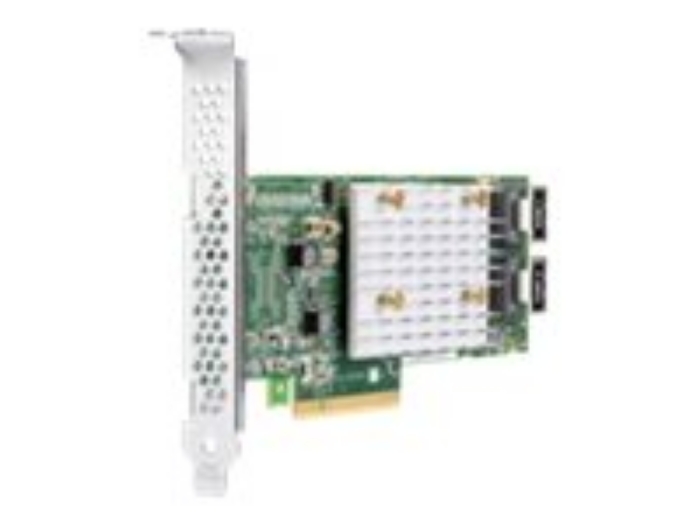

The HPE Smart Array E208i-p SR Gen10 Controller, supporting 12Gb/s SAS and PCIe 3.0, is an ideal cost-effective solution for RAID 0, 1, 5, and 10 and Software Defined Storage solutions. This controller operates in Mixed Mode which combines RAID and HBA operations simultaneously. It has eight internal SAS lanes, allowing connection to SAS or SATA drives, and provides enterprise-class reliability, security and efficiency needed to address your evolving data storage needs. This controller offers enhanced security by encrypting data-at-rest on any drive with HPE Smart Array SR Secure Encryption.



Egenskaper

● Storage interface(SAS/SATA)
● PCI Express 3.0 x8 link
● RAID 0, 1, 5, 10
● Mixed Mode(RAID logic drives and HBA physical drives simultaneously)
● Legacy and UEFI boot operation
● UEFI System Utilities(storage configuration)
● Up to 238 physical drives
● Up to 64 logical drives
● HPE Smart Array SR Secure Encryption(optional license)
● HPE SSD Smart Path
● Rapid Parity Initialization(RPI)
● Rapid rebuild
● Drive Sanitize
● Performance Optimization-Degraded Reads and Read Coalescing
● Power efficiency
● Seamless upgrades from HPE Smart Array Software RAID
● Seamless upgrades to HPE Smart Array P-class Controllers



Teknisk specifikation

Typ av enhet	Kontrollerkort (RAID) - instickskort
Värdbuss	PCIe 3.0 x8

Gränssnitt	SATA 6Gb/s / SAS 12Gb/s
Dataöverföringshastighet	12 Gbit/s
Enheter som stöds	Hårddisk, disk array (RAID)
Antal kanaler	8
RAID-nivå	RAID 0, RAID 1, RAID 5, RAID 10
Maximalt antal LUN	64

Gränssnitt	2 x SATA 6Gb/s / SAS 12Gb/s (intern)

Operativsystem erfordras	Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, Oracle Solaris, Citrix XenServer, Oracle Linux, ClearOS, VMware vSphere (ESXi), Microsoft Windows Hyper-V Server

Designat för

HPE Apollo 4200 Gen10 384TB 25Gb Capacity Server for Cohesity DataPlatform, 4200 Gen10 384TB Capacity Server for Cohesity DataPlatform, 4200 Gen10 for HPE Ezmeral Container Platform, 4200 Gen10 for HPE Ezmeral Tracking HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10, Medium Solution with HPE ProLiant DL360 Gen10, Small Solution with HPE ProLiant DL360 Gen10 HPE ProLiant DL160 Gen10 Base, DL160 Gen10 Entry, DL160 Gen10 SMB, DL180 Gen10 Entry, DL325 Gen10 Base, DL325 Gen10 Plus V2 Base, DL325 Gen10 Plus V2 Performance, DL325 Gen10 Solution, DL345 Gen10 Plus Base, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Network Choice, DL360 Gen10 Performance for Cohesity DataPlatform, DL360 Gen10 Plus, DL360 Gen10 Plus All-NVMe Server for Software Defined Storage, DL360 Gen10 Plus for Weka Base Tracking, DL360 Gen10 Plus Network Choice, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL365 Gen10 Plus, DL380 Gen10 48TB Server for Cohesity DataPlatform, DL380 Gen10 96TB Server for Cohesity DataPlatform, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Plus, DL380 Gen10 Plus Network Choice, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL388 Gen10 Network Choice, DL560 Gen10 for SAP HANA Compute Block, MicroServer Gen10 Plus Entry, MicroServer Gen10 Plus Performance, MicroServer Gen10 Plus SMB, XL170r Gen10 24TB Server for Cohesity DataPlatform, XL170r Gen10 36TB Add-on Server for Cohesity DataPlatform, XL170r Gen10 Server for BlueData EPIC, XL190r Gen10 for HPE Ezmeral Container Platform, XL220n Gen10 Plus, XL225n Gen10 Plus 1U Node, XL645d Gen10 Plus
