Produktbeskrivning

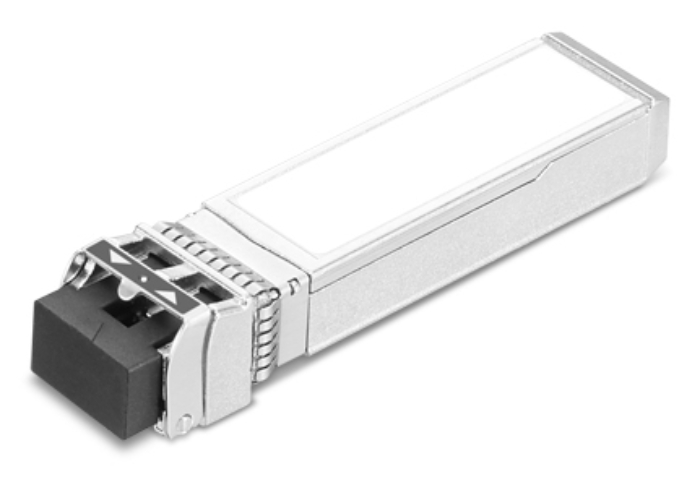

The ThinkStation Dual Rate 10G/25G SR SFP28 Transceiver is a dual rate optical module that provides up to 25 Gigabit per second bi-directional links over multimode fiber.This hot-pluggable transceiver with SFP (Small Form Factor Pluggable)28 footprint and 850nm Oxide VCSEL laser transmitter truely extends the range of your network.



Viktiga egenskaper

Lenovo 4XC1S00743. SFP transceiver type: Fiber optic, Maximum data transfer rate: 25000 Mbit/s, Interface type: SFP28. Product colour: Stainless steel. Compliance certificates: RoHS, Certification: BSMI EMC FCC sDoC CE EMC. Width: 566 mm, Depth: 85 mm, Height: 137 mm. Package width: 135 mm, Package depth: 135 mm, Package height: 35 mm



Teknisk specifikation

SFP transceiver type	Fiber optic
Maximum data transfer rate	25000 Mbit/s
Interface type	SFP28
Fiber cable diameters supported (core/cladding)	50/125 µm
Maximum transfer distance	100 m
Wavelength	850 nm
Digital Diagnostics Monitoring (DDM)	Yes

Product colour	Stainless steel
Hot-Plug support	Yes
Certification	BSMI EMC FCC sDoC CE EMC

Operating temperature (T-T)	0 - 70 °C
Operating relative humidity (H-H)	5 - 95 %

Width	566 mm
Depth	85 mm
Height	137 mm

Package width	135 mm
Package depth	135 mm
Package height	35 mm
Package weight	185 g
Package type	Box

Compliance certificates	RoHS
