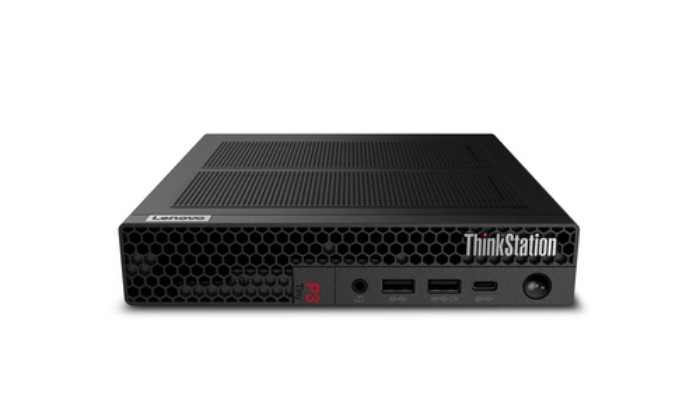

LENOVO THINKSTATION P3 TINY GEN 2
Big Performance From a Tiny Workstation
Engineered to go where others can’t, the ThinkStation P3 Tiny Gen 2 workstation offers uncompromising performance while being 96% smaller than a traditional desktop. At 1L in volume, the industry’s smallest workstation combines the power of Intel® Core™ Ultra (Series 2) with Intel vPro® processors and NVIDIA RTX™ graphics in a simple, efficient design.

Accelerate AI Workflows with Integrated NPU and Professional Graphics
The built-in NPU, CPU, and iGPU deliver up to 36 TOPS for AI inferencing, while NVIDIA RTX™ A1000 graphics adds another 108 TOPS for advanced ray tracing and AI acceleration to enhance compute tasks. Together, they provide a dependable solution for tasks like computer vision, real-time data insights, and more — right at your desk or on location.

CREDIBILITY & COLLABORATION
Sustainability
Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.



Viktiga egenskaper

Lenovo ThinkStation P3 Tiny Gen 2. Processor family: Intel Core Ultra 7, Processor model: 265. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics, Discrete graphics card model: NVIDIA RTX A400. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 330 W. Chassis type: Mini PC. Product type: Workstation. Product colour: Black



Teknisk specifikation

Processor manufacturer	Intel
Processor family	Intel Core Ultra 7
Processor generation	Intel Core Ultra (Series 2)
Processor model	265
Processor cores	20
Processor threads	20
Processor boost frequency	5.3 GHz
Performance cores	8
Efficient cores	12
Performance-core Max Turbo Frequency	5.2 GHz
Efficient-core Max Turbo Frequency	4.6 GHz
Performance-core base frequency	2.4 GHz
Efficient-core base frequency	1.8 GHz
Processor socket	LGA 1851 (Socket V1)
Processor cache	30 MB
Processor cache type	Smart Cache
Processor base power	65 W
Maximum turbo power	182 W

Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML,OpenVINO,Windows ML,ONNX RT,WebNN
Total processor performance up to	33 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs

Internal memory	16 GB
Maximum internal memory	128 GB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	1 x 16 GB
Memory slots	2x SO-DIMM
Memory clock speed	5600 MHz
Non-ECC	Yes
Memory channels	Single-channel

Total storage capacity	512 GB
Optical drive type	No
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)

Discrete graphics card	Yes
On-board graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA RTX A400
Discrete graphics card memory	4 GB
Discrete graphics memory type	GDDR6
Number of discrete graphics cards	1
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics
Graphics card Mini DisplayPort ports quantity	4

Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
LAN controller	Intel® I219-LM
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 7 BE200
Antenna type	2x2
Bluetooth	Yes
Bluetooth version	5.4

USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 2x2 Type-C ports quantity	1
Thunderbolt 3 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes

Chassis type	Mini PC
Colour name	Black
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black

Product type	Workstation
Motherboard chipset	Intel® Q870
Audio chip	Realtek ALC233VB
Audio system	High Definition Audio
Trusted Platform Module (TPM)	Yes

Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	ENG,DAN,FIN,SWE,NOR

Power supply	330 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50/60 Hz

Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	10 - 90 %
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12192 m

Certification	MIL-STD-810H

Width	179 mm
Depth	182.9 mm
Height	37 mm
Weight	1400 g

Display included	No
Mouse connectivity	Wired
Mouse included	Yes
Keyboard connectivity	Wired
Keyboard included	Yes
