Produktbeskrivning

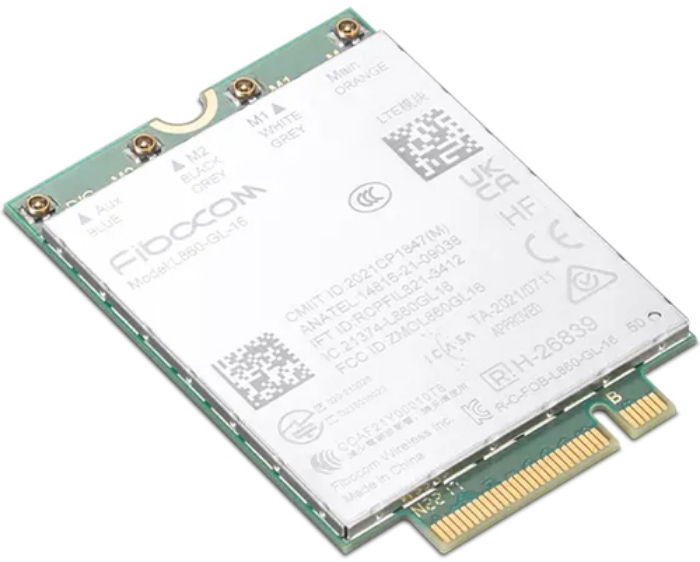

ThinkPad Fibocom L860-GL-16 4G LTE CAT16 M.2 WWAN Module is a wireless communication module with receive diversity. It helps provide data connectivity and network with PCIe Gen2 M.2 interface. With downlink speed up to 1Gbps and uplink speed up to 150 Mbps, the 4G LTE CAT16 WWAN module enhances the network reliability and availability of your ThinkPad, and provides a great cellular solution for travelers to sustain mobility while using PC devices.



Viktiga egenskaper

Lenovo Fibocom L860-GL-16 4G. Internal. Connectivity technology: Wireless, Host interface: M.2, Interface: WWAN. Maximum data transfer rate: 1000 Mbit/s



Teknisk specifikation

Connectivity technology	Wireless
Host interface	M.2
Interface	WWAN

Maximum data transfer rate	1000 Mbit/s
4G standard	LTE-TDD & LTE-FDD
Mobile network generation	4G
MU-MIMO	Yes

Internal	Yes
Component for	Laptop
Antenna design	Internal
Certification	CE for EU, KCC for Korea, IFT for Mexico, NTC for Philippines, ICASA for South Africa, NCC for Taiwan.
Compatible products	X1 Carbon Gen 11

Windows operating systems supported	Windows 11

Operating temperature (T-T)	-10 - 55 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95 %

Width	30 mm
Depth	42 mm
Height	2.3 mm
Weight	6.2 g

Package width	53 mm
Package depth	144 mm
Package height	177 mm
Package weight	30 g
