Produktbeskrivning

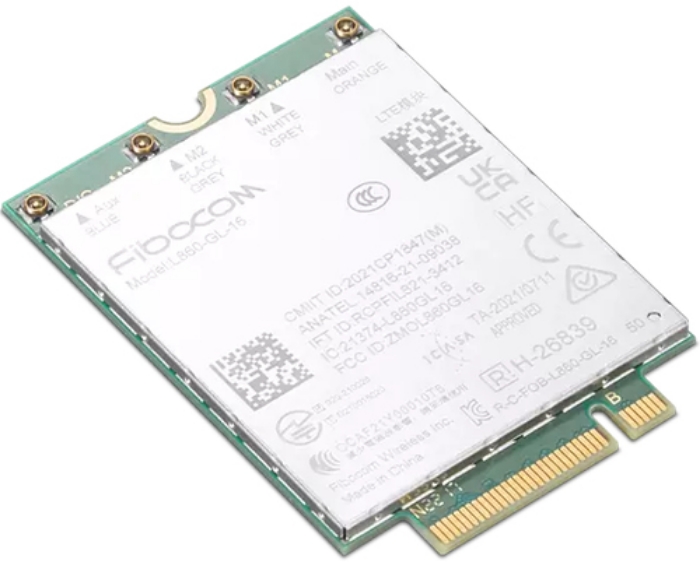

ThinkPad Fibocom L860 CAT16 4G LTE WWAN Module is a wireless communication module with receive diversity. It helps provide data connectivity and network with PCIe Gen2 M.2 interface. With downlink speed up to 1 Gbps and uplink speed up to 150 Mbps, the 4G LTE CAT16 WWAN module enhances the network reliability and availability of your ThinkPad, and provides a great cellular solution for travelers to sustain mobility while using PC devices.



Viktiga egenskaper

Lenovo 4XC1K20994. Internal. Connectivity technology: Wireless, Host interface: M.2, Interface: WWAN. Maximum data transfer rate: 1000 Mbit/s



Teknisk specifikation

Connectivity technology	Wireless
Host interface	M.2
Interface	WWAN

Maximum data transfer rate	1000 Mbit/s
Mobile network generation	4G

Internal	Yes
Component for	PC/Laptop
Certification	CE for EU, KCC for Korea, IFT for Mexico, NTC for Philippines, ICASA for South Africa, NCC for Taiwan.

Windows operating systems supported	Windows 10,Windows 11

Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	5 - 95 %

Width	30 mm
Depth	42 mm
Height	2.3 mm
Weight	6.2 g

Package width	53 mm
Package depth	144 mm
Package height	177 mm
Package weight	30 g
