Produktbeskrivning

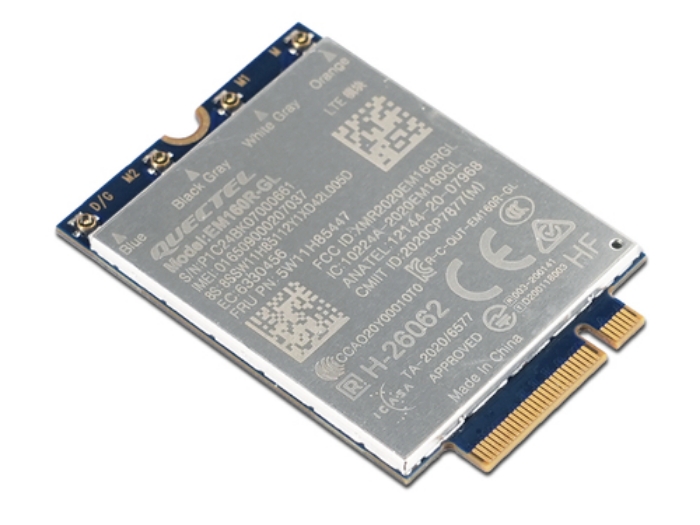

ThinkPad Quectel EM160R-GL 4G LTE-A Cat 16 M.2 WWAN Module for X1 Carbon Gen 12/P16v Gen 2 is an LTE advanced category 16 module. Adopting the 3GPP Release 14 technology, it delivers speed of 1.0 Gbps downlink and 150 Mbps uplink peak data rates, and is designed in M.2 form factor.



Viktiga egenskaper

Lenovo 4XC1Q24436. Internal. Connectivity technology: Wireless, Host interface: M.2, Interface: WWAN. Maximum data transfer rate: 1000 Mbit/s



Teknisk specifikation

Connectivity technology	Wireless
Host interface	M.2
Interface	WWAN

Maximum data transfer rate	1000 Mbit/s
Mobile network generation	4G

Internal	Yes
Component for	Laptop
Antenna design	Internal
Certification	NCC/ANATEL/SRRC/NAL/CCC/CE/FCC/IC/RCM/PTCRB/GCF/KC/JATE/TELEC/NBTC/IMDA/ICASA
Compatible products	ThinkPad P14 Series-P14s AMD G5 ThinkPad P16 Series-P16v G2 ThinkPad X1 series-X1 Carbon G12

Windows operating systems supported	Windows 10,Windows 11

Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 90 °C
Operating relative humidity (H-H)	5 - 95 %

Width	42 mm
Depth	30 mm
Height	2.3 mm
Weight	6.8 g

Package width	53 mm
Package depth	144 mm
Package height	177 mm
Package weight	30 g
