Produktbeskrivning

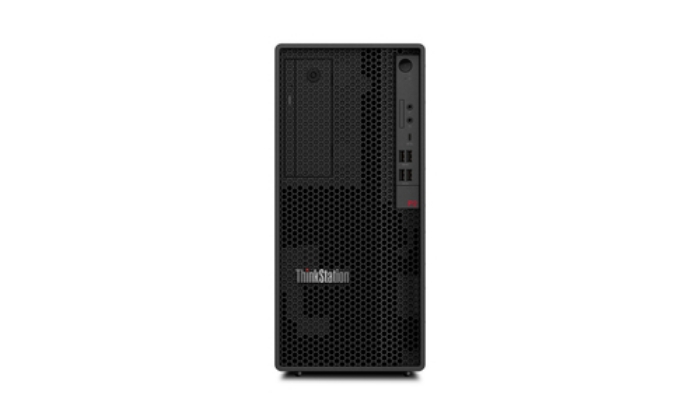

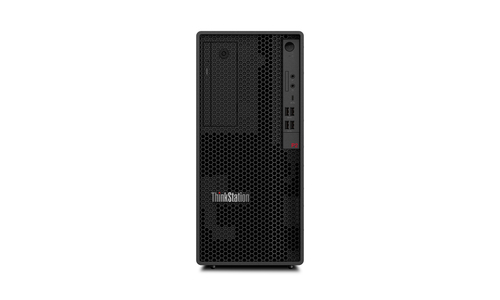

LENOVO THINKSTATION P2 TOWER GEN 2
Workstation Power at Desktop Value
Workstation performance is within reach with the Lenovo ThinkStation P2 Tower Gen 2. Intel® Core™ Ultra processors with an integrated neural processing unit (NPU) and NVIDIA RTX™ Ada Generation graphics set a new standard in the entry space while offering outstanding value. This workstation is ideal for entry-level CAD, product design, STEAM, and beyond.

POTENT COMBINED AI ACCELERATION
Accelerate Your Workflows with Advanced AI
Push your creative boundaries with next-generation AI – up to 36 TOPS from the system and integrated NPU, plus 192 TOPS from NVIDIA RTX™ Ada graphics. From simulation and modeling to automation, the ThinkStation P2 Tower Gen 2 empowers teams to streamline tasks and innovate faster.

CREDIBILITY & COLLABORATION
Sustainability
Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.



Viktiga egenskaper

Lenovo ThinkStation P2 Tower Gen 2. Processor family: Intel Core Ultra 5, Processor model: 245K. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 512 GB, Storage media: SSD, Card reader integrated. On-board graphics card model: Intel® Graphics. Operating system installed: Windows 11 Pro. Power supply: 500 W. Chassis type: Tower. Product type: Workstation. Weight: 9.67 kg. Product colour: Black



Teknisk specifikation

Processor manufacturer	Intel
Processor family	Intel Core Ultra 5
Processor generation	Intel Core Ultra (Series 2)
Processor model	245K
Processor cores	14
Processor threads	14
Processor boost frequency	5.2 GHz
Performance cores	6
Efficient cores	8
Performance-core Max Turbo Frequency	5.2 GHz
Efficient-core Max Turbo Frequency	4.6 GHz
Performance-core base frequency	4.2 GHz
Efficient-core base frequency	3.6 GHz
Processor cache	24 MB
Processor cache type	Smart Cache
Number of processors installed	1
Maximum turbo power	159 W
Processor base power	125 W

Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML,OpenVINO,Windows ML,ONNX RT,WebNN
Total processor performance up to	30 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs

Internal memory	16 GB
Maximum internal memory	128 GB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	1 x 16 GB
Memory slots	4x DIMM
Memory clock speed	5600 MHz
Non-ECC	Yes
Memory channels	Dual-channel

Total storage capacity	512 GB
Optical drive type	No
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Card reader integrated	Yes
Compatible memory cards	SD

Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics

Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
LAN controller	Intel® I219-LM
Wi-Fi	No

USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 2x2 Type-C ports quantity	1
Thunderbolt 3 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	2
DisplayPort version	1.4
Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
Line-out	Yes
Combo headphone/mic port	Yes

Chassis type	Tower
Volume	17 L
Placement supported	Vertical
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black

Product type	Workstation
Motherboard chipset	Intel W880
Audio chip	Realtek ALC623-CG
Audio system	High Definition Audio
Built-in speaker(s)	Yes
Number of speakers	1
Password protection	Yes
Password protection type	BIOS,Power on
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Operating system installed	Windows 11 Pro
Operating system language	ENG,SWE,FIN,DAN,NOR

Power supply	500 W
80 PLUS certification	80 PLUS Platinum

Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	10 - 90 %
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12192 m

Compliance certificates	RoHS
Certification	TCO Certified 10.0

Width	170 mm
Depth	315.35 mm
Height	376 mm
Weight	9670 g

Display included	No
Mouse included	No
Keyboard included	Yes
Keyboard connectivity	Wired
